Designing axial loads for road construction involves several steps to ensure the pavement structure can withstand the expected traffic loads over its lifespan. Here’s an overview of the process:

1. Traffic Analysis
- Traffic Volume: Determine the average daily traffic (ADT) and the percentage of heavy vehicles.
- Load Spectra: Analyze the types and weights of vehicles using the road.
- Growth Rate: Estimate traffic growth over the design life of the road.

2. Axle Load Distribution
- Axle Configurations: Identify common axle configurations (e.g., single axle, tandem axle).
- Axle Load Spectrum: Develop axle load distributions from weigh-in-motion data or traffic studies.

3. Equivalent Single Axle Load (ESAL)
- Convert different axle loads to a standard load (usually an 18,000-pound single axle load) to simplify calculations.
- Use the ESAL concept to account for the damaging effect of different axle loads

4. Material Properties

- Determine the properties of materials to be used in the pavement structure, including subgrade, base, and surface materials.
- Laboratory testing for properties like strength, stiffness, and durability.

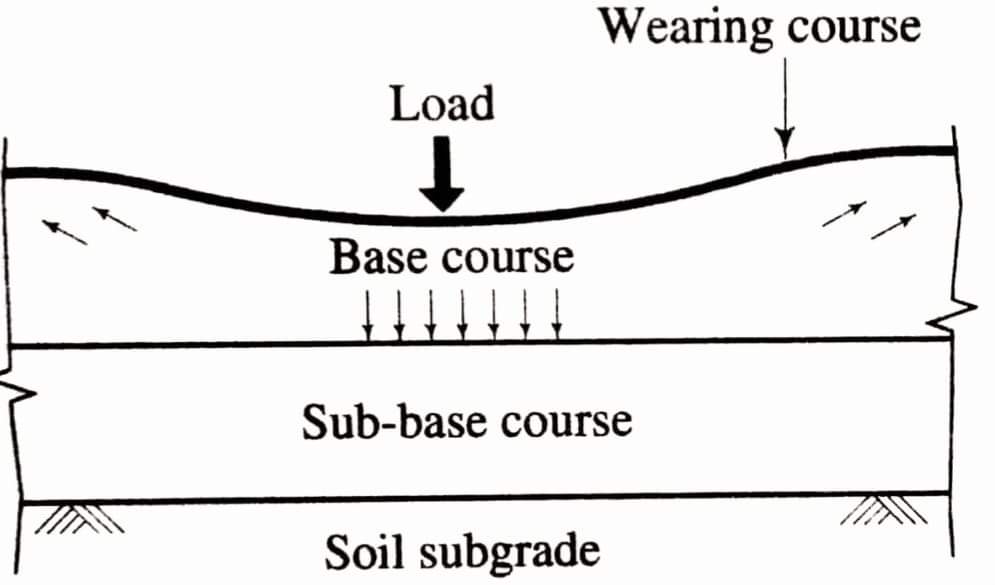

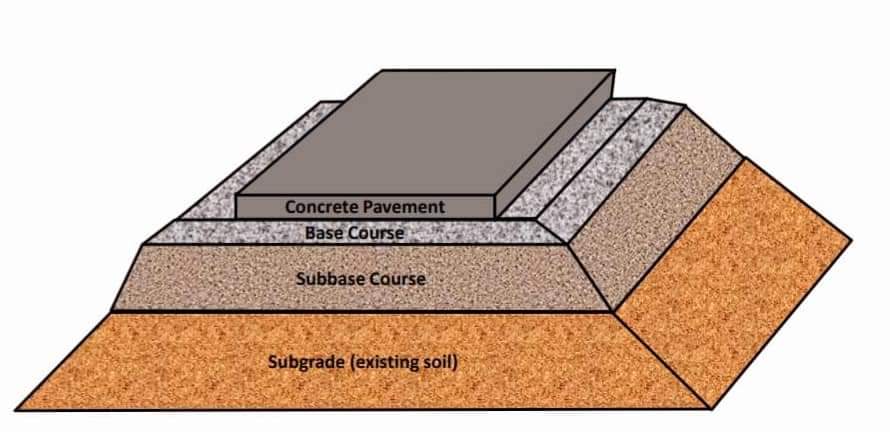

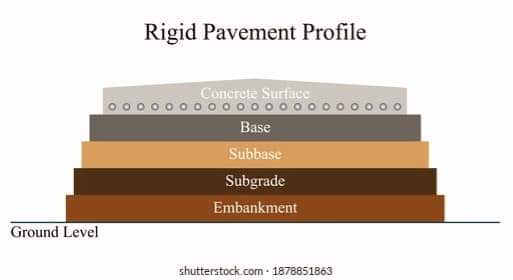

5. Pavement Structure Design
- Layer Thickness: Design appropriate thicknesses for each layer of the pavement structure.
- Mechanistic-Empirical Design: Use mechanistic-empirical methods to calculate the required layer thicknesses based on traffic loads and material properties.

6. Design Standards and Guidelines

- Follow national or regional standards and guidelines (e.g., AASHTO in the U.S.) for pavement design.
- Use design software tools recommended by the guidelines to facilitate calculations.

7. Verification and Validation
- Validate the design through field performance data or modeling.
- Conduct simulations or use past performance data to ensure the design meets expected performance criteria.

8. Safety and Environmental Considerations

- Incorporate safety features in the design, such as proper drainage to prevent water damage.
- Consider environmental factors like temperature variations, precipitation, and freeze-thaw cycles.

Example Steps in Detail

1. Traffic Analysis

- Count and Classify Vehicles: Use traffic counters and classification systems to gather data.
- Forecast Future Traffic: Use historical data and growth models to predict future traffic patterns.

2. Axle Load Distribution
- Data Collection: Gather axle load data from weigh-in-motion systems or load surveys.
- Analysis: Analyze the collected data to determine the distribution and frequency of different axle loads.

3. ESAL Calculation

- Load Equivalency Factors (LEF): Use LEFs to convert various axle loads to equivalent single axle loads.
- Summation: Sum the ESALs for the design period to determine the total load the pavement must withstand.

4. Material Characterization
- Testing: Conduct tests like CBR (California Bearing Ratio), resilient modulus, and others to determine material properties.
- Selection: Choose appropriate materials based on test results and local availability.

5. Layer Design
- Initial Thickness Estimates: Use empirical formulas or charts to estimate initial layer thicknesses.
- Refinement: Refine these estimates using mechanistic-empirical methods, which consider stress and strain responses under loading.

6. Guidelines
- AASHTO Guide: Utilize the AASHTO Guide for Design of Pavement Structures.
- Software: Use pavement design software like AASHTOware Pavement ME Design for detailed analysis.

By carefully considering these steps, engineers can design road pavements that are capable of handling the expected axial loads over their intended lifespan, ensuring safety and durability.


Effect of overweight truck
By expert.
Overweight trucks can damage roads due to several factors:

1. Increased Pressure: Heavier trucks exert more pressure on the road surface, causing it to wear out faster. This pressure can lead to cracks, potholes, and other forms of surface damage.

2. Structural Strain: Roads are designed with a certain weight limit in mind. When trucks exceed this limit, it puts additional strain on the road's foundation and structure, leading to quicker degradation.

3. Repetitive Stress: Constant passage of overweight trucks can lead to cumulative damage. Over time, the repeated stress can weaken the road, causing it to deteriorate more quickly.

4. Temperature Sensitivity: In regions with extreme temperatures, overweight trucks can exacerbate the effects of temperature fluctuations on the road, leading to issues like thermal cracking.

5. Maintenance Challenges: Roads damaged by overweight trucks require more frequent and intensive maintenance, which can be costly and time-consuming.

These factors collectively contribute to the accelerated wear and tear of roads when subjected to overweight trucks.

By expert!!

Designing axial loads for road construction involves several steps to ensure the pavement structure can withstand the expected traffic loads over its lifespan. Here’s an overview of the process:

1. Traffic Analysis
- Traffic Volume: Determine the average daily traffic (ADT) and the percentage of heavy vehicles.
- Load Spectra: Analyze the types and weights of vehicles using the road.
- Growth Rate: Estimate traffic growth over the design life of the road.

2. Axle Load Distribution
- Axle Configurations: Identify common axle configurations (e.g., single axle, tandem axle).
- Axle Load Spectrum: Develop axle load distributions from weigh-in-motion data or traffic studies.

3. Equivalent Single Axle Load (ESAL)
- Convert different axle loads to a standard load (usually an 18,000-pound single axle load) to simplify calculations.
- Use the ESAL concept to account for the damaging effect of different axle loads

4. Material Properties
- Determine the properties of materials to be used in the pavement structure, including subgrade, base, and surface materials.
- Laboratory testing for properties like strength, stiffness, and durability.

5. Pavement Structure Design
- Layer Thickness: Design appropriate thicknesses for each layer of the pavement structure.
- Mechanistic-Empirical Design: Use mechanistic-empirical methods to calculate the required layer thicknesses based on traffic loads and material properties.

6. Design Standards and Guidelines
- Follow national or regional standards and guidelines (e.g., AASHTO in the U.S.) for pavement design.
- Use design software tools recommended by the guidelines to facilitate calculations.

7. Verification and Validation
- Validate the design through field performance data or modeling.
- Conduct simulations or use past performance data to ensure the design meets expected performance criteria.

8. Safety and Environmental Considerations
- Incorporate safety features in the design, such as proper drainage to prevent water damage.
- Consider environmental factors like temperature variations, precipitation, and freeze-thaw cycles.

Example Steps in Detail

1. Traffic Analysis

- Count and Classify Vehicles: Use traffic counters and classification systems to gather data.
- Forecast Future Traffic: Use historical data and growth models to predict future traffic patterns.

2. Axle Load Distribution
- Data Collection: Gather axle load data from weigh-in-motion systems or load surveys.
- Analysis: Analyze the collected data to determine the distribution and frequency of different axle loads.

3. ESAL Calculation
- Load Equivalency Factors (LEF): Use LEFs to convert various axle loads to equivalent single axle loads.
- Summation: Sum the ESALs for the design period to determine the total load the pavement must withstand.

4. Material Characterization
- Testing: Conduct tests like CBR (California Bearing Ratio), resilient modulus, and others to determine material properties.
- Selection: Choose appropriate materials based on test results and local availability.

5. Layer Design
- Initial Thickness Estimates: Use empirical formulas or charts to estimate initial layer thicknesses.
- Refinement: Refine these estimates using mechanistic-empirical methods, which consider stress and strain responses under loading.

6. Guidelines
- AASHTO Guide: Utilize the AASHTO Guide for Design of Pavement Structures.
- Software: Use pavement design software like AASHTOware Pavement ME Design for detailed analysis.

By carefully considering these steps, engineers can design road pavements that are capable of handling the expected axial loads over their intended lifespan, ensuring safety and durability.

View attachment 3045023
RUTTING
by expert engineer!:
Rutting occurs in road pavement due to several factors:

1. Heavy Traffic Loads: Repeated weight from vehicles, especially heavy trucks, compresses the pavement layers.

2. Inadequate Compaction: Poor compaction during construction can lead to deformation under load.

3. Weak Subgrade: Insufficient support from the underlying soil allows pavement layers to sink.

4. High Temperatures: Heat softens asphalt, making it more susceptible to deformation.

5. Poor Drainage: Water infiltration weakens the pavement structure.

To prevent rutting, ensure proper design, material selection, and maintenance practices.

By expert!!

Designing axial loads for road construction involves several steps to ensure the pavement structure can withstand the expected traffic loads over its lifespan. Here’s an overview of the process:

1. Traffic Analysis
- Traffic Volume: Determine the average daily traffic (ADT) and the percentage of heavy vehicles.
- Load Spectra: Analyze the types and weights of vehicles using the road.
- Growth Rate: Estimate traffic growth over the design life of the road.

2. Axle Load Distribution
- Axle Configurations: Identify common axle configurations (e.g., single axle, tandem axle).
- Axle Load Spectrum: Develop axle load distributions from weigh-in-motion data or traffic studies.

3. Equivalent Single Axle Load (ESAL)
- Convert different axle loads to a standard load (usually an 18,000-pound single axle load) to simplify calculations.
- Use the ESAL concept to account for the damaging effect of different axle loads

4. Material Properties
- Determine the properties of materials to be used in the pavement structure, including subgrade, base, and surface materials.
- Laboratory testing for properties like strength, stiffness, and durability.

5. Pavement Structure Design
- Layer Thickness: Design appropriate thicknesses for each layer of the pavement structure.
- Mechanistic-Empirical Design: Use mechanistic-empirical methods to calculate the required layer thicknesses based on traffic loads and material properties.

6. Design Standards and Guidelines
- Follow national or regional standards and guidelines (e.g., AASHTO in the U.S.) for pavement design.
- Use design software tools recommended by the guidelines to facilitate calculations.

7. Verification and Validation
- Validate the design through field performance data or modeling.
- Conduct simulations or use past performance data to ensure the design meets expected performance criteria.

8. Safety and Environmental Considerations
- Incorporate safety features in the design, such as proper drainage to prevent water damage.
- Consider environmental factors like temperature variations, precipitation, and freeze-thaw cycles.

Example Steps in Detail

1. Traffic Analysis

- Count and Classify Vehicles: Use traffic counters and classification systems to gather data.
- Forecast Future Traffic: Use historical data and growth models to predict future traffic patterns.

2. Axle Load Distribution
- Data Collection: Gather axle load data from weigh-in-motion systems or load surveys.
- Analysis: Analyze the collected data to determine the distribution and frequency of different axle loads.

3. ESAL Calculation
- Load Equivalency Factors (LEF): Use LEFs to convert various axle loads to equivalent single axle loads.
- Summation: Sum the ESALs for the design period to determine the total load the pavement must withstand.

4. Material Characterization
- Testing: Conduct tests like CBR (California Bearing Ratio), resilient modulus, and others to determine material properties.
- Selection: Choose appropriate materials based on test results and local availability.

5. Layer Design
- Initial Thickness Estimates: Use empirical formulas or charts to estimate initial layer thicknesses.
- Refinement: Refine these estimates using mechanistic-empirical methods, which consider stress and strain responses under loading.

6. Guidelines
- AASHTO Guide: Utilize the AASHTO Guide for Design of Pavement Structures.
- Software: Use pavement design software like AASHTOware Pavement ME Design for detailed analysis.

By carefully considering these steps, engineers can design road pavements that are capable of handling the expected axial loads over their intended lifespan, ensuring safety and durability.

View attachment 3045023
By expert!
RUTTING
by expert engineer!:
Rutting occurs in road pavement due to several factors:

1. Heavy Traffic Loads: Repeated weight from vehicles, especially heavy trucks, compresses the pavement layers.

2. Inadequate Compaction: Poor compaction during construction can lead to deformation under load.

3. Weak Subgrade: Insufficient support from the underlying soil allows pavement layers to sink.

4. High Temperatures: Heat softens asphalt, making it more susceptible to deformation.

5. Poor Drainage: Water infiltration weakens the pavement structure.

To prevent rutting, ensure proper design, material selection, and maintenance practices.View attachment 3054586View attachment 3054587View attachment 3054588View attachment 3054589
By expert!
Road pavement can experience various types of damages, including:

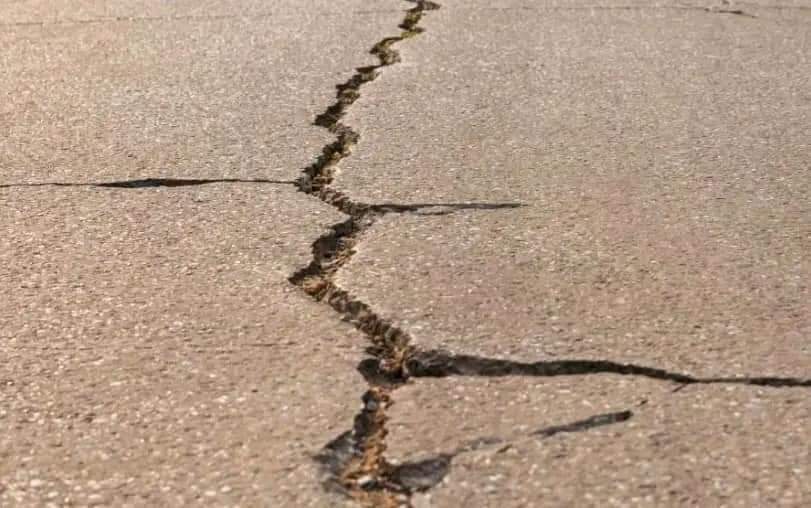

1. Cracking
- Fatigue Cracking: Often called alligator cracking, caused by repeated loading.
- Block Cracking: Forms large rectangular blocks due to temperature changes.
- Longitudinal and Transverse Cracks: Occur parallel or perpendicular to the road centerline.

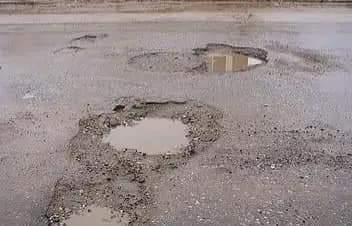

2. Potholes
- Caused by water infiltration and traffic loading.

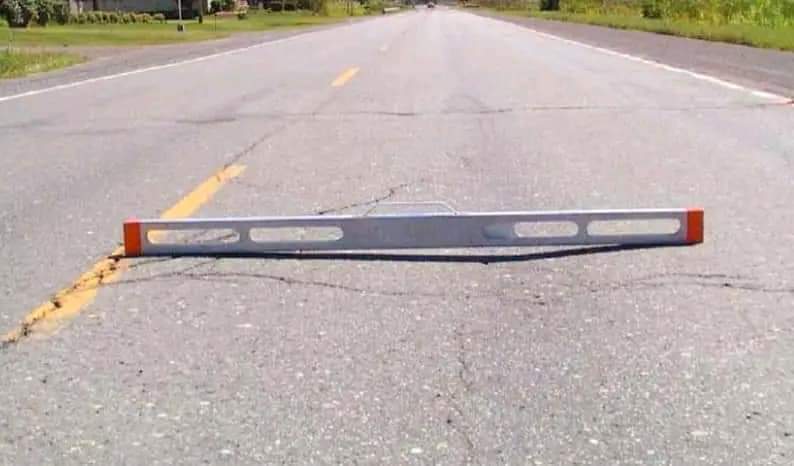

3. Rutting
- Depressions in wheel paths due to inadequate compaction or weak subgrade.

4. Raveling
- Surface aggregate loss, leading to a rough texture.

5. Depressions
- Localized low areas not associated with ruts.

6. Shoving
- Displacement of the pavement surface, often at intersections.

7. Edge Cracking
- Cracks along the pavement edge due to poor support.

8. Pumping
- Ejection of water and fines from beneath the pavement due to heavy loads.

9. Stripping
- Loss of bond between asphalt and aggregates, leading to surface disintegration.

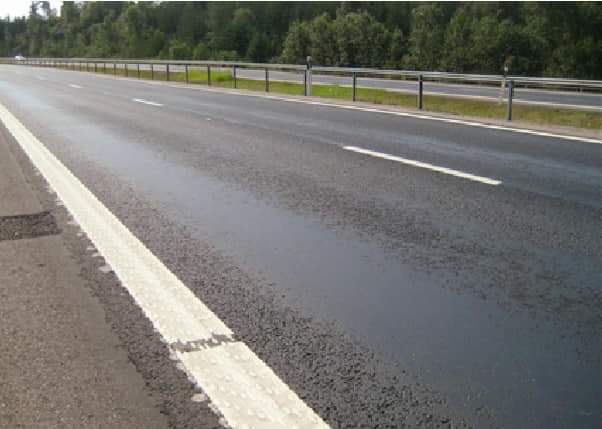

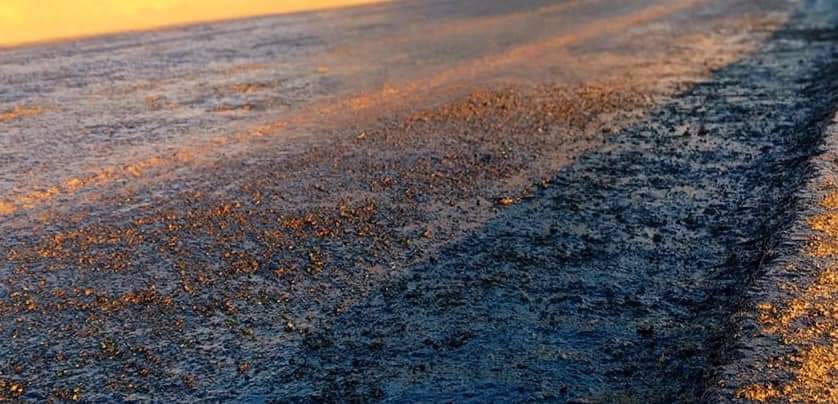

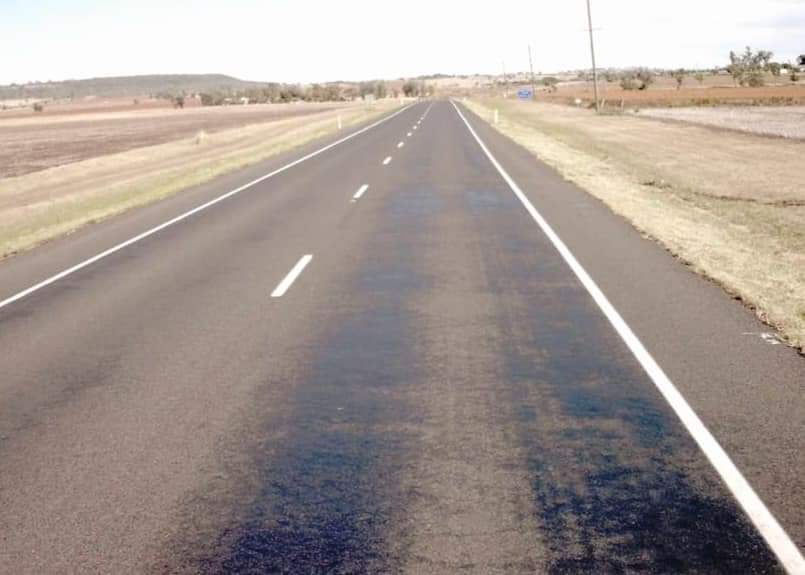

10. Bleeding
- Excess asphalt binder on the surface, causing a shiny appearance.

Each type requires specific repair strategies to ensure road longevity and safety.


Attachments

  • FB_IMG_1722176548652.jpg
    149.6 KB · Views: 11
  • FB_IMG_1722176550940.jpg
    12.2 KB · Views: 11
  • FB_IMG_1722176552960.jpg
    32.8 KB · Views: 11
  • FB_IMG_1722176555552.jpg
    53.8 KB · Views: 10
By expert!
Shoving in road pavement occurs due to:

1. Lateral Forces: Frequent braking and turning, especially at intersections, push the pavement horizontally.

2. Weak Asphalt Mix: An inadequate asphalt mix design that cannot withstand shear forces.

3. Poor Compaction: Insufficient compaction leads to instability under traffic.

4. Moisture Infiltration: Water weakens the pavement layers, making them more prone to displacement.

5. Temperature Changes: Thermal expansion and contraction can exacerbate movement.

To prevent shoving, use appropriate materials, ensure proper compaction, and maintain effective drainage.

Nikajua maamuzi ya barabara ya Ubungo Chalinze yamefanyika na ujenzi kuanza wa barabara 3 kwenda na kurudi kama Ndiyo ya the late JPM

By expert!

By expert!
Road pavement can experience various types of damages, including:

1. Cracking
- Fatigue Cracking: Often called alligator cracking, caused by repeated loading.
- Block Cracking: Forms large rectangular blocks due to temperature changes.
- Longitudinal and Transverse Cracks: Occur parallel or perpendicular to the road centerline.

2. Potholes
- Caused by water infiltration and traffic loading.

3. Rutting
- Depressions in wheel paths due to inadequate compaction or weak subgrade.

4. Raveling
- Surface aggregate loss, leading to a rough texture.

5. Depressions
- Localized low areas not associated with ruts.

6. Shoving
- Displacement of the pavement surface, often at intersections.

7. Edge Cracking
- Cracks along the pavement edge due to poor support.

8. Pumping
- Ejection of water and fines from beneath the pavement due to heavy loads.

9. Stripping
- Loss of bond between asphalt and aggregates, leading to surface disintegration.

10. Bleeding
- Excess asphalt binder on the surface, causing a shiny appearance.

Each type requires specific repair strategies to ensure road longevity and safety.View attachment 3055229View attachment 3055230View attachment 3055231View attachment 3055232

The common structure of asphalt concrete road?

Asphalt concrete roads, often referred to as asphalt pavements, are composed of several layers designed to distribute loads and provide a smooth, durable surface. Here's an overview of the typical structure of an asphalt concrete road:

1. Subgrade: The natural soil layer, which is compacted to provide a stable foundation. Proper preparation and compaction of the subgrade are critical for the road's overall performance.

2. Sub-base: This layer consists of granular material such as crushed stone or gravel. It provides additional load distribution, drainage, and frost protection. The thickness of the sub-base depends on the traffic load and subgrade conditions.

3. Base Course: A high-quality granular material or stabilized base (e.g., cement or lime-stabilized) that provides structural support and further load distribution. The base course must be well-compacted and evenly spread.

4. Prime Coat: A low-viscosity bituminous layer applied to the base course to promote adhesion between the base course and the asphalt layers. It also helps to seal the base course and prevent water infiltration.

5. Binder Course: This is the first layer of asphalt concrete, composed of coarser aggregates and bitumen. It provides structural strength and helps distribute traffic loads. The binder course is designed to withstand heavy loads and resist deformation.

6. Tack Coat: A light application of bitumen emulsion applied between asphalt layers to ensure proper bonding. It improves the adhesion between the binder course and the surface course.

7. Surface Course: The top layer of asphalt concrete, made of finer aggregates and bitumen. It provides a smooth, durable, and skid-resistant driving surface. The surface course is designed to resist wear and weathering.

### Summary of Asphalt Concrete Road Structure

1. Subgrade
2. Sub-base
3. Base Course
4. Prime Coat
5. Binder Course
6. Tack Coat
7. Surface Course

Each layer in the asphalt concrete road structure serves a specific function to ensure the road can handle traffic loads, provide a smooth driving surface, and maintain durability over time. Proper design, material selection, and construction practices are essential for the longevity and performance of an asphalt concrete road.

The common structure of asphalt concrete road?

Asphalt concrete roads, often referred to as asphalt pavements, are composed of several layers designed to distribute loads and provide a smooth, durable surface. Here's an overview of the typical structure of an asphalt concrete road:

1. Subgrade: The natural soil layer, which is compacted to provide a stable foundation. Proper preparation and compaction of the subgrade are critical for the road's overall performance.

2. Sub-base: This layer consists of granular material such as crushed stone or gravel. It provides additional load distribution, drainage, and frost protection. The thickness of the sub-base depends on the traffic load and subgrade conditions.

3. Base Course: A high-quality granular material or stabilized base (e.g., cement or lime-stabilized) that provides structural support and further load distribution. The base course must be well-compacted and evenly spread.

4. Prime Coat: A low-viscosity bituminous layer applied to the base course to promote adhesion between the base course and the asphalt layers. It also helps to seal the base course and prevent water infiltration.

5. Binder Course: This is the first layer of asphalt concrete, composed of coarser aggregates and bitumen. It provides structural strength and helps distribute traffic loads. The binder course is designed to withstand heavy loads and resist deformation.

6. Tack Coat: A light application of bitumen emulsion applied between asphalt layers to ensure proper bonding. It improves the adhesion between the binder course and the surface course.

7. Surface Course: The top layer of asphalt concrete, made of finer aggregates and bitumen. It provides a smooth, durable, and skid-resistant driving surface. The surface course is designed to resist wear and weathering.

### Summary of Asphalt Concrete Road Structure

1. Subgrade
2. Sub-base
3. Base Course
4. Prime Coat
5. Binder Course
6. Tack Coat
7. Surface Course

Each layer in the asphalt concrete road structure serves a specific function to ensure the road can handle traffic loads, provide a smooth driving surface, and maintain durability over time. Proper design, material selection, and construction practices are essential for the longevity and performance of an asphalt concrete road.View attachment 3065312View attachment 3065313View attachment 3065314

By expert engineer.
EDGE BREAKING IN ROAD PAVEMENT.
Edge breaking in road pavement, also known as edge cracking or edge raveling, occurs due to several factors:

1. Insufficient Shoulder Support: If the road shoulders are not properly constructed or maintained, the edges of the pavement are unsupported and more prone to breaking under traffic loads.

2. Erosion: Water runoff can erode the soil supporting the pavement edge, leading to a loss of support and subsequent breaking.

3. Traffic Load: Vehicles, particularly heavy trucks, traveling close to the edge of the pavement exert significant stress on the unsupported edge, causing it to crack and break.

4. Poor Drainage: Inadequate drainage allows water to accumulate at the pavement edges, weakening the subgrade and base layers, leading to edge failure.

5. Narrow Roads: Roads that are too narrow force vehicles to drive close to the edge, increasing the stress and likelihood of edge breaking.

6. Vegetation: Roots from nearby plants and trees can grow underneath the pavement, disrupting the support and causing cracks and breaks at the edges.

7. Freeze-Thaw Cycles: Similar to other pavement issues, freeze-thaw cycles can cause expansion and contraction at the edges, leading to cracks and breaking.

8. Aging and Wear: Over time, the materials at the pavement edge can degrade and lose their structural integrity, making them more susceptible to breaking.

Regular maintenance, proper shoulder construction, adequate drainage, and managing vegetation near the roadway can help prevent edge breaking in road pavements.

By expert!!

Designing axial loads for road construction involves several steps to ensure the pavement structure can withstand the expected traffic loads over its lifespan. Here’s an overview of the process:

1. Traffic Analysis
- Traffic Volume: Determine the average daily traffic (ADT) and the percentage of heavy vehicles.
- Load Spectra: Analyze the types and weights of vehicles using the road.
- Growth Rate: Estimate traffic growth over the design life of the road.

2. Axle Load Distribution
- Axle Configurations: Identify common axle configurations (e.g., single axle, tandem axle).
- Axle Load Spectrum: Develop axle load distributions from weigh-in-motion data or traffic studies.

3. Equivalent Single Axle Load (ESAL)
- Convert different axle loads to a standard load (usually an 18,000-pound single axle load) to simplify calculations.
- Use the ESAL concept to account for the damaging effect of different axle loads

4. Material Properties
- Determine the properties of materials to be used in the pavement structure, including subgrade, base, and surface materials.
- Laboratory testing for properties like strength, stiffness, and durability.

5. Pavement Structure Design
- Layer Thickness: Design appropriate thicknesses for each layer of the pavement structure.
- Mechanistic-Empirical Design: Use mechanistic-empirical methods to calculate the required layer thicknesses based on traffic loads and material properties.

6. Design Standards and Guidelines
- Follow national or regional standards and guidelines (e.g., AASHTO in the U.S.) for pavement design.
- Use design software tools recommended by the guidelines to facilitate calculations.

7. Verification and Validation
- Validate the design through field performance data or modeling.
- Conduct simulations or use past performance data to ensure the design meets expected performance criteria.

8. Safety and Environmental Considerations
- Incorporate safety features in the design, such as proper drainage to prevent water damage.
- Consider environmental factors like temperature variations, precipitation, and freeze-thaw cycles.

Example Steps in Detail

1. Traffic Analysis

- Count and Classify Vehicles: Use traffic counters and classification systems to gather data.
- Forecast Future Traffic: Use historical data and growth models to predict future traffic patterns.

2. Axle Load Distribution
- Data Collection: Gather axle load data from weigh-in-motion systems or load surveys.
- Analysis: Analyze the collected data to determine the distribution and frequency of different axle loads.

3. ESAL Calculation
- Load Equivalency Factors (LEF): Use LEFs to convert various axle loads to equivalent single axle loads.
- Summation: Sum the ESALs for the design period to determine the total load the pavement must withstand.

4. Material Characterization
- Testing: Conduct tests like CBR (California Bearing Ratio), resilient modulus, and others to determine material properties.
- Selection: Choose appropriate materials based on test results and local availability.

5. Layer Design
- Initial Thickness Estimates: Use empirical formulas or charts to estimate initial layer thicknesses.
- Refinement: Refine these estimates using mechanistic-empirical methods, which consider stress and strain responses under loading.

6. Guidelines
- AASHTO Guide: Utilize the AASHTO Guide for Design of Pavement Structures.
- Software: Use pavement design software like AASHTOware Pavement ME Design for detailed analysis.

By carefully considering these steps, engineers can design road pavements that are capable of handling the expected axial loads over their intended lifespan, ensuring safety and durability.

View attachment 3045023
By 🛣️ expert engineer.

Method repair of bleeding road pavement?

Bleeding of road pavement surfaces occurs when excess asphalt binder rises to the surface, creating a shiny, sticky film. This condition can lead to safety hazards due to reduced skid resistance and can be unsightly. To rectify bleeding surfaces in road pavements, several steps can be taken depending on the severity of the bleeding:

1. Immediate Actions

Sand Application

  • Spread Sand: Apply a layer of fine sand or aggregate over the bleeding area. This helps absorb the excess binder and provides a temporary solution to improve traction.
  • Brooming: Lightly broom the sand to ensure it covers the affected area evenly and adheres to the binder.

Chemical Absorbents

- Use Absorbent Materials: In some cases, specific chemical absorbents may be used to soak up the excess asphalt.

2. Short-Term Fixes

Surface Treatments

  • Chip Seals: Apply a chip seal (a layer of asphalt followed by aggregate) to absorb the excess binder and provide a new wearing surface.
  • Slurry Seal: Apply a slurry seal, which consists of a mixture of asphalt emulsion, water, aggregate, and additives, to improve the surface texture and cover the bleeding.

3. Long-Term Solutions

Milling and Overlay

  • Mill the Surface: If the bleeding is extensive, milling (removing a layer of the pavement) may be necessary to remove the excess binder.
  • Apply Overlay: After milling, apply a new layer of asphalt to restore the surface.

Reconstruction

- Full-Depth Reclamation: For severe cases, the pavement might need to be reconstructed, involving the removal and replacement of the affected layers.

4. Preventive Measures

Proper Mix Design

  • Binder Content: Ensure the asphalt mix has the correct binder content to prevent future bleeding. Excessive binder content is a common cause of bleeding.
  • Aggregate Selection: Use aggregates that are properly graded and have adequate void space to accommodate the binder.

Quality Control

  • Compaction: Ensure proper compaction during construction to prevent voids from filling up with binder over time.
  • Temperature Control: Avoid placing asphalt when it’s too hot, as this can lead to binder bleeding.

Maintenance

  • Regular Inspection: Regularly inspect pavements for signs of distress and address issues before they worsen.
  • Seal Coating: Periodic seal coating can help protect the pavement and prevent bleeding.

Addressing bleeding in road pavements requires a combination of immediate action, short-term fixes, and long-term solutions. Proper maintenance and preventive measures can help minimize the occurrence of bleeding and extend the pavement's life.


Attachments

  • FB_IMG_1723781436239.jpg
    125.8 KB · Views: 6
  • FB_IMG_1723781439130.jpg
    25.3 KB · Views: 5
  • FB_IMG_1723781444212.jpg
    36.7 KB · Views: 5
  • FB_IMG_1723781441626.jpg
    59.5 KB · Views: 5
By expert!

By expert!
Road pavement can experience various types of damages, including:

1. Cracking
- Fatigue Cracking: Often called alligator cracking, caused by repeated loading.
- Block Cracking: Forms large rectangular blocks due to temperature changes.
- Longitudinal and Transverse Cracks: Occur parallel or perpendicular to the road centerline.

2. Potholes
- Caused by water infiltration and traffic loading.

3. Rutting
- Depressions in wheel paths due to inadequate compaction or weak subgrade.

4. Raveling
- Surface aggregate loss, leading to a rough texture.

5. Depressions
- Localized low areas not associated with ruts.

6. Shoving
- Displacement of the pavement surface, often at intersections.

7. Edge Cracking
- Cracks along the pavement edge due to poor support.

8. Pumping
- Ejection of water and fines from beneath the pavement due to heavy loads.

9. Stripping
- Loss of bond between asphalt and aggregates, leading to surface disintegration.

10. Bleeding
- Excess asphalt binder on the surface, causing a shiny appearance.

Each type requires specific repair strategies to ensure road longevity and safety.View attachment 3055229View attachment 3055230View attachment 3055231View attachment 3055232

By field expert

The repair method of settlement of road pavement?

Repairing settlement in road pavement involves addressing the underlying issues causing the settlement and restoring the road surface to ensure safety and longevity. Here's a general method for repairing a settled road pavement:

1. Assessment and Investigation
- Visual Inspection: Identify the extent and severity of the settlement. Look for cracks, depressions, and other signs of distress.
- Geotechnical Investigation: Determine the cause of settlement by analyzing the soil beneath the pavement. This might involve drilling boreholes, sampling soil, and conducting tests to assess soil strength, moisture content, and other properties.

2. Determine the Cause of Settlement
- Poor Compaction: Settlement often occurs due to inadequate compaction of the underlying soil during construction.
- Soil Erosion: Water infiltration can erode the soil beneath the pavement, leading to voids and settlement.
- Subsurface Voids or Sinkholes: Natural voids or man-made cavities (e.g., from broken drainage pipes) can cause the pavement to settle.
- Loading Conditions: Repeated heavy traffic can cause settlement if the pavement and subgrade are not designed to handle the load.

3. Select the Appropriate Repair Method
Depending on the cause and extent of settlement, different repair methods may be used:

a. Surface Patching (Temporary Solution)
- Patching: Fill the depressed area with a suitable patching material like hot mix asphalt. This is a quick fix but doesn't address the root cause.

b. Full-Depth Repair (Permanent Solution)
- Excavation: Remove the settled pavement and subgrade to reach stable soil.
- Subgrade Preparation: Replace unsuitable or eroded soil with compacted granular material. In some cases, geotextiles or geogrids may be used to improve stability.
- Reconstruction: Rebuild the pavement layers, starting with the subbase and base layers, followed by the asphalt or concrete surface.

c. Soil Stabilization Techniques
- Lime or Cement Stabilization: Mix lime or cement into the subgrade to improve soil strength and reduce future settlement.
- Chemical Grouting: Inject chemical grouts into the subgrade to fill voids and stabilize the soil.
- Undersealing: Inject a flowable material like asphalt or cement slurry beneath the pavement to fill voids and lift the settled area.

d. Drainage Improvements
- Improve Surface Drainage: Ensure proper grading and installation of surface drains to prevent water infiltration.
- Subsurface Drainage: Install French drains, drainage pipes, or other subsurface drainage systems to remove water from the pavement structure.

4. Implementation of Repair
- Site Preparation: Clear the site, remove any debris, and set up safety measures.
- Repair Execution: Carry out the chosen repair method with attention to detail and proper workmanship.
- Compaction: Ensure all materials, especially the subgrade and pavement layers, are properly compacted to avoid future settlement.

5. Quality Control and Monitoring
- Compaction Testing: Conduct compaction tests on the subgrade and pavement layers to ensure they meet the required specifications.
- Post-Repair Monitoring: Monitor the repaired area over time for any signs of new settlement. This can be done through visual inspections and, if necessary, additional geotechnical tests.

6. Maintenance
- Regular Inspections: Continuously monitor the repaired area and surrounding pavement for any signs of distress.
- Preventive Maintenance: Implement preventive maintenance measures, such as crack sealing and drainage management, to extend the life of the pavement.

This approach ensures a thorough and effective repair of settled road pavement, addressing both the symptoms and the underlying causes.

By expert!!

Designing axial loads for road construction involves several steps to ensure the pavement structure can withstand the expected traffic loads over its lifespan. Here’s an overview of the process:

1. Traffic Analysis
- Traffic Volume: Determine the average daily traffic (ADT) and the percentage of heavy vehicles.
- Load Spectra: Analyze the types and weights of vehicles using the road.
- Growth Rate: Estimate traffic growth over the design life of the road.

2. Axle Load Distribution
- Axle Configurations: Identify common axle configurations (e.g., single axle, tandem axle).
- Axle Load Spectrum: Develop axle load distributions from weigh-in-motion data or traffic studies.

3. Equivalent Single Axle Load (ESAL)
- Convert different axle loads to a standard load (usually an 18,000-pound single axle load) to simplify calculations.
- Use the ESAL concept to account for the damaging effect of different axle loads

4. Material Properties
- Determine the properties of materials to be used in the pavement structure, including subgrade, base, and surface materials.
- Laboratory testing for properties like strength, stiffness, and durability.

5. Pavement Structure Design
- Layer Thickness: Design appropriate thicknesses for each layer of the pavement structure.
- Mechanistic-Empirical Design: Use mechanistic-empirical methods to calculate the required layer thicknesses based on traffic loads and material properties.

6. Design Standards and Guidelines
- Follow national or regional standards and guidelines (e.g., AASHTO in the U.S.) for pavement design.
- Use design software tools recommended by the guidelines to facilitate calculations.

7. Verification and Validation
- Validate the design through field performance data or modeling.
- Conduct simulations or use past performance data to ensure the design meets expected performance criteria.

8. Safety and Environmental Considerations
- Incorporate safety features in the design, such as proper drainage to prevent water damage.
- Consider environmental factors like temperature variations, precipitation, and freeze-thaw cycles.

Example Steps in Detail

1. Traffic Analysis

- Count and Classify Vehicles: Use traffic counters and classification systems to gather data.
- Forecast Future Traffic: Use historical data and growth models to predict future traffic patterns.

2. Axle Load Distribution
- Data Collection: Gather axle load data from weigh-in-motion systems or load surveys.
- Analysis: Analyze the collected data to determine the distribution and frequency of different axle loads.

3. ESAL Calculation
- Load Equivalency Factors (LEF): Use LEFs to convert various axle loads to equivalent single axle loads.
- Summation: Sum the ESALs for the design period to determine the total load the pavement must withstand.

4. Material Characterization
- Testing: Conduct tests like CBR (California Bearing Ratio), resilient modulus, and others to determine material properties.
- Selection: Choose appropriate materials based on test results and local availability.

5. Layer Design
- Initial Thickness Estimates: Use empirical formulas or charts to estimate initial layer thicknesses.
- Refinement: Refine these estimates using mechanistic-empirical methods, which consider stress and strain responses under loading.

6. Guidelines
- AASHTO Guide: Utilize the AASHTO Guide for Design of Pavement Structures.
- Software: Use pavement design software like AASHTOware Pavement ME Design for detailed analysis.

By carefully considering these steps, engineers can design road pavements that are capable of handling the expected axial loads over their intended lifespan, ensuring safety and durability.

View attachment 3045023
By expert. Engineer.


Permanent repair of base course failure?

Permanent repair of base course failures, often seen as foundational issues in pavements or roads, is critical for ensuring long-term durability and safety. Here are some common methods for permanently repairing base course failures:

# 1. Full-Depth Reclamation (FDR)
- Description: FDR involves pulverizing the existing pavement and base materials and then mixing them with stabilizing agents (like cement, lime, or asphalt emulsions).
- Process:
1. Pulverize the existing pavement to a specified depth.
2. Add stabilizing agents to the pulverized material.
3. Compact the mixture to create a new base.
4. Apply a new surface layer, such as asphalt or concrete.

# 2. Replacement of Base Course
- Description: This method involves the complete removal of the failed base material and replacement with new material.
- Process:
1. Excavate the area to remove the failed base course.
2. Replace it with suitable granular base material (e.g., crushed stone or gravel).
3. Compact the new base material to the required density.
4. Restore the pavement surface.

# 3. Stabilization
- Description: Stabilization involves enhancing the strength and durability of the existing base material by adding stabilizing agents.
- Process:
1. Assess the existing base material for suitability.
2. Apply a stabilizing agent like lime, cement, or asphalt.
3. Mix the stabilizer with the base material in place.
4. Compact the treated base material to improve its load-bearing capacity.

# 4. Underdrain Installation
- Description: Poor drainage often leads to base course failures. Installing underdrains can permanently address moisture-related issues.
- Process:
1. Excavate trenches along the sides of the pavement where drainage is needed.
2. Install perforated pipes within the trenches.
3. Backfill the trenches with gravel or other permeable material.
4. Ensure proper outflow to avoid water accumulation.

# 5. Geosynthetics Reinforcement
- Description: Geosynthetics (like geotextiles or geogrids) are used to reinforce and stabilize the base course.
- Process:
1. Excavate the failed area to expose the subgrade.
2. Place a layer of geotextile or geogrid over the subgrade.
3. Place and compact a new layer of base material over the geosynthetic.
4. Restore the pavement surface.

# 6. Deep Patch Repair
- Description: This method involves removing the damaged pavement and base materials and replacing them with new materials.
- Process:
1. Cut and remove the damaged pavement and base materials to a specified depth.
2. Reconstruct the base course using appropriate material.
3. Compact the new base material.
4. Apply a new surface layer.

# 7. Soil-Cement Base
- Description: In this method, the existing base is mixed with cement to create a stronger, more durable base layer.
- Process:
1. Spread cement over the base material.
2. Mix the cement into the base material to the required depth.
3. Compact the mixture to create a solid base.
4. Apply a new pavement surface.

# 8. Chemical Injection
- Description: This technique involves injecting chemical stabilizers into the base course to improve its strength and stability.
- Process:
1. Drill holes into the base course at strategic locations.
2. Inject chemical stabilizers, like polyurethane or other polymers, into the base course.
3. Allow the chemicals to harden and stabilize the base material.

Each method is chosen based on the specific conditions of the site, including the type of base course failure, soil conditions, drainage issues, and traffic loads. Proper assessment by engineers is crucial to selecting the most effective repair method.


Attachments

  • FB_IMG_1724042439827.jpg
    26.4 KB · Views: 3
  • FB_IMG_1724042433370.jpg
    29.8 KB · Views: 3
  • FB_IMG_1724042436359.jpg
    18.2 KB · Views: 3
  • FB_IMG_1724042443428.jpg
    15.1 KB · Views: 3
By expert.Highway engineering

The function of embankment layer?

An embankment layer is a vital component in the construction of roads, railways, dams, and other infrastructure projects. It serves several important functions:

### 1. Structural Support
- Load Distribution: The primary function of an embankment layer is to provide a stable foundation that can distribute the load of the overlying structures (such as roads, railways, or buildings) evenly across the underlying ground. This helps to prevent uneven settlement and ensures the longevity of the infrastructure.

### 2. Elevation
- Raising the Ground Level: Embankments are often used to elevate the ground level, especially in areas prone to flooding or where the natural terrain is uneven. By raising the ground level, embankments can keep roads, railways, or other structures above the high-water mark, reducing the risk of water damage.

### 3. Stability and Erosion Control
- Slope Stability: Embankments are designed to be stable, preventing landslides and erosion. Properly constructed embankments resist the forces that can cause soil to move, thus maintaining the integrity of the infrastructure.
- Erosion Protection: Embankments are often constructed with materials that prevent soil erosion, which could otherwise weaken the structure and lead to failure.

### 4. Drainage
- Facilitating Water Flow: Embankments can be designed with drainage systems to allow water to flow away from the road or railway, preventing water accumulation that could weaken the structure or lead to surface flooding.
- Preventing Waterlogging: Proper drainage within the embankment helps to prevent waterlogging, which can reduce the strength of the soil and cause the embankment to settle or collapse.

### 5. Support for Other Layers
- Base for Pavement or Rail Track: In road and railway construction, the embankment layer provides a firm base on which other layers, such as the sub-base, base course, and pavement, are constructed. It ensures that these layers are laid on a stable and even surface.

### 6. Mitigating Settlement
- Reducing Settlement Issues: Embankments can help reduce differential settlement, where different parts of a structure settle at different rates, leading to cracks and structural issues. By providing a uniform support base, embankments minimize this risk.

### 7. Environmental and Aesthetic Functions
- Noise Barriers: In some cases, embankments are used as barriers to reduce noise pollution from highways or railways.
- Aesthetic Improvements: Embankments can be landscaped to improve the visual appeal of infrastructure, blending it with the surrounding environment.

In summary, the embankment layer is critical for providing stability, load distribution, drainage, and protection against environmental factors, ensuring the safe and effective functioning of infrastructure projects.


Attachments

  • FB_IMG_1724215768090.jpg
    128.2 KB · Views: 1
  • FB_IMG_1724215771083.jpg
    14.2 KB · Views: 2
  • FB_IMG_1724215774223.jpg
    10.4 KB · Views: 1
  • FB_IMG_1724215776848.jpg
    62.4 KB · Views: 3
By expert engineer.

The subgrade layer functions?

The subgrade layer is the foundation layer in road and pavement construction, playing a critical role in the overall performance and longevity of the structure. Here are the key functions of the subgrade layer:

### 1. Load Support
- Bearing Capacity: The subgrade layer supports the loads applied to the pavement from traffic. It must have sufficient strength to bear these loads without undergoing excessive deformation, which could lead to pavement failure.

### 2. Load Distribution
- Distributing Loads: The subgrade helps in distributing the loads from the pavement structure to the underlying soil layers. A well-prepared subgrade ensures that the stress is spread over a larger area, reducing the pressure on the underlying ground.

### 3. Stability
- Foundation for Pavement Layers: The subgrade acts as a stable foundation for the upper pavement layers (such as the sub-base, base, and surface layers). It provides uniform support, which is crucial for the durability and performance of the pavement.

### 4. Drainage
- Water Management: Proper subgrade preparation includes ensuring that it has adequate drainage properties. A well-drained subgrade prevents water from accumulating, which could weaken the structure, reduce bearing capacity, and lead to frost heave in cold climates.

### 5. Resistance to Frost Heave
- Preventing Frost Damage: In cold climates, the subgrade should be designed to resist frost heave, a process where water within the soil freezes and expands, causing the pavement to lift and crack. This is typically managed by using non-frost-susceptible materials or ensuring proper drainage.

### 6. Controlling Settlement
- Minimizing Differential Settlement: The subgrade helps control and minimize differential settlement, where different parts of the pavement settle at different rates. This is important to prevent uneven surfaces and cracking in the pavement.

### 7. Providing a Working Platform
- Construction Platform: The subgrade layer provides a working platform for the construction of the upper pavement layers. It needs to be firm enough to support construction equipment without significant rutting or deformation.

### 8. Reduction of Pavement Thickness
- Optimizing Pavement Design: A well-prepared and strong subgrade can allow for a reduction in the thickness of the pavement layers above it. This can lead to cost savings in material and construction.

### 9. Impact on Maintenance
- Long-term Performance: The quality of the subgrade directly impacts the maintenance needs of the pavement. A poorly prepared subgrade can lead to early pavement failures, increasing maintenance costs and reducing the pavement’s lifespan.

### 10. Mitigation of Environmental Effects
- Adapting to Soil Conditions: The subgrade must be adapted to the specific environmental conditions of the area, such as soil type, moisture content, and temperature variations. Properly designed subgrades can mitigate negative effects like swelling, shrinkage, or erosion.

In summary, the subgrade layer is essential for ensuring the stability, durability, and performance of the pavement structure. It provides the necessary support, manages drainage, controls settlement, and serves as the foundation for the upper pavement layers.


Attachments

  • FB_IMG_1724295574561.jpg
    39.2 KB · Views: 2
  • FB_IMG_1724295571198.jpg
    8.7 KB · Views: 2
  • FB_IMG_1724295577701.jpg
    118 KB · Views: 1
  • FB_IMG_1724295582028.jpg
    150.1 KB · Views: 1
By expert engineer!!.

The prime coat layer function.
A prime coat is a layer of low-viscosity bituminous material applied to the prepared base course (usually granular or stabilized) before the placement of the surface course, typically asphalt The prime coat plays several important functions in pavement construction:

# 1. Bonding Agent
- Creating a Bond Between Layers: The prime coat acts as an adhesive layer that helps create a strong bond between the base course and the surface course. This bond is crucial for ensuring that the layers act as a single, unified structure, which enhances the pavement's overall stability and load-bearing capacity.

# 2. Sealing the Base Course
- Preventing Water Infiltration: The prime coat helps to seal the surface of the base course, preventing water from penetrating into the base or subgrade layers. This is important for maintaining the strength and stability of the pavement, as water infiltration can weaken the base course and lead to issues like erosion, swelling, or frost heave.

# 3. Stabilizing Dust and Loose Particles
- Reducing Dust and Loose Material: A prime coat helps to bind together any loose particles on the surface of the base course, reducing dust and preventing these particles from interfering with the adhesion of the surface course. This results in a cleaner, more stable surface for the placement of the asphalt layer.

# 4. Preparing the Base for Asphalt Application
- Improving Asphalt Layer Adherence: By penetrating the base course and binding with it, the prime coat prepares the base for the application of the asphalt layer. It ensures that the asphalt adheres properly to the base, reducing the risk of slippage or delamination (separation) between the layers under traffic loads.

# 5. Enhancing Durability
- Prolonging Pavement Life: By providing a strong bond between the base and surface layers and preventing water infiltration, the prime coat enhances the durability of the pavement. It helps to prevent early failure of the pavement due to issues like cracking, rutting, or water damage.

# 6. Facilitating Construction
- Supporting Construction Processes: The prime coat can make the base course less dusty and more stable during the construction process, making it easier to apply the surface layer. This contributes to better construction quality and reduces the likelihood of problems during the paving process.

# 7. Reducing Absorption of the Surface Layer's Binder
- Minimizing Binder Loss: The prime coat can help reduce the amount of binder from the surface layer that is absorbed into the base course. This ensures that the asphalt layer retains sufficient binder for effective bonding and durability.

In summary, the prime coat plays a critical role in ensuring the long-term performance of the pavement by bonding the base course to the surface layer, sealing the base against water infiltration, stabilizing dust, and enhancing the overall durability of the pavement structure.

Infide et caritate !

By expert.
The best choice for using prime coat materials:

The best prime coat materials for road construction depend on several factors, including the type of base material, environmental conditions, and the specific requirements of the project. However, here are some of the most commonly used and effective prime coat materials:

### 1. Bitumen Emulsions
- Overview: Bitumen emulsions are widely regarded as one of the best prime coat materials due to their ease of application, environmental friendliness, and effective penetration.
- Advantages:
- Low Environmental Impact: Emulsions are water-based, which reduces the release of volatile organic compounds (VOCs) compared to cutback bitumen.
- Good Penetration: Emulsions can penetrate well into the base course, enhancing the bond between the base and the subsequent asphalt layers.
- Versatility: Available in both anionic and cationic forms, making them suitable for a variety of base materials.
- Best Use: Ideal for projects where environmental considerations are important, or where the base course is highly absorbent.

### 2. Cutback Bitumen
- Overview: Cutback bitumen is another popular choice for prime coats. It is bitumen diluted with a solvent (such as kerosene or diesel) to lower its viscosity, allowing for better penetration into the base course.
- Advantages:
- Rapid Setting: Particularly the rapid-curing (RC) types, which are useful in colder climates or when quick drying is required.
- Strong Bonding: Provides a strong bond between the base course and the asphalt layer, especially on denser base materials.
- Availability: Widely available and well-understood in the industry.
- Best Use: Suited for situations where deep penetration is required, or where faster curing times are necessary. However, it’s less environmentally friendly due to the use of solvents.

### 3. Polymer-Modified Emulsions
- Overview: These are bitumen emulsions that have been enhanced with polymers to improve their performance characteristics, such as elasticity, durability, and adhesion.
- Advantages:
- Enhanced Bonding: The addition of polymers provides better adhesion to the base course and improves the longevity of the prime coat.
- Elasticity: Improved elasticity helps accommodate slight movements in the base course without cracking.
- Water Resistance: Offers better resistance to water ingress compared to standard emulsions.
- Best Use: Best for projects where enhanced bonding and durability are required, particularly in areas with significant temperature fluctuations or moisture concerns.

### 4. Penetrating Asphalt
- Overview: Penetrating asphalt is a special type of low-viscosity asphalt designed to deeply penetrate the base course. It's less commonly used than emulsions or cutbacks but is effective in specific situations.
- Advantages:
- Deep Penetration: Provides excellent penetration into granular bases, creating a strong, durable bond.
- Moisture Barrier: Offers good protection against moisture penetration, which can be crucial in preventing base course deterioration.
- Best Use: Used in specialized applications where deep penetration is critical, such as in very porous or loosely compacted base courses.

### 5. Eco-Friendly Primers
- Overview: These are newer products made from bio-based or synthetic materials designed to reduce environmental impact while providing effective priming.
- Advantages:
- Environmentally Friendly: Made from sustainable materials, these primers minimize the carbon footprint and are safer for workers and the environment.
- Effective Bonding: Despite being eco-friendly, they still provide strong bonding and sealing capabilities.
- Best Use: Ideal for projects with strict environmental regulations or where sustainability is a key concern. Thank you.


Attachments

  • FB_IMG_1724987496303.jpg
    27.8 KB · Views: 2
  • FB_IMG_1724987498978.jpg
    6.6 KB · Views: 2
  • FB_IMG_1724987501348.jpg
    116 KB · Views: 3
  • FB_IMG_1724987503355.jpg
    56.4 KB · Views: 2

Similar Discussions

Back
Top Bottom
