African Satellite World and Sat Gear

[aizen]

Here is a Clip Showing OPENBOX V8 COMBO DVB -S2 function. am currently on NIlesat with a 130cm Eurostar Offset Dish. Hope those considering buying the box will benefit. Its just works 🙂

VIDEO: http://youtu.be/yaKGsgv-ZKk

Hi Kassych, I will be getting my Openbox V8 combo receiver soon. Your review on DVB T2 part was very good unfortunately am unable to access the above review...it says the video is private :disapointed:



[dejumbo]

kuband NSS-12 @ 57° East .
Uganda mux
1.Bukedde 1
2.WBS Uganda
3.NTV Uganda
4.NBS
5.UBC TV
11041 H 5000 Auto

Confirmed.
The Uganda Mux is available on NSS 12 @ 57.0° East frequency 11043 H 4999 with the following 6 channels:.
NTV Uganda
WBS
NBS
Bukedde 1
Bukedde 2
TV West
Surprised to see Bukedde 2 which has not been available even on analogue.
UBC is not there and TV West has no audio.



[Vince9]

Confirmed.
The Uganda Mux is available on NSS 12 @ 57.0° East frequency 11043 H 4999 with the following 6 channels:.
NTV Uganda
WBS
NBS
Bukedde 1
Bukedde 2
TV West
Surprised to see Bukedde 2 which has not been available even on analogue.
UBC is not there and TV West has no audio.

Waw!!!, am Hooking this up this Friday(public Holiday), i could possibly shift MY Big Bro 90cm Dish for this Satellite. i won't disorganize my my 130cm offset which is currently bringing down Nilesat, 7A and Amos5.



[klevgit]

Waw!!!, am Hooking this up this Friday(public Holiday), i could possibly shift MY Big Bro 90cm Dish for this Satellite. i won't disorganize my my 130cm offset which is currently bringing down Nilesat, 7A and Amos5.

Hey bro I would appreciate to c how you have managed to bring down the 3 birds on a 130. I have one but only managing to give me the 7w.
A diagram will be highly helpful.
Thanks



[GIDEN]

Afternoon to all bro's i am a newbie, just starting to sit up. hope i am welkam. Am at Kiambu, Ndumberi.Now to my question.
1. I have a 6ft pf, 4950h, Eurostar twin n a stargold satelite meter. with the above is it possible to bring down Nilesats?
2. Everything is connected but am getting an unstable strength of 55% and a nil Quality reading.where could i have gone wrong ?
3. The meter connected to LNB shows a strength of 80-92% but the decoder as above nakosea wapi ?
HELP ME OUT
I managed to upgrade to V3.20 could this affect my chances ?
Nataka kulipa fundi nikishindwa pliz help me out @ Kungu1,Ranksat, Vince9,all forumists !



[kungu1]

Confirmed.
The Uganda Mux is available on NSS 12 @ 57.0° East frequency 11043 H 4999 with the following 6 channels:.
NTV Uganda
WBS
NBS
Bukedde 1
Bukedde 2
TV West
Surprised to see Bukedde 2 which has not been available even on analogue.
UBC is not there and TV West has no audio.

Thanks bro for the update,:clap2::clap2:

SO MUCH MORE FOR FREE!!!!!!!



[ljumuso]

Afternoon to all bro's i am a newbie, just starting to sit up. hope i am welkam. Am at Kiambu, Ndumberi.Now to my question.
1. I have a 6ft pf, 4950h, Eurostar twin n a stargold satelite meter. with the above is it possible to bring down Nilesats?
2. Everything is connected but am getting an unstable strength of 55% and a nil Quality reading.where could i have gone wrong ?
3. The meter connected to LNB shows a strength of 80-92% but the decoder as above nakosea wapi ?
HELP ME OUT
I managed to upgrade to V3.20 could this affect my chances ?
Nataka kulipa fundi nikishindwa pliz help me out @ Kungu1,Ranksat, Vince9,all forumists !

Im in kiambu n willing to assist n spread asas to u



[ljumuso]

Afternoon to all bro's i am a newbie, just starting to sit up. hope i am welkam. Am at Kiambu, Ndumberi.Now to my question.
1. I have a 6ft pf, 4950h, Eurostar twin n a stargold satelite meter. with the above is it possible to bring down Nilesats?
2. Everything is connected but am getting an unstable strength of 55% and a nil Quality reading.where could i have gone wrong ?
3. The meter connected to LNB shows a strength of 80-92% but the decoder as above nakosea wapi ?
HELP ME OUT
I managed to upgrade to V3.20 could this affect my chances ?
Nataka kulipa fundi nikishindwa pliz help me out @ Kungu1,Ranksat, Vince9,all forumists !

Check whether your cable is well connected on the cable ends. Ensure there is no shortcircuit on the cable from your decoder to lnb...otherwise if your meter is locking on signal it is ur reciever cable with problem......try connecting meter on the cable to decoder to see whether it works..thnk



[Vince9]

Hey bro I would appreciate to c how you have managed to bring down the 3 birds on a 130. I have one but only managing to give me the 7w.
A diagram will be highly helpful.
Thanks

Hi klevgit,

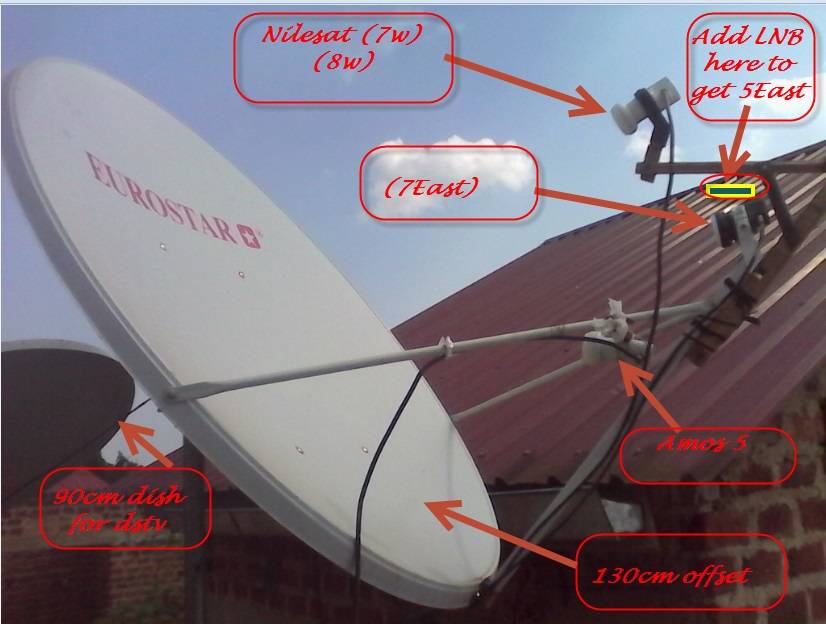

i am at work and most likely will be home when it's dark. i have a photo from last year which can give you an idea how to handle this. there is a blank position which i have highlighted where an extra KU lnb can be added to get 5East too. on Friday when am home and working on my setup. i will take a new/clearer picture and share with you. Currently you can have a look at one i took previously.



[kassych]

Hi Kassych, I will be getting my Openbox V8 combo receiver soon. Your review on DVB T2 part was very good unfortunately am unable to access the above review...it says the video is private :disapointed:

sorry..was in a hurry.. its now viewable..enjoy.



[klevgit]

hi klevgit,
i am at work and most likely will be home when it's dark. I have a photo from last year which can give you an idea how to handle this. There is a blank position which i have highlighted where an extra ku lnb can be added to get 5east too. On friday when am home and working on my setup. I will take a new/clearer picture and share with you. Currently you can have a look at one i took previously.

thank you very much bro.
And if I may what was your primary and could you probably manage to remember the measurements of the fabrications / spacing?



[Vince9]

Afternoon to all bro's i am a newbie, just starting to sit up. hope i am welkam. Am at Kiambu, Ndumberi.Now to my question.
1. I have a 6ft pf, 4950h, Eurostar twin n a stargold satelite meter. with the above is it possible to bring down Nilesats?
2. Everything is connected but am getting an unstable strength of 55% and a nil Quality reading.where could i have gone wrong ?
3. The meter connected to LNB shows a strength of 80-92% but the decoder as above nakosea wapi ?
HELP ME OUT
I managed to upgrade to V3.20 could this affect my chances ?
Nataka kulipa fundi nikishindwa pliz help me out @ Kungu1,Ranksat, Vince9,all forumists !

Welcome on board GIDEN,
Now that you have some signal strength and quality, it looks like you have almost nailed this bird. Try Skewing the LNB while monitoring the signal meters. remember to do it as slow as possible and skew angles are very sensitive and also make sure your cable ends are tight both at the LNB and the receiver. Good luck bro.



[Vince9]

Afternoon to all bro's i am a newbie, just starting to sit up. hope i am welkam. Am at Kiambu, Ndumberi.Now to my question.
1. I have a 6ft pf, 4950h, Eurostar twin n a stargold satelite meter. with the above is it possible to bring down Nilesats?
2. Everything is connected but am getting an unstable strength of 55% and a nil Quality reading.where could i have gone wrong ?
3. The meter connected to LNB shows a strength of 80-92% but the decoder as above nakosea wapi ?
HELP ME OUT
I managed to upgrade to V3.20 could this affect my chances ?
Nataka kulipa fundi nikishindwa pliz help me out @ Kungu1,Ranksat, Vince9,all forumists !

Sorry Giden,
I i missed the part where you said "Nill Quality", If this is the case, Please Make sure your Pole Is Totally and completely upright so that you can get the angles correctly. Also try using a TP like the one for Fox Movies for NILESAT, when you get this working, then try a tougher one like CNN. If you are still unable to nail it, please report back and we will do this step by step. :rockon:



[Vince9]

thank you very much bro.
And if I may what was your primary and could you probably manage to remember the measurements of the fabrications / spacing?

Klevit,
7 East is the primary LNB. As for the Measurements, i can only provide after physical measuring because, as you can see in the picture, i never fabricated anything, i used light peaces of timber and Copper wires to link everything up. I intend to do the fabrications but i guess i am getting too comfortable since whatever i did is working verywell for me. You can also chechout FTA Nash's posts where you will find Well Fabricated robotic arms of the same setup. He is the one who inspired me to do this setup too.
1. Start with 7east, Then add Nilesat about 30cm above it, Amos 5 would be roughly 16cm below and 5E would seat diretly ontop of the primary LNB(7e).

On Friday, I promise to give you full details as pictures since that is the day I am dedicating to sarticifying my ASAS symptoms that are begining to show up again for the Uganda Local channels.



[hotbird]

Anyone who has nabbed SES 4 ,@ 22°W C BAND please provide with the strongest tp coz the WINNERS CHAPEL CHANNEL have migrated to that bird from 62°E and I have clients who need repointing



[aba2013]

Hi klevgit,
i am at work and most likely will be home when it's dark. i have a photo from last year which can give you an idea how to handle this. there is a blank position which i have highlighted where an extra KU lnb can be added to get 5East too. on Friday when am home and working on my setup. i will take a new/clearer picture and share with you. Currently you can have a look at one i took previously.

Hi Vince9,

Very impressed by your setup!kindly confirm if you are able to receive the European Beam of 7E with the set up.



[uptownflame]

Hi to you all. Am a newbie in this forum and will very much appreciate anyone's assistance on this issue. I recently acquired strong 4950h. After upgrading software from V3 11p to V3 20p I noticed I lost some nice channels like Nat Geo. So I decided to load back v3 11p but unfortunately decoder won't downgrade. Is there a workaround for this, to revert back to V3 11p. N.b Any installer Kiambu, Thika or Nairobi please p.m . Would like you to track mbc for me different dish.



[Vince9]

Hi Vince9,

Very impressed by your setup!kindly confirm if you are able to receive the European Beam of 7E with the set up.

hi ABA2013,

thanks for the comment. Yes i do receive the European beam but it's very unstable and only on clear days BBC Parsian shows up cracking at 55% - 58%. i also acquired an INVERTO ULTRA BLACK QUARD lnd to improve the signal but ended up getting only BBC PERSIAN at 60% on a sunny day with the necoledons(11.554v) coming in at 56% which is also unwatchable. My conclution was to Get my self a 240cm PF or a 150cm offset. that way i will bring down the mighty European beam with a descent signal quality and strength. still finding ways of sqeazing my budget to get the 240cm PF, bIG offsets and not easily available in KLA according to my research.



[Asanyo]

Hello FTA family, ive just seen this on fb...
Eutelsat 7 West A @ 7.3° West
‪#‎beIN‬ Sports...on
11449 H 27500 5/6
DVB-S/MPEG-2
fta



[aizen]

Hello FTA family, ive just seen this on fb...
Eutelsat 7 West A @ 7.3° West
‪#‎beIN‬ Sports...on
11449 H 27500 5/6
DVB-S/MPEG-2
fta

Confirmed. It's called Bein sport SD, very clear videos
