Hey guys Who sells an 8ft motorised dish locally



[GITHS]

Hey guys Who sells an 8ft motorised dish locally

You can motorise yours

Sent using Jamii Forums mobile app



[freq]

Hey guys Who sells an 8ft motorised dish locally

Buy a motor, fabricate. You may need a mover box if don't want to move it by manual swithes.​



[Aaaaarrghhh]

Buy a motor, fabricate. You may need a mover box if don't want to move it by manual swithes.​

Motors ... i can source them locally



[Aaaaarrghhh]

You can motorise yours

Sent using Jamii Forums mobile app

I want to know where i can get those parts to motorize locally



[freq]

I want to know where i can get those parts to motorize locally

Unfortunately you may have to import from eBay.. etc



[Aaaaarrghhh]

Unfortunately you may have to import from eBay.. etc

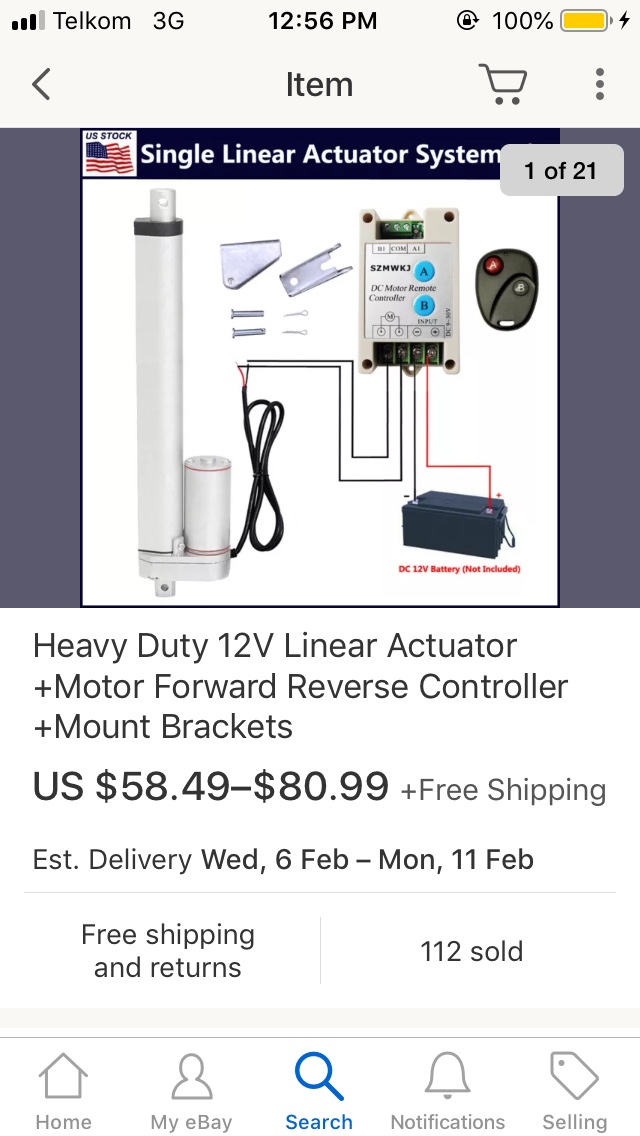

is this the one



[freq]

is this the one

That's good...

However 8ft is too heavy for a 12v actuator..
Especially if you want to lift it off The horizon from measat to is20 oftenly.

A 24 or 36v actuator can do better for long​



[GITHS]

Mine I bought at Jumia but the 24v one I have seen 4 inches stoke length

Sent using Jamii Forums mobile app



[GITHS]

That's good...

However 8ft is too heavy for a 12v actuator..
Especially if you want to lift it off The horizon from measat to is20 oftenly.

A 24 or 36v actuator can do better for long​

By the what is the approximate weight of 8ft dish

Sent using Jamii Forums mobile app



[Aaaaarrghhh]

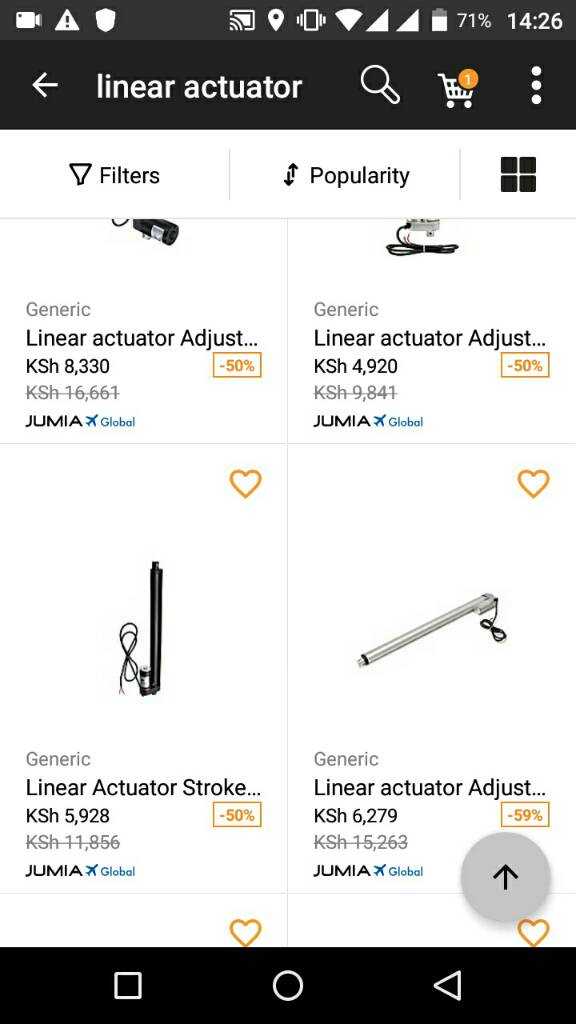

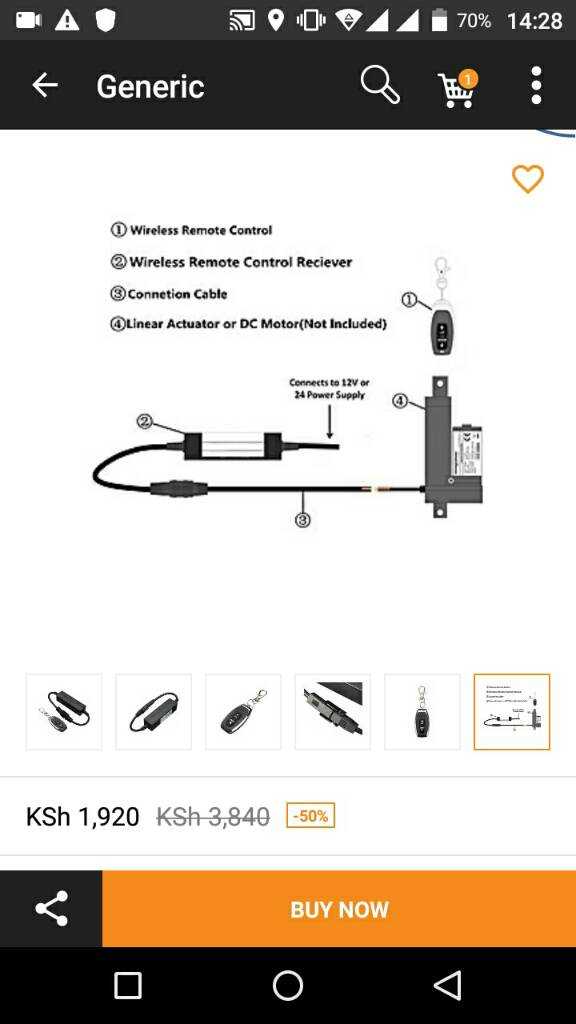

Mine I bought at Jumia but the 24v one I have seen 4 inches stoke length View attachment 1009432View attachment 1009433

Sent using Jamii Forums mobile app

This one that you bought from jumuia does it work ... can i get to the schematics



[GITHS]

This one that you bought from jumuia does it work ... can i get to the schematics

What schematics

Sent using Jamii Forums mobile app



[GITHS]

What schematics

Sent using Jamii Forums mobile app

This is my fabrication

Sent using Jamii Forums mobile app



[Aaaaarrghhh]

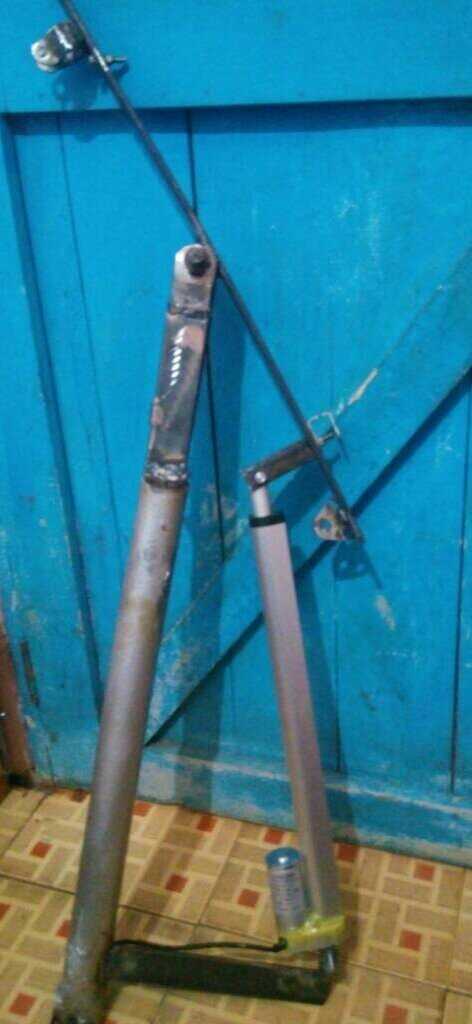

This is my fabricationView attachment 1009579View attachment 1009580

Sent using Jamii Forums mobile app

Ikiwa installed kwa dish itakuwa inaakaa aje ... that what i want to see



[GITHS]

Ikiwa installed kwa dish itakuwa inaakaa aje ... that what i want to see

Mine swing from east to west

Sent using Jamii Forums mobile app



[mzawa10]

hi ,
Help please!!!!!!
Where should my dish point if I want to track EUTELSAT 10A at 10.04??????.
thanks.



[GITHS]

Mine swing from east to west

Sent using Jamii Forums mobile app

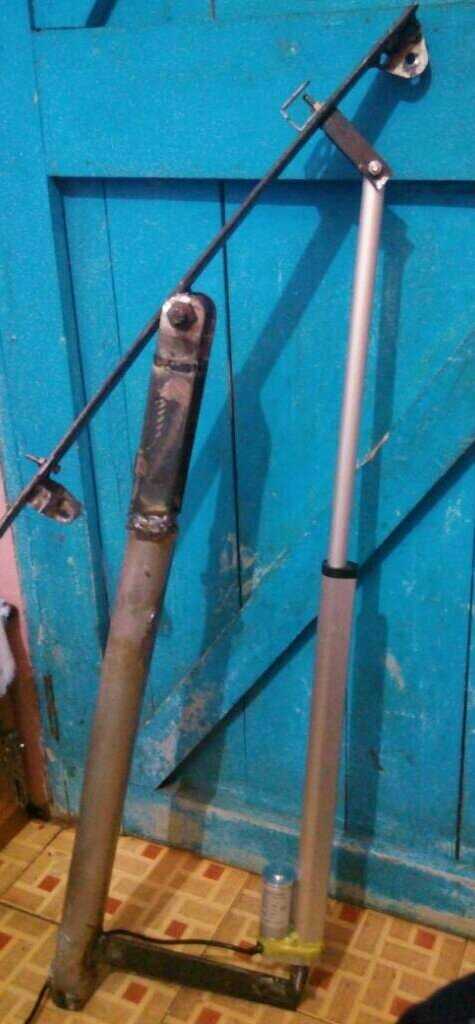

This is freq setup picture

Sent using Jamii Forums mobile app



[freq]

By the what is the approximate weight of 8ft dish

Sent using Jamii Forums mobile app

A China made 8ft weighs about 60 kg in totallity
But what matters is the maximum pull force required to lift the dish face from farthest east or west
From my experience about 30kg pull force is required. Thats 300 Newtons

Most 12 V actuators are rated 220N pull force

If you place it to pull at 300N, the motor will overdraw current and overheat . It'll fry in time..



[GITHS]

A China made 8ft weighs about 60 kg in totallity
But what matters is the maximum pull force required to lift the dish face from farthest east or west
From my experience about 30kg pull force is required. Thats 300 Newtons

Most 12 V actuators are rated 220N pull force

If you place it to pull at 300N, the motor will overdraw current and overheat . It'll fry in time..

My actuator is rated 1500N and is 12v

Sent using Jamii Forums mobile app



[freq]

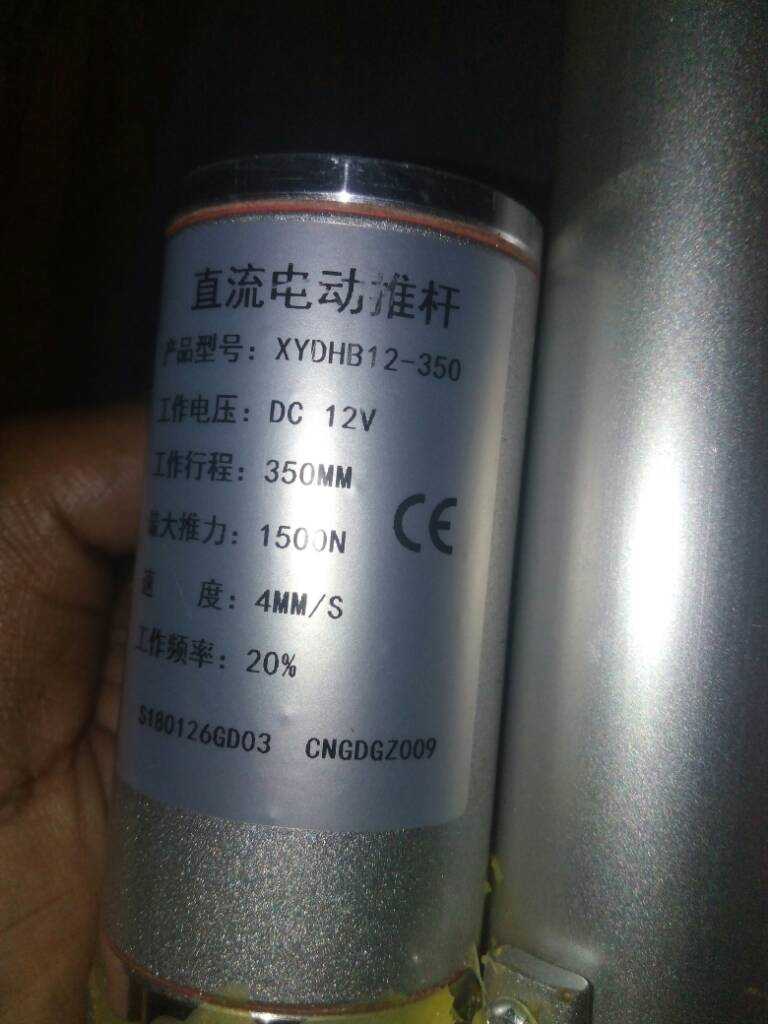

My actuator is rated 1500N and is 12vView attachment 1009696

Sent using Jamii Forums mobile app

Man don't trust these Chinese..
1500N is 150kg... That's sack of maize and a half..

Do you think it can pull a whole sack of maize?

Please try. Something gonna blow. And certainly it's not the sack of maize.

I've got a 36V actuator I imported from Canada and it's rated 1200N. I still don't even trust it
