Vifaa kwa ajili ya Electrical & Electronic Projects

[Folota Rubber Stamp]

Kwa wanamaomalizia masomo ya uhandisi kada za Electrical, Electronics , Telecom & computer kama kawaida mwaka wa mwisho mna rungu la project ili kukamilisha masomo yenu ya uhandisi, baadhi mnalazimika kutengeneza prototype kama matakwa ya kukidhi vigezo katika vyuo vyenu.

Moja ya changamoto kubwa ni vifaa kazi, hivyo basi nauza vifaa mbalimbali vya kuwezesha kukamilisha project yako ewe mhandisi mtarajiwa,

> Pia nitatoa ushauri bure wa mawazo pale unapokwama kwenye project yako,

> Nitaweka link [soon] ya software zote muhimu zitakazo kusaidia kufanya designing, simulation & prototype implementation.
Download hapa

> Kuna wale wenzangu na mimi hawataki huo usumbufu kabisa wa kupambana na madude wanayodhani ni ndoto kwao kuelewa tunaweza fanya kitu baada ya mazungumzo.

>Huduma nyinginezo ni Simulation, Program loading, PCB designing , Programming AVR family & PIC family.

Hizi baadhi ya components nilizonazo

Crystal Resonators Oscillator
5mm 940nm LEDs infrared emitter and IR receiver diode
1/4W Metal Film Resistors
LEDs (Red Yellow Green Orange Blue White )
10K ohm Trim Pot
20K ohm Trim Pot
Micro switch push button
8pins DIL DIP IC Socket PCB Mount
10K ohm Linear Rotary Potentiometer
LM358N OPAMP DUAL
On/off Toggle Switch Micro Power Switch 3PIN
40 PIN IC Socket PIC Socket
PIC16F877A
L3803 Power MOSFET
PIR Motion Sensor Detector Module
NE555 DIP-8 Timers
Laser Receiver Module
HD44780 Character LCD Display Module
Laser Transmitter Sensor Module
Electrolytic Capacitors
Mini Gear Micro Servo motors
Breadboard Board
1000uF 25V Electrolytic Capacitor
2 Pin Plug-in Screw Terminal Block
KBP307 Rectifier Flat Bridge Rectifier
L7805 Voltage Regulator 5V IC
4700uF 25V Electrolytic Capacitor
Copper Clad Plat (PCB Printed Circuit Board)
Photoresistor LDR
5v Active Buzzer Continous Beep
3 x 4 12 Key Matrix Membrane Switch Keypad
Ceramic Capacitor
5V DC Power Relay
Rectifier Diodes
Transistors
MG995 Servo motor Metal Gear High Torque
Ultrasonic Distance Sensor Module
Ultra Violet LED
PIC16F628A
Cap Self-locking Type Square Blue Button Switch Control
Reed Switches
Aluminum Heat Sink TO-220
IRF540N Power MOSFET
Universal Board prototyping
16pin DIP IC Socket Adaptor Solder Type Socket
PCB UV Curable Solder Mask
Soldering Paste
USB To RS232 TTL Converter Adapter
UNO R3 ATMEGA328P
HC-06 Wireless Bluetooth Transeiver
L298N Dual Stepper Motor Driver Controller
40 Pin Male Single Row Pin Header Strip
L293D Four-Channel Motor Driver IC
LM338 Voltage Regulator
16 Pin Single Row Female Straight Header Pin Strip
40Pin 2.54mm Single Row Right Angle Pin Header
Dupont 10CM Male To Female Jumper Wire Ribbon Cable for Arduino
Humidity Detection Sensor Module
50K ohm 3362P Trim Pot
AMT1001 Resistive Temperature And Humidity Sensor Module
5A range Current Sensor Module
315Mhz RF transmitter and receiver
SCHOTTKY DIODE
LM2576 IC REG BUCK 5.0V 3A
Soldering Wire
433Mhz HC-12 SI4463 Wireless Serial Port Module 1000m
HM-10 BLE Bluetooth 4.0
Tilt Sensor
UA741CN ST OPERATIONAL AMPLIFIER
Toroid Core Inductors 100uH 6A Coil
HEAT SHRINK TUBING Wire
L7812CV TO-220 Voltage Regulator 12V
TO-220 Insulation Pads Silicone Heatsink
Double BTS7960B DC 43A Stepper Motor Driver H-Bridge PWM
DC-DC 2V-5V to 5V Boost Step Up Power Voltage Converter 2A
ATmega328 16M 5V Micro-controller
RightAngle Water Level Ball Float Switch
2.2uH-680uH Power Shielded Inductors
Micro Roller Lever Arm Normally Open Close Limit Switch
Coin Selector Acceptor Support One Kind Token/Coin

Wasiliana nami kupitia:
PM
domseller112@gmail.com
0759143420
0656785599
Dodoma, Tanzania

Karibuni.

Edit 27-11-2018
Nimeweka link folder la megashare zipo software mbalimbali kama Proteus, Circuit wizard, microC na nyinginezo.

Edit 28-11-2018
Project Tittles (Electrical & Electronics) Link hapa

Soon nitaweka tena sample reports za project mbalimbali upitie na uangalie namna ya kuandaa project report kwa wale wanaopaswa kuandaa kitabu itawasaidia, pia nitaweka list ya projects zilizofanyika hapa TZ vyuo mbalimbali kama ungehitaji kupata ideas za nini cha kufanya.



[ymollel]

Kwa wanamaomalizia masomo ya uhandisi kada za Electrical, Electronics , Telecom & computer kama kawaida mwaka wa mwisho mna rungu la project ili kukamilisha masomo yenu ya uhandisi, baadhi mnalazimika kutengeneza prototype kama matakwa ya kukidhi vigezo katika vyuo vyenu.

Moja ya changamoto kubwa ni vifaa kazi, hivyo basi nauza vifaa mbalimbali vya kuwezesha kukamilisha project yako ewe mhandisi mtarajiwa,

> Pia nitatoa ushauri bure wa mawazo pale unapokwama kwenye project yako,

> Nitaweka link [soon] ya software zote muhimu zitakazo kusaidia kufanya designing, simulation & prototype implementation.

> Kuna wale wenzangu na mimi hawataki huo usumbufu kabisa wa kupambana na madude wanayodhani ni ndoto kwao kuelewa tunaweza fanya kitu baada ya mazungumzo.

>Huduma nyinginezo ni Simulation, Program loading, PCB designing , Programming AVR family & PIC family.

Hizi baadhi ya components nilizonazo

Crystal Resonators Oscillator
5mm 940nm LEDs infrared emitter and IR receiver diode
1/4W Metal Film Resistors
LEDs (Red Yellow Green Orange Blue White )
10K ohm Trim Pot
20K ohm Trim Pot
Micro switch push button
8pins DIL DIP IC Socket PCB Mount
10K ohm Linear Rotary Potentiometer
LM358N OPAMP DUAL
On/off Toggle Switch Micro Power Switch 3PIN
40 PIN IC Socket PIC Socket
PIC16F877A
L3803 Power MOSFET
PIR Motion Sensor Detector Module
NE555 DIP-8 Timers
Laser Receiver Module
HD44780 Character LCD Display Module
Laser Transmitter Sensor Module
Electrolytic Capacitors
Mini Gear Micro Servo motors
Breadboard Board
1000uF 25V Electrolytic Capacitor
2 Pin Plug-in Screw Terminal Block
KBP307 Rectifier Flat Bridge Rectifier
L7805 Voltage Regulator 5V IC
4700uF 25V Electrolytic Capacitor
Copper Clad Plat (PCB Printed Circuit Board)
Photoresistor LDR
5v Active Buzzer Continous Beep
3 x 4 12 Key Matrix Membrane Switch Keypad
Ceramic Capacitor
5V DC Power Relay
Rectifier Diodes
Transistors
MG995 Servo motor Metal Gear High Torque
Ultrasonic Distance Sensor Module
Ultra Violet LED
PIC16F628A
Cap Self-locking Type Square Blue Button Switch Control
Reed Switches
Aluminum Heat Sink TO-220
IRF540N Power MOSFET
Universal Board prototyping
16pin DIP IC Socket Adaptor Solder Type Socket
PCB UV Curable Solder Mask
Soldering Paste
USB To RS232 TTL Converter Adapter
UNO R3 ATMEGA328P
HC-06 Wireless Bluetooth Transeiver
L298N Dual Stepper Motor Driver Controller
40 Pin Male Single Row Pin Header Strip
L293D Four-Channel Motor Driver IC
LM338 Voltage Regulator
16 Pin Single Row Female Straight Header Pin Strip
40Pin 2.54mm Single Row Right Angle Pin Header
Dupont 10CM Male To Female Jumper Wire Ribbon Cable for Arduino
Humidity Detection Sensor Module
50K ohm 3362P Trim Pot
AMT1001 Resistive Temperature And Humidity Sensor Module
5A range Current Sensor Module
315Mhz RF transmitter and receiver
SCHOTTKY DIODE
LM2576 IC REG BUCK 5.0V 3A
Soldering Wire
433Mhz HC-12 SI4463 Wireless Serial Port Module 1000m
HM-10 BLE Bluetooth 4.0
Tilt Sensor
UA741CN ST OPERATIONAL AMPLIFIER
Toroid Core Inductors 100uH 6A Coil
HEAT SHRINK TUBING Wire
L7812CV TO-220 Voltage Regulator 12V
TO-220 Insulation Pads Silicone Heatsink
Double BTS7960B DC 43A Stepper Motor Driver H-Bridge PWM
DC-DC 2V-5V to 5V Boost Step Up Power Voltage Converter 2A
ATmega328 16M 5V Micro-controller
RightAngle Water Level Ball Float Switch
2.2uH-680uH Power Shielded Inductors
Micro Roller Lever Arm Normally Open Close Limit Switch
Coin Selector Acceptor Support One Kind Token/Coin

Wasiliana nami kupitia:
PM
domseller112@gmail.com
+255712132888

Karibuni.

nimeipenda hii,

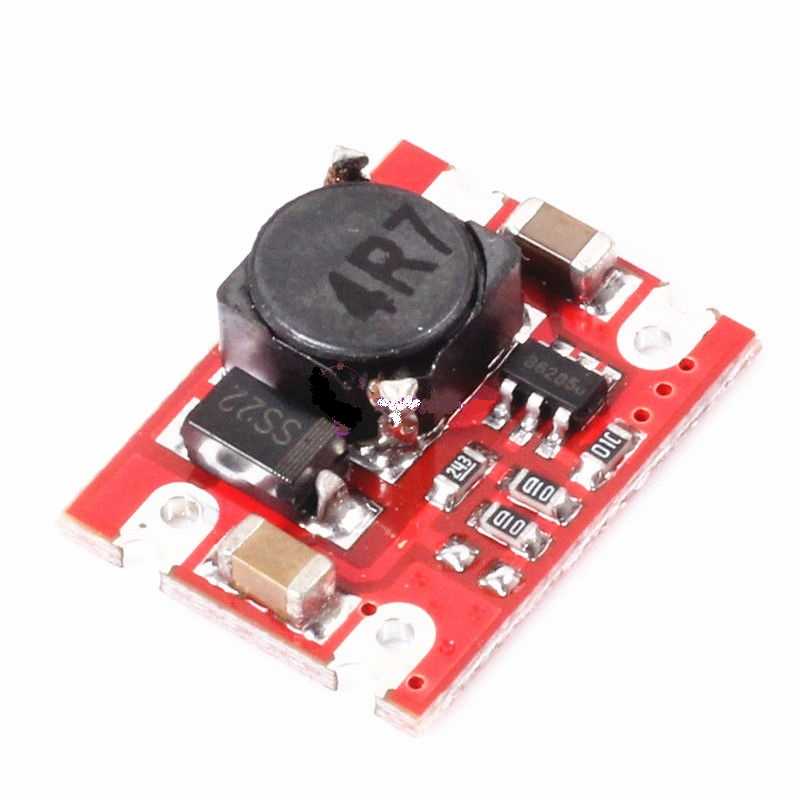

DC-DC 2V-5V to 5V Boost Step Up Power Voltage Converter 2A naweza kuona picha yake na bei unayouzia? Thanks



[Folota Rubber Stamp]

nimeipenda hii,
DC-DC 2V-5V to 5V Boost Step Up Power Voltage Converter 2A naweza kuona picha yake na bei unayouzia? Thanks

7000/=



[the great wizard]

Kwa wanamaomalizia masomo ya uhandisi kada za Electrical, Electronics , Telecom & computer kama kawaida mwaka wa mwisho mna rungu la project ili kukamilisha masomo yenu ya uhandisi, baadhi mnalazimika kutengeneza prototype kama matakwa ya kukidhi vigezo katika vyuo vyenu.

Moja ya changamoto kubwa ni vifaa kazi, hivyo basi nauza vifaa mbalimbali vya kuwezesha kukamilisha project yako ewe mhandisi mtarajiwa,

> Pia nitatoa ushauri bure wa mawazo pale unapokwama kwenye project yako,

> Nitaweka link [soon] ya software zote muhimu zitakazo kusaidia kufanya designing, simulation & prototype implementation.

> Kuna wale wenzangu na mimi hawataki huo usumbufu kabisa wa kupambana na madude wanayodhani ni ndoto kwao kuelewa tunaweza fanya kitu baada ya mazungumzo.

>Huduma nyinginezo ni Simulation, Program loading, PCB designing , Programming AVR family & PIC family.

Hizi baadhi ya components nilizonazo

Crystal Resonators Oscillator
5mm 940nm LEDs infrared emitter and IR receiver diode
1/4W Metal Film Resistors
LEDs (Red Yellow Green Orange Blue White )
10K ohm Trim Pot
20K ohm Trim Pot
Micro switch push button
8pins DIL DIP IC Socket PCB Mount
10K ohm Linear Rotary Potentiometer
LM358N OPAMP DUAL
On/off Toggle Switch Micro Power Switch 3PIN
40 PIN IC Socket PIC Socket
PIC16F877A
L3803 Power MOSFET
PIR Motion Sensor Detector Module
NE555 DIP-8 Timers
Laser Receiver Module
HD44780 Character LCD Display Module
Laser Transmitter Sensor Module
Electrolytic Capacitors
Mini Gear Micro Servo motors
Breadboard Board
1000uF 25V Electrolytic Capacitor
2 Pin Plug-in Screw Terminal Block
KBP307 Rectifier Flat Bridge Rectifier
L7805 Voltage Regulator 5V IC
4700uF 25V Electrolytic Capacitor
Copper Clad Plat (PCB Printed Circuit Board)
Photoresistor LDR
5v Active Buzzer Continous Beep
3 x 4 12 Key Matrix Membrane Switch Keypad
Ceramic Capacitor
5V DC Power Relay
Rectifier Diodes
Transistors
MG995 Servo motor Metal Gear High Torque
Ultrasonic Distance Sensor Module
Ultra Violet LED
PIC16F628A
Cap Self-locking Type Square Blue Button Switch Control
Reed Switches
Aluminum Heat Sink TO-220
IRF540N Power MOSFET
Universal Board prototyping
16pin DIP IC Socket Adaptor Solder Type Socket
PCB UV Curable Solder Mask
Soldering Paste
USB To RS232 TTL Converter Adapter
UNO R3 ATMEGA328P
HC-06 Wireless Bluetooth Transeiver
L298N Dual Stepper Motor Driver Controller
40 Pin Male Single Row Pin Header Strip
L293D Four-Channel Motor Driver IC
LM338 Voltage Regulator
16 Pin Single Row Female Straight Header Pin Strip
40Pin 2.54mm Single Row Right Angle Pin Header
Dupont 10CM Male To Female Jumper Wire Ribbon Cable for Arduino
Humidity Detection Sensor Module
50K ohm 3362P Trim Pot
AMT1001 Resistive Temperature And Humidity Sensor Module
5A range Current Sensor Module
315Mhz RF transmitter and receiver
SCHOTTKY DIODE
LM2576 IC REG BUCK 5.0V 3A
Soldering Wire
433Mhz HC-12 SI4463 Wireless Serial Port Module 1000m
HM-10 BLE Bluetooth 4.0
Tilt Sensor
UA741CN ST OPERATIONAL AMPLIFIER
Toroid Core Inductors 100uH 6A Coil
HEAT SHRINK TUBING Wire
L7812CV TO-220 Voltage Regulator 12V
TO-220 Insulation Pads Silicone Heatsink
Double BTS7960B DC 43A Stepper Motor Driver H-Bridge PWM
DC-DC 2V-5V to 5V Boost Step Up Power Voltage Converter 2A
ATmega328 16M 5V Micro-controller
RightAngle Water Level Ball Float Switch
2.2uH-680uH Power Shielded Inductors
Micro Roller Lever Arm Normally Open Close Limit Switch
Coin Selector Acceptor Support One Kind Token/Coin

Wasiliana nami kupitia:
PM
domseller112@gmail.com
+255712132888
Dodoma, Tanzania

Karibuni.

i'll be in touch
office ipo dom maeneo gani



[Folota Rubber Stamp]

i'll be in touch
office ipo dom maeneo gani

Ofisi bado ila napatikana Dodoma mjini.



[Folota Rubber Stamp]

Updated



[Folota Rubber Stamp]

Kwa wanaohitaji kutengenezewa PCB kulingana na michoro yao pia nafanya kwa bei nafuu, naandaa PCB pamoja na kutoboa matundu, kazi yako itakua kufanya soldering ya component zako.

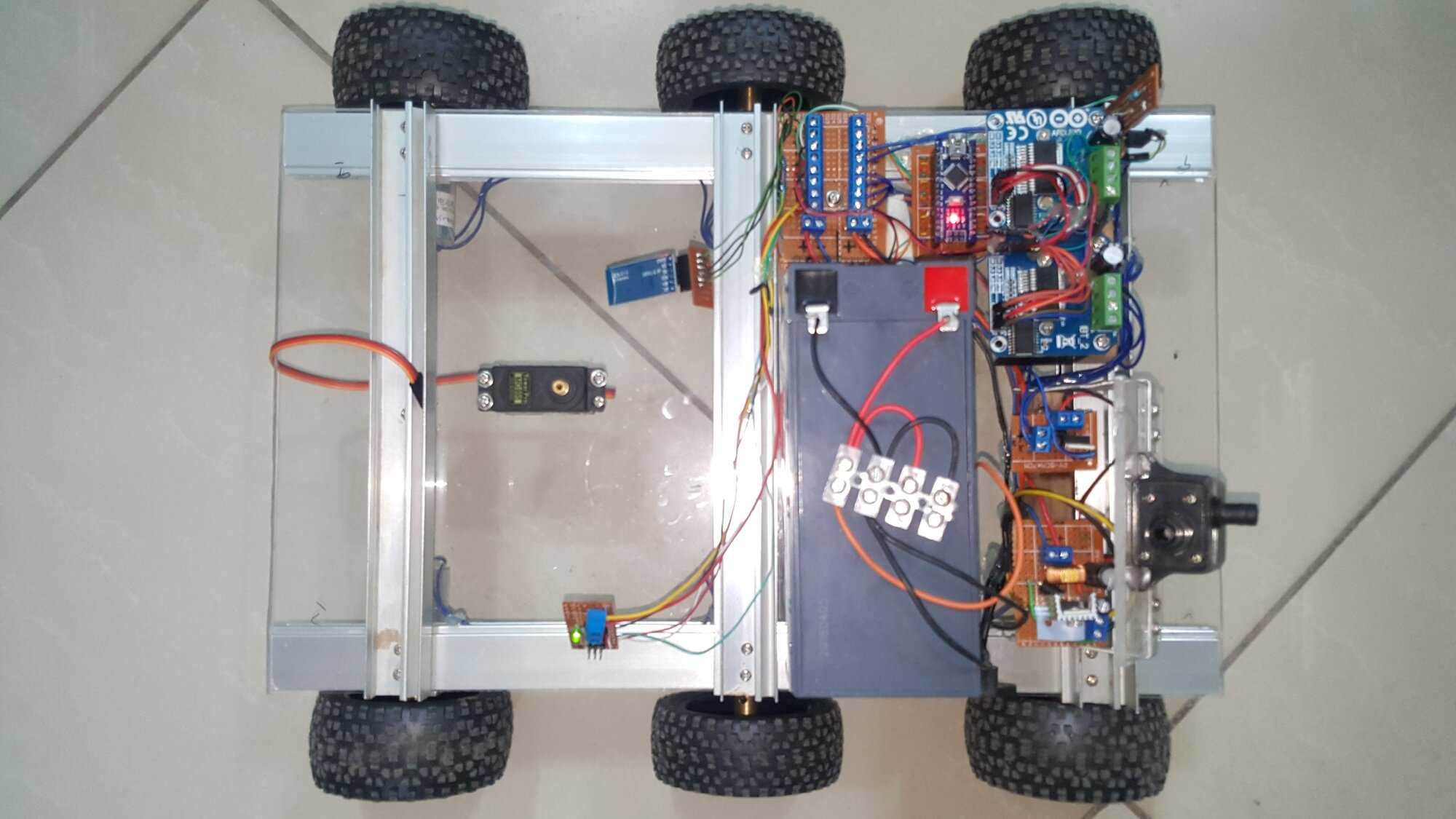

Sample ya kazi yangu



[dronedrake]

naitaji soldering paste ( na hot blower gun kama unayo ) bei, naipataje kwa Dar



[Folota Rubber Stamp]

naitaji soldering paste ( na hot blower gun kama unayo ) bei, naipataje kwa Dar

Mkuu soldering paste na hot air blower sina, ila kuna duka lipo pale mtaa wa congo karibu na round about wanauza sana vifaa vya electronics jina nimelisahau watakua nazo. Na ukikosa pale nenda maduka wanauza spare za simu pia huwa wanaziuza.
Ila bei za hot air station ni kati ya 90000/= na kuendelea inategemea na model.


Duka lipo maeneo ya hapo nilipozungushia red.



[Folota Rubber Stamp]

**** Project tittles added.



[Folota Rubber Stamp]

Je unahitaji msaada kwenye project yako? usisite kuwasiliana nami kwa ushauri na maboresho ya wazo lako.



[the great wizard]

Je unahitaji msaada kwenye project yako? usisite kuwasiliana nami kwa ushauri na maboresho ya wazo lako.

View attachment 983875
View attachment 983873
View attachment 983870
View attachment 983871
View attachment 983869

View attachment 983878
View attachment 983879
View attachment 983880
View attachment 983881
View attachment 983882
View attachment 983883

mkuu umetumia arduino?



[Jocasta]

Kwa wanamaomalizia masomo ya uhandisi kada za Electrical, Electronics , Telecom & computer kama kawaida mwaka wa mwisho mna rungu la project ili kukamilisha masomo yenu ya uhandisi, baadhi mnalazimika kutengeneza prototype kama matakwa ya kukidhi vigezo katika vyuo vyenu.

Moja ya changamoto kubwa ni vifaa kazi, hivyo basi nauza vifaa mbalimbali vya kuwezesha kukamilisha project yako ewe mhandisi mtarajiwa,

> Pia nitatoa ushauri bure wa mawazo pale unapokwama kwenye project yako,

> Nitaweka link [soon] ya software zote muhimu zitakazo kusaidia kufanya designing, simulation & prototype implementation.
Download hapa

> Kuna wale wenzangu na mimi hawataki huo usumbufu kabisa wa kupambana na madude wanayodhani ni ndoto kwao kuelewa tunaweza fanya kitu baada ya mazungumzo.

>Huduma nyinginezo ni Simulation, Program loading, PCB designing , Programming AVR family & PIC family.

Hizi baadhi ya components nilizonazo

Crystal Resonators OscillatorThanks
5mm 940nm LEDs infrared emitter and IR receiver diode
1/4W Metal Film Resistors
LEDs (Red Yellow Green Orange Blue White )
10K ohm Trim Pot
20K ohm Trim Pot
Micro switch push button
8pins DIL DIP IC Socket PCB Mount
10K ohm Linear Rotary Potentiometer
LM358N OPAMP DUAL
On/off Toggle Switch Micro Power Switch 3PIN
40 PIN IC Socket PIC Socket
PIC16F877A
L3803 Power MOSFET
PIR Motion Sensor Detector Module
NE555 DIP-8 Timers
Laser Receiver Module
HD44780 Character LCD Display Module
Laser Transmitter Sensor Module
Electrolytic Capacitors
Mini Gear Micro Servo motors
Breadboard Board
1000uF 25V Electrolytic Capacitor
2 Pin Plug-in Screw Terminal Block
KBP307 Rectifier Flat Bridge Rectifier
L7805 Voltage Regulator 5V IC
4700uF 25V Electrolytic Capacitor
Copper Clad Plat (PCB Printed Circuit Board)
Photoresistor LDR
5v Active Buzzer Continous Beep
3 x 4 12 Key Matrix Membrane Switch Keypad
Ceramic Capacitor
5V DC Power Relay
Rectifier Diodes
Transistors
MG995 Servo motor Metal Gear High Torque
Ultrasonic Distance Sensor Module
Ultra Violet LED
PIC16F628A
Cap Self-locking Type Square Blue Button Switch Control
Reed Switches
Aluminum Heat Sink TO-220
IRF540N Power MOSFET
Universal Board prototyping
16pin DIP IC Socket Adaptor Solder Type Socket
PCB UV Curable Solder Mask
Soldering Paste
USB To RS232 TTL Converter Adapter
UNO R3 ATMEGA328P
HC-06 Wireless Bluetooth Transeiver
L298N Dual Stepper Motor Driver Controller
40 Pin Male Single Row Pin Header Strip
L293D Four-Channel Motor Driver IC
LM338 Voltage Regulator
16 Pin Single Row Female Straight Header Pin Strip
40Pin 2.54mm Single Row Right Angle Pin Header
Dupont 10CM Male To Female Jumper Wire Ribbon Cable for Arduino
Humidity Detection Sensor Module
50K ohm 3362P Trim Pot
AMT1001 Resistive Temperature And Humidity Sensor Module
5A range Current Sensor Module
315Mhz RF transmitter and receiver
SCHOTTKY DIODE
LM2576 IC REG BUCK 5.0V 3A
Soldering Wire
433Mhz HC-12 SI4463 Wireless Serial Port Module 1000m
HM-10 BLE Bluetooth 4.0
Tilt Sensor
UA741CN ST OPERATIONAL AMPLIFIER
Toroid Core Inductors 100uH 6A Coil
HEAT SHRINK TUBING Wire
L7812CV TO-220 Voltage Regulator 12V
TO-220 Insulation Pads Silicone Heatsink
Double BTS7960B DC 43A Stepper Motor Driver H-Bridge PWM
DC-DC 2V-5V to 5V Boost Step Up Power Voltage Converter 2A
ATmega328 16M 5V Micro-controller
RightAngle Water Level Ball Float Switch
2.2uH-680uH Power Shielded Inductors
Micro Roller Lever Arm Normally Open Close Limit Switch
Coin Selector Acceptor Support One Kind Token/Coin

Wasiliana nami kupitia:
PM
domseller112@gmail.com
0759143420
0656785599
Dodoma, Tanzania

Karibuni.

Edit 27-11-2018
Nimeweka link folder la megashare zipo software mbalimbali kama Proteus, Circuit wizard, microC na nyinginezo.

Edit 28-11-2018
Project Tittles (Electrical & Electronics) Link hapa

Soon nitaweka tena sample reports za project mbalimbali upitie na uangalie namna ya kuandaa project report kwa wale wanaopaswa kuandaa kitabu itawasaidia, pia nitaweka list ya projects zilizofanyika hapa TZ vyuo mbalimbali kama ungehitaji kupata ideas za nini cha kufanya.



[Folota Rubber Stamp]

mkuu umetumia arduino?

Ndio, ila naweza tumia pia zozote kati ya hizi, raspberry pi, PIC, AVR na ARM.



[the great wizard]

mkuu umetumia arduino?

umeiprogram mwenyewe ama imekuja hivovhivo



[Folota Rubber Stamp]

umeiprogram mwenyewe ama imekuja hivovhivo

Lazima uifanyie programming, kuendana na functionality ya circuit yako, hapo unazungumzia inputs, outputs, & decisions to be made.



[the great wizard]

Lazima uifanyie programming, kuendana na functionality ya circuit yako, hapo unazungumzia inputs, outputs, & decisions to be made.

project imetulia bro, keep it up. alafu si upo dom?
naweza pata soldering gun kama hii 100 watts



[Folota Rubber Stamp]

project imetulia bro, keep it up. alafu si upo dom?
naweza pata soldering gun kama hii 100 watts
View attachment 985093

Nenda duka la star 8ᵗʰ street.



[the great wizard]

Nenda duka la star 8ᵗʰ street.

sawa mkuu



[Folota Rubber Stamp]

Je Ungependa kutengeneza PCB zako mwenyewe? kama jibu ni ndio basi nikutoe hofu kwani ni jambo linalofanyika kwa urahisi ikiwa una mahitaji yote muhimu, nitaelezea vitendea kazi vyote vinavyohitajika.
Sina haja ya kuelezea PCB ni nini kwani mpaka umeamua kufatilia uzi huu tayari unafahamu ni kitu gani.

Vitendea kazi vinavyohitajika.
1. Computer
2. Laser Printer
3. PCB designing software (Mimi natumia Proteus na Circuit wizard link zipo juu)
4. Copper clad
5. Heat transfer paper
6. Iron (III) chloride
7. Maji ya vuguvugu, mkasi, black marker pen, chombo
8. Pasi
9. Thinner
10. Mini drill

Hatua ya kwanza
Tayari una mchoro wa sakiti yako ambayo unatakiwa uwe umeshafanyia majaribio na kuhakiki kwamba inafanya kazi vizuri, katika hatua hii ya mwanzo utahitaji computer, printer na software ambayo utatumia kufanya designing ya njia za PCB. software zipo nyingi zinazofanya kazi ya designing chukua muda jifunze software mbili tatu, utakayoona ni rahisi na inaeleweka kwako nenda nayo hiyo,
Katika hii hatua kazi kubwa ni kuandaa njia za PCB na kuweka tundu za component unazotarajia kuzitumia katika kipimo chenye usahihi, yaani kama utatumia diode hakikisha size ya diode unayotumia inaendana na kipimo ulichoweka kwenye njia za pcb ili kurahisisha kazi wakati wa soldering, software karibu zote tayari zina library ya hizo components kwa hiyo hapo kazi imerahisishwa.
Kwa upande wa software kuna mengi ya kuzungumzia ila muhimu ni hayo niliyoelezea hapo juu kwasababu software yoyote utakayotumia hivo vitu lazima uzingatie japokuwa zinatofautiana vitu mbalimbali.
ukimaliza kufanya designing hakiki njia zako, final utaprint kazi yako kutumia printer ya laser na karatasi maalum inayoitwa heat transfer paper.

Hii ni circuit wizard ambapo kazi ya kutengeneza njia hufanyika

Baada ya kumaliza kufanya designing hatua inayofata ni printing na utaprint file lako kwa mfumo huu wa black & white yaani zile njia tu za sakiti yako. Hapa namna ya kuprint itategemeana na aina ya software unayotumia na settings zake.

Kwenye printer yako utaweka hii karatasi maalum ya heat transfer paper na kisha kuprint. Hatua ya kwanza inaishia hapa.

Itaendelea............
