It's connected between lnb and DiSEqC but in reverse ie the end marked to dish should be connected to decorder and the one marked to decorder should be connected to dish

I will try this probably in the evening. I have a 4-way Eurostar and an Eurostar in-line amp. I have tried them in the past to disastrous results (signal quality nose-diving). hotbird, do you place the amp before or after the switch (assuming the direction here is from lnb/satellite to receiver)



[Vicwa]

What's the name of that lnb?

conical scalar ring is cone shaped scalar ring ; used on C band lnb on offset dish for offset focus, and for rejecting or redirecting unwanted signals or noises off the lnb throat /scalar rings reduces interference on signals from adjacent satellite thereby improving lnb performance.you can order through Shop conical scalar ring online - Buy conical scalar ring for unbeatable low prices on AliExpress.com



[Gich]

Jana niloshinda kwa roof trying to get 7e n men i tell the bird is elusive. Nilikuwa napata African Beam na 10804V, na 10762. No amount of tweaking skewing kuhamisha Dish Nilitoka Ngo' the best signal nilipata ni 78% kwa 10804v.I promised to go back kwa roof nikipata a visual in the form of a Ka Tv.

GIDEN, did you finally make that trip to the roof? I was there yesterday to turn my 130cm offset and single inverto ultra black lnb towards 7W. I found this portable DVD player particularly helpful when maximizing the signal as it gives you a visual image of what a TV would. It has a AV in line that you connect to your stb
Image attched:



[GIDEN]

Gich yes i had considered buying the EVD but on second thought reasoned i should get a TFT screen and TV combo since the cost was the same. I am planning on visiting the roof soon. NB i chose the TFT becoz its bigger and will also use it with a CPU i had.



[Gich]

Strongest tps on Eutelsat 7 west A is 11227v,11488h (27500) and Nilesat 201 11785v 27500 carrying Dubai one.on the same 120cm offset I am also receiving Eutelsat 8 west A @ 8 W carrying Aljazeera America,MBC PRO SP 1-4 HD,KTV CH2....with just one LNB

Vicwa: so I followed your wise counsel and took a trip to the roof (okay wall cos the dish is fixed on the wall). Objective: turn my 130cm offset towards 7W for these goodies that you seem to really enjoy. Besides the usual tools, I also took with me: 1. My beloved budget analog satfinder (never disappoints), 2. Portable DVD player (EVD-to act as a TV), 3. Time and patience (very crucial). I connected the satfinder to the lnb and stb and the EVD player to the stb through the AV line (it has an AV in line). I input the tps that you provided and turned my dish from 7e (slightly to my right while behind it, if I am not wrong). In minutes (unlike the 7e), the satfinder started screaming like it had been bewitched! (stolen from an ASAS mate :laugh🙂. I knew I had hit a jackpot and indeed I had cos I had hit a Q90%. I fastened my dish and moved to the more elusive tps (with Q39%) and using the satmeter, I tweaked the lnb as I also changed the elevation on the dish and managed a Q78% on these. While still on the roof.wall, I did a blind scan of my srt 4950h. I am now the proud viewer (like you) of 986 channels, some of them in HD (okay, not all of them are showing). I am able to nab all the birds on 7W. Thank you very much for your encouragement. :clap2:

My next mission will be to try if the 130cm can nab 68.5e, as well as turn my 180cm towards 7e and try get all the goodies that this bird offers.

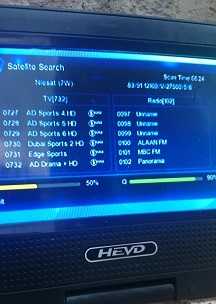

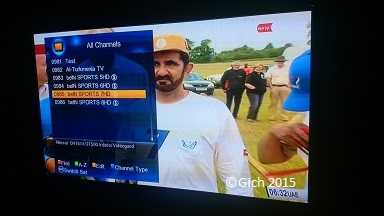

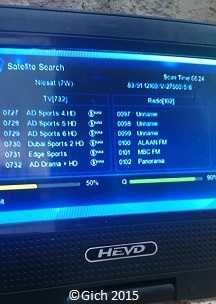

And now to the pictorial:
+ + =



[wafalme]

Use a LINE AMPLIFIER works very well with any DiSEqC switch but make sure you connect it opposite.Down at coast province some tps don't turn green until line AMPLIFIER is used at 7°E

inauzwa pesa ngapi hiyo Line amplifier?



[olason]

any guyz who needs cccam for test for canalsat reunion which open full package no freeze....

I don't mind having a ccam testline on canal. pls send to olaslasho2@yahoo.com. tanx



[CHIEF SOITA]

Communication with strong representative about KODI APP below.



Kindly give us more information on what is Kodi application? (in details)
Is it a new protocol for IPTV service?
If yes, then I need the library of this protocol.

Looking forward to hearing back from you.

Best regards,
EMILE ABI HANNA
Regional Sales Manager

P.O. Box: 11-5778
Beirut, Lebanon
Phone: +961 4 821128 ext 702
Mobile: +971 50 651 4012
Fax: +961 4 821577
Email: emile@strong-technologies.com


Thanks for visiting Kenya we were glad that you gave us your time. As you are in the process of creating a suitable combo receiver for East Africa I would please suggest that the technical team add the kodi application on it so that we may also take IPTV to another level.



[X-PONDER]

Vicwa: so I followed your wise counsel and took a trip to the roof (okay wall cos the dish is fixed on the wall). Objective: turn my 130cm offset towards 7W for these goodies that you seem to really enjoy. Besides the usual tools, I also took with me: 1. My beloved budget analog satfinder (never disappoints), 2. Portable DVD player (EVD-to act as a TV), 3. Time and patience (very crucial). I connected the satfinder to the lnb and stb and the EVD player to the stb through the AV line (it has an AV in line). I input the tps that you provided and turned my dish from 7e (slightly to my right while behind it, if I am not wrong). In minutes (unlike the 7e), the satfinder started screaming like it had been bewitched! (stolen from an ASAS mate :laugh🙂. I knew I had hit a jackpot and indeed I had cos I had hit a Q90%. I fastened my dish and moved to the more elusive tps (with Q39%) and using the satmeter, I tweaked the lnb as I also changed the elevation on the dish and managed a Q78% on these. While still on the roof.wall, I did a blind scan of my srt 4950h. I am now the proud viewer (like you) of 986 channels, some of them in HD (okay, not all of them are showing). I am able to nab all the birds on 7W. Thank you very much for your encouragement. :clap2:

My next mission will be to try if the 130cm can nab 68.5e, as well as turn my 180cm towards 7e and try get all the goodies that this bird offers.

And now to the pictorial:
View attachment 265137 + View attachment 265138 + View attachment 265140 = View attachment 265139

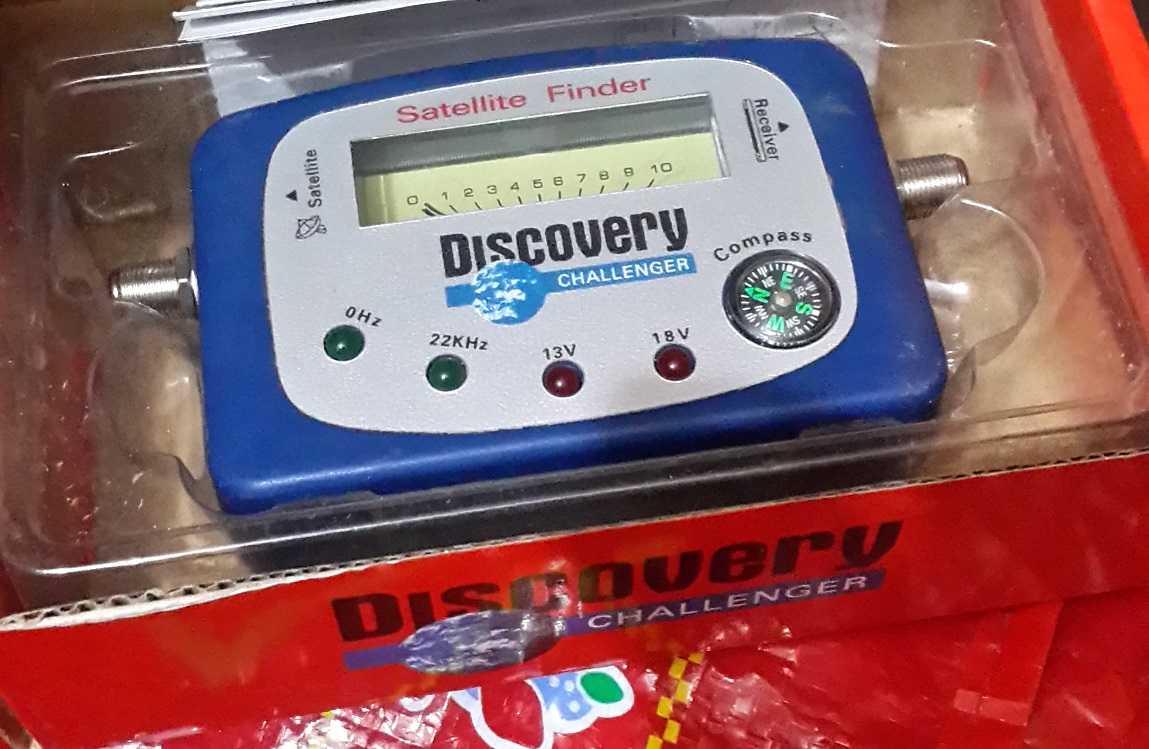

Hio sat finder ama meter ni hao much?



[Gich]

Gich yes i had considered buying the EVD but on second thought reasoned i should get a TFT screen and TV combo since the cost was the same. I am planning on visiting the roof soon. NB i chose the TFT becoz its bigger and will also use it with a CPU i had.

My bro souved me the EVD and I said thank you very much. And yes, it makes sense to buy what can multi-task



[Gich]

Hio sat finder ama meter ni hao much?

@xponder, I bought that one at approximately ksh. 1k. I also have a digital one that I bought at approximately 1.5k but I prefer the analog one. Viva FTA



[GIDEN]

Gich welkam. On another note i think u first changed the elevation since 15deg is a lot from 7e to 7w. The bird has some cookies you savour without fear of being $$$$



[GIDEN]

@Xponder bought mine at Digital life @ 1200 which is digital.(XCRUISER model)



[X-PONDER]

@xponder, I bought that one at approximately ksh. 1k. I also have a digital one that I bought at approximately 1.5k but I prefer the analog one. Viva FTA

If I send you the cash can you assist me to get it? Nitume 1k + 250 uniwekee kwa North Rift za Kitale



[X-PONDER]

@Xponder bought mine at Digital life @ 1200 which is digital.(XCRUISER model)

Gani poa zaidi? Hiyo ya Strong au XCRUISER?



[GIDEN]

Xponder hakuna ya strong, Gich ako na Discovery-analog na digital i think it was Stargold he can confirm. He was loosely stating its very good or effective.



[GIDEN]

I can tell you most are similar its only brand name



[X-PONDER]

Xponder hakuna ya strong, Gich ako na Discovery-analog na digital i think it was Stargold he can confirm. He was loosely stating its very good or effective.

True, ni Discovery as per his pics



[mrmwash]

Who has the list of channels for the new azam packages? This cloud cover is affecting my 7w



[hotbird]

I will try this probably in the evening. I have a 4-way Eurostar and an Eurostar in-line amp. I have tried them in the past to disastrous results (signal quality nose-diving). hotbird, do you place the amp before or after the switch (assuming the direction here is from lnb/satellite to receiver)

Between the dish and the switch
