Darkside! underworld! please limit this information to private box! Let us not destroy the good intention of this FTA forum together with our virtuous leader bw kungu.
African Satellite World and Sat Gear
African Satellite World and Sat Gear
- Thread starter kungu1
- Start date
Mmmmm, common with dsthieves installers, try shops along Luthuli especially those selling Ds*tv equipment. You could also try using the installers to get one for you. I know someone who used the installers at a whooping 17000 Kenya money!
emboko
JF-Expert Member
- Mar 5, 2014
- 229
- 62
Better than what? Can you give us some of it's glorious features? Or do i have to buy it and find out:frusty::brick: the hard way?:ballchain:
emboko
JF-Expert Member
- Mar 5, 2014
- 229
- 62
emboko
JF-Expert Member
- Mar 5, 2014
- 229
- 62
emboko
JF-Expert Member
- Mar 5, 2014
- 229
- 62
http://r22.imgfast.net/users/2211/13/25/38/avatars/852-8.jpg .have a look at that! :der:
techdee
JF-Expert Member
- Oct 28, 2013
- 302
- 67
The stargolg SG-20SF. Its an analogue buzzing satellite finder and costs around Ksh800. Its a good finder and has served many fta members on this forum
techdee
JF-Expert Member
- Oct 28, 2013
- 302
- 67
safe journey and if you have time you may visit mirjangi, remember he welcomed fellow ASAS members a few days ago.
CHIEF SOITA
Senior Member
- Feb 3, 2013
- 153
- 54
Did a blind scan on nss 12 and was pleasantly suprised when i got transponder 11045 V 40000 with 10 channels i.e SA cleen feed,racing channel,Tellytrack SA all encryted. Open channels Bicars,ekurhuleni,UCBN.
90cm with eurostar p8 old lnb.
90cm with eurostar p8 old lnb.
ASAS can drive you to unimaginable levels.
techdee
JF-Expert Member
- Oct 28, 2013
- 302
- 67
sure, after stumbling on K24 tv i realised they are shooting a live show on my hood, Juja. I am actually there right now to get a glimpse of their uplink sat dish. some pretty awesome tech here, ill post the pics soon and hope to talk to the technicians too.
techdee
JF-Expert Member
- Oct 28, 2013
- 302
- 67
the show has ended and the crew left. I have spoken to one technician and I will post the pics as well as our conversation as soon as I get to a PC.
CHIEF SOITA
Senior Member
- Feb 3, 2013
- 153
- 54
checked lyngsat and realized it was yamal.Yamal and nss 12 on one dish nice.Asas for life.
Mnyash
JF-Expert Member
- Feb 9, 2013
- 1,073
- 408
Most probably holycow that's for IPTV but I do not know I stand to be corrected:humble:
techdee
JF-Expert Member
- Oct 28, 2013
- 302
- 67

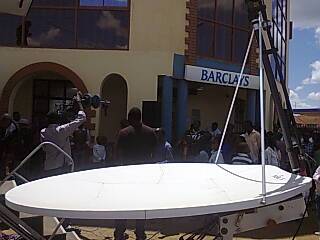

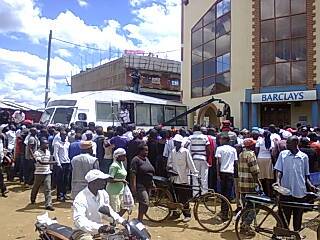

Had pointed out earlier that K24 did a live show The Switch in my area. I was there primarily not to see Soxxy and the Djs or the dancers but to get a glimpse of the up-link satellite dish. If you are locked on Amos 5 you definitely know that K24 leases a transponder 11075 V 3330 there. One of the technician told me they rent it from Satlink. You can see the K24 action station below surrounded by people.

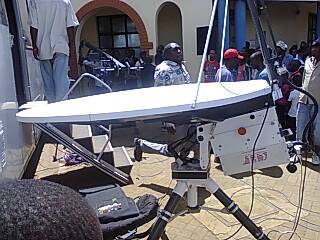

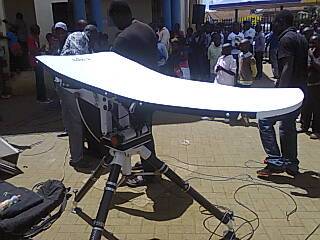

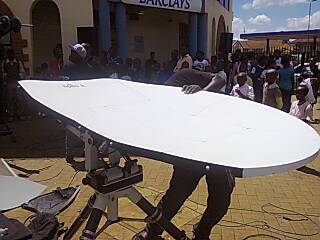

The satellite dish was approximately 1.5metres from my judgement and the reflector was made of Carbon Fiber. It was not a motorized dish and the technician explained why. He told me that the automatic Dishes stations like Citizen TV use usually give errors and to him it is better to use a manually operated dish because you can get to feel the dish and you can set it up faster than a motorized dish. Below you can see snapshots of the dish itself.

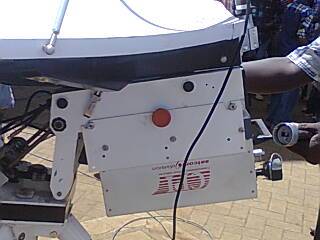

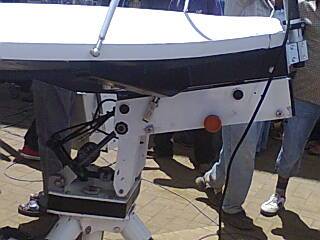

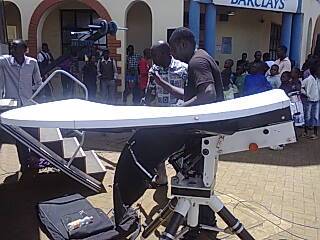

As you can notice the dish an offset type and it is facing upwards, this is not the normal Amos 5 position? Still perplexed by this elevation up to now. Take a look at the Power amplifier and with the Amplifier removed. Every thing on this dish comes out easily, notice the wave guide connector removed on the first pic. Such Power Amplifiers pump out 100 WATTS of forward power, in this case to cover the East-West footprint beamed by Amos 5 Ku band. In comparison the signet transmitter at Limuru pumps out 2.5 Kilowatts of forward power to cover an area inclusive of a radius of 80 Kilometers to cover Nairobi, Kajiado, Naivasha, Ngong, Thika e.t.c.

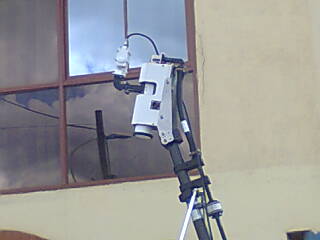

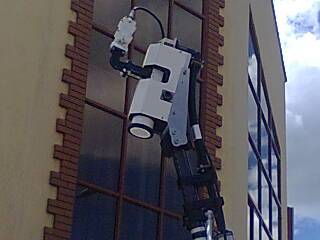

The LNB and wave guide, Notice the normal Black coaxial cable with F connector at the top most left part of the LNB. The other thick black cable running down from the side of the LNB and on the LNB arm is the wave guide primarily used for up-link dishes.
I regret to never have asked what brand type the LNB was but Power Amplifier was branded Starcom so maybe everything was from the same company.

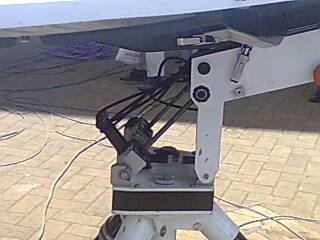

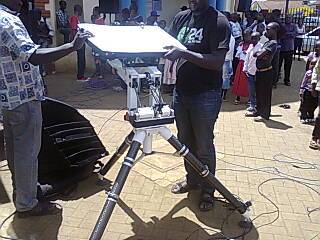

As it was being dismantled I notices that it came off quite easily by lifting some sort of latch at the bottom. All the reflector pieces were then put in that bag you see at the back of the last picture. Also all the pieces were held in place hanging by the last piece on the last picture below too.
There was no piece that was longer than half a meter that comprised the whole dish. Everything fitted on that Bus.
Can anyone tell me why the dish was facing upwards? The question answered by the technician is that it was aimed at Amos 5, nothing more nothing less. Still scratching my head on that issue. My explanation is that maybe they installed the dish upside down because the LNB arm was on the East side and my 65cm dish LNB arm pointed on the same satellite Amos 5 was on the West side.
The satellite dish was approximately 1.5metres from my judgement and the reflector was made of Carbon Fiber. It was not a motorized dish and the technician explained why. He told me that the automatic Dishes stations like Citizen TV use usually give errors and to him it is better to use a manually operated dish because you can get to feel the dish and you can set it up faster than a motorized dish. Below you can see snapshots of the dish itself.
As you can notice the dish an offset type and it is facing upwards, this is not the normal Amos 5 position? Still perplexed by this elevation up to now. Take a look at the Power amplifier and with the Amplifier removed. Every thing on this dish comes out easily, notice the wave guide connector removed on the first pic. Such Power Amplifiers pump out 100 WATTS of forward power, in this case to cover the East-West footprint beamed by Amos 5 Ku band. In comparison the signet transmitter at Limuru pumps out 2.5 Kilowatts of forward power to cover an area inclusive of a radius of 80 Kilometers to cover Nairobi, Kajiado, Naivasha, Ngong, Thika e.t.c.
The LNB and wave guide, Notice the normal Black coaxial cable with F connector at the top most left part of the LNB. The other thick black cable running down from the side of the LNB and on the LNB arm is the wave guide primarily used for up-link dishes.
I regret to never have asked what brand type the LNB was but Power Amplifier was branded Starcom so maybe everything was from the same company.
As it was being dismantled I notices that it came off quite easily by lifting some sort of latch at the bottom. All the reflector pieces were then put in that bag you see at the back of the last picture. Also all the pieces were held in place hanging by the last piece on the last picture below too.
There was no piece that was longer than half a meter that comprised the whole dish. Everything fitted on that Bus.
Can anyone tell me why the dish was facing upwards? The question answered by the technician is that it was aimed at Amos 5, nothing more nothing less. Still scratching my head on that issue. My explanation is that maybe they installed the dish upside down because the LNB arm was on the East side and my 65cm dish LNB arm pointed on the same satellite Amos 5 was on the West side.
Boss, chronic case of ASAS. Check into rehab. I'm sure you thought of all the birds you'd nail with such a contraption.
techdee
JF-Expert Member
- Oct 28, 2013
- 302
- 67
very true my friend, but this contraption can cost up to a quarter million shiilings
permie
JF-Expert Member
- Apr 8, 2013
- 249
- 39
Nice info, I also came across that of citizen and will post the pictures tomorrow
