African Satellite World and Sat Gear

[freq]

Hello all after a very long struggle(nilesat 102 failed attempt) have manage to set up my first dish,feels really great!,have a freesat v7s and a 90cm(3ft) ds*v branded dish am currently getting the same 13 channels no radio when i search on these sats:int902,int 904,nss5,Intelsat 68.5 ;.hehe,correct me with this fta of mine.help ,dont laugh

was setting up 60e int;904,so searching on those others was a by the way.my elevation is 60/70(scale is approx).lnb skew abt 4 oclock(looking from lnb to dishreflector).lnb is ds*v packed one,elsat one i think

my signal intensity is 90% signal quality 72%.

THE STRANGE CHANNEL LIST:
1.VIRTUAL FOOTBALL 8.TPA2
2.LUCKY BALL 9.TPA RTPO4
3.WGB G FTBLL 10.WGB GLOBAL DOG
4.WGB G-KENO 11.DOG RACING
5.CHAMPION TV 12.DIRECT STADE(seems live cctv)CRACKING SOUND
6.ASHGOLD FAN TV 13.WGB GLOBAL FOOTBALL
7.TPA1

Champion TV, Ashgold fan TV & TPA 1,2 are on Yamal 402 55°e.



[Aexmtk]

Champion TV, Ashgold fan TV & TPA 1,2 are on Yamal 402 55°e.

i have just found out ,i think my problem is elevation am using the nut to approximate atleast ni sat nimetap,🙂



[Vicwa]

Hi all,

Has anyone tracked and hit eeee? what's the dish size required in Kenya msa

Mah you're an old guide in this forum, twice you had asked the same question and I answered you through pm. That covers Afro beam, the big brother is watching. Penye kuku wengi usimwage mtama. Check pm.



[essao]

Hello all after a very long struggle(nilesat 102 failed attempt) have manage to set up my first dish,feels really great!,have a freesat v7s and a 90cm(3ft) ds*v branded dish am currently getting the same 13 channels no radio when i search on these sats:int902,int 904,nss5,Intelsat 68.5 ;.hehe,correct me with this fta of mine.help ,dont laugh

was setting up 60e int;904,so searching on those others was a by the way.my elevation is 60/70(scale is approx).lnb skew abt 4 oclock(looking from lnb to dishreflector).lnb is ds*v packed one,elsat one i think

my signal intensity is 90% signal quality 72%.

THE STRANGE CHANNEL LIST:
1.VIRTUAL FOOTBALL 8.TPA2
2.LUCKY BALL 9.TPA RTPO4
3.WGB G FTBLL 10.WGB GLOBAL DOG
4.WGB G-KENO 11.DOG RACING
5.CHAMPION TV 12.DIRECT STADE(seems live cctv)CRACKING SOUND
6.ASHGOLD FAN TV 13.WGB GLOBAL FOOTBALL
7.TPA1

At this juncture I feel duty bound to drop my six-pence advice. FTA using 90 cm is a pain in the a**.How do i know this?i am also on a 90.There is very limited choice with this dish size.I think you begin to enjoy FTA starting from 120(offset) and 180(prime focus),but i guess I like the fitness aspect that comes with hanging on a creaky ladder at 12 midnight.🙂🙂🙂.And with that dish size perhaps you might want to consider getting a more powerful lnb,for example an inverto black



[Mnyash]

Hello all after a very long struggle(nilesat 102 failed attempt) have manage to set up my first dish,feels really great!,have a freesat v7s and a 90cm(3ft) ds*v branded dish am currently getting the same 13 channels no radio when i search on these sats:int902,int 904,nss5,Intelsat 68.5 ;.hehe,correct me with this fta of mine.help ,dont laugh

was setting up 60e int;904,so searching on those others was a by the way.my elevation is 60/70(scale is approx).lnb skew abt 4 oclock(looking from lnb to dishreflector).lnb is ds*v packed one,elsat one i think

my signal intensity is 90% signal quality 72%.

THE STRANGE CHANNEL LIST:
1.VIRTUAL FOOTBALL 8.TPA2
2.LUCKY BALL 9.TPA RTPO4
3.WGB G FTBLL 10.WGB GLOBAL DOG
4.WGB G-KENO 11.DOG RACING
5.CHAMPION TV 12.DIRECT STADE(seems live cctv)CRACKING SOUND
6.ASHGOLD FAN TV 13.WGB GLOBAL FOOTBALL
7.TPA1

You're either on 5E or 7E Aexmtk, I will confirm in the evening which is which 'cause the channels that you have listed are betting channels that I also come across in my set-up on which I have combined the said birds. I however use an Inverto Ultra black with a similar dish to yours. The satellite name on your decoder does not matter, channels from a different satellite can be received depending on the direction that the dish is facing......



[Aexmtk]

At this juncture I feel duty bound to drop my six-pence advice. FTA using 90 cm is a pain in the a**.How do i know this?i am also on a 90.There is very limited choice with this dish size.I think you begin to enjoy FTA starting from 120(offset) and 180(prime focus),but i guess I like the fitness aspect that comes with hanging on a creaky ladder at 12 midnight.🙂🙂🙂.And with that dish size perhaps you might want to consider getting a more powerful lnb,for example an inverto black

what sat are you tunedto currently?



[Aexmtk]

You're either on 5E or 7E Aexmtk, I will confirm in the evening which is which 'cause the channels that you have listed are betting channels that I also come across in my set-up on which I have combined the said birds. I however use an Inverto Ultra black with a similar dish to yours. The satellite name on your decoder does not matter, channels from a different satellite can be received depending on the direction that the dish is facing......

Thank you ,now i will be just blind scanning any sat,I think the betting chnnls are feeds of yamal 402 55E because of " Champion TV, Ashgold fan TV & TPA 1,2 " cause my dish is facing at an azimuth of 88 and the 7E u said is exactly behind my dish about azmth 271



[essao]

what sat are you tunedto currently?

At the moment I am on a combo of 7&8 w.while these are mainly Arabic channels,I get some English movies and cartoons for the kids.but I now want to shift to 52.5 e. a small dish makes you keep on moving,na unajenga misuli kama bonus🙂🙂



[Aexmtk]

At the moment I am on a combo of 7&8 w.while these are mainly Arabic channels,I get some English movies and cartoons for the kids.but I now want to shift to 52.5 e. a small dish makes you keep on moving,na unajenga misuli kama bonus🙂🙂

i did manage to get 68.5e and 57e at exactly same direction with only change in elevation and lnb,57e(9 ethiopian channels)currently am on 68.5e got 100+ christian channels,cant take this,
i need some movies/doc/cartoon or just local(ku),,is there any on the east? let me try 52.5
currently cant access west(dish position)



[RankSat]

i need some movies/doc/cartoon

Try Y1A @52.5E for these.

just local(ku)

Hizi utazipata at 70.5E, Eutelsat 70B.



[essao]

i did manage to get 68.5e and 57e at exactly same direction with only change in elevation and lnb,57e(9 ethiopian channels)currently am on 68.5e got 100+ christian channels,cant take this,
i need some movies/doc/cartoon or just local(ku),,is there any on the east? let me try 52.5
currently cant access west(dish position)

Maybe its just me,but it seems to be a waste of resources using a sat dish to search for local channels.Of course others would disagree.yes 52.5e is a great place to start,though some vital tps are weak for a 90cm. For example I only nabbed 12130h just once and it disappeared.And of course the ones showing football need a bigger dish since they are not on the MENA beam(if am not wrong). Successful sat hunting with a 90 cm almost calls for the precision of a neurosurgeon.The dish stand/base must be completely vertical and the focal lengths,lnb adjustments, azimuths and elevations must be as recommended.



[Aexmtk]

Try Y1A @52.5E for these.



Hizi utazipata at 70.5E, Eutelsat 70B.

thankswill try 70.5 after some time



[Aexmtk]

Maybe its just me,but it seems to be a waste of resources using a sat dish to search for local channels.Of course others would disagree.yes 52.5e is a great place to start,though some vital tps, are weak for a 90cm. For example I only nabbed 12130h just once and it disappeared.And of course the ones showing football need a bigger dish since they are not on the MENA beam(if am not wrong). Successful sat hunting with a 90 cm almost calls for the precision of a neurosurgeon.The dish stand/base must be completely vertical and the focal lengths,lnb adjustments, azimuths and elevations must be as recommended.

i did try 52.2e (lnb moving ,elevation,azmth)to no success,will try when i get a meter being using just dish pointer(direction of the sat line marking roofs it passes,😀wasnt easy) i went back to 68.5, i did find some bearable tv like HI- Impact TV,press tv,shift hd wmusic(test),nb*c* E!, Access tv,france 24(eng),Btv



[essao]

i did try 52.2e (lnb moving ,elevation,azmth)to no success,will try when i get a meter being using just dish pointer(direction of the sat line marking roofs it passes,😀wasnt easy) i went back to 68.5, i did find some bearable tv like HI- Impact TV,press tv,shift hd wmusic(test),nb*c* E!, Access tv,france 24(eng),Btv

ok.though 52.5e isjust abovethe 54.9e where you were watching TPA,Champion and ashgold. what did you get?52.5e is close to 52e(TürkmenÄlem/MonacoSat ) and 51.5e(Belintersat 1/ChinaSat 15).Did you get any of these after raising the dish upwards?I am asking because 52.5e has a strong signal on some tps so i am surprised you didn't get anything.Or maybe it is because you did not use an inverto lnb.



[freq]

i did manage to get 68.5e and 57e at exactly same direction with only change in elevation and lnb,57e(9 ethiopian channels)currently am on 68.5e got 100+ christian channels,cant take this,
i need some movies/doc/cartoon or just local(ku),,is there any on the east? let me try 52.5
currently cant access west(dish position)

Try 70.5e ku b£mba package. But the good stuff on FTA are on Cband.



[freq]

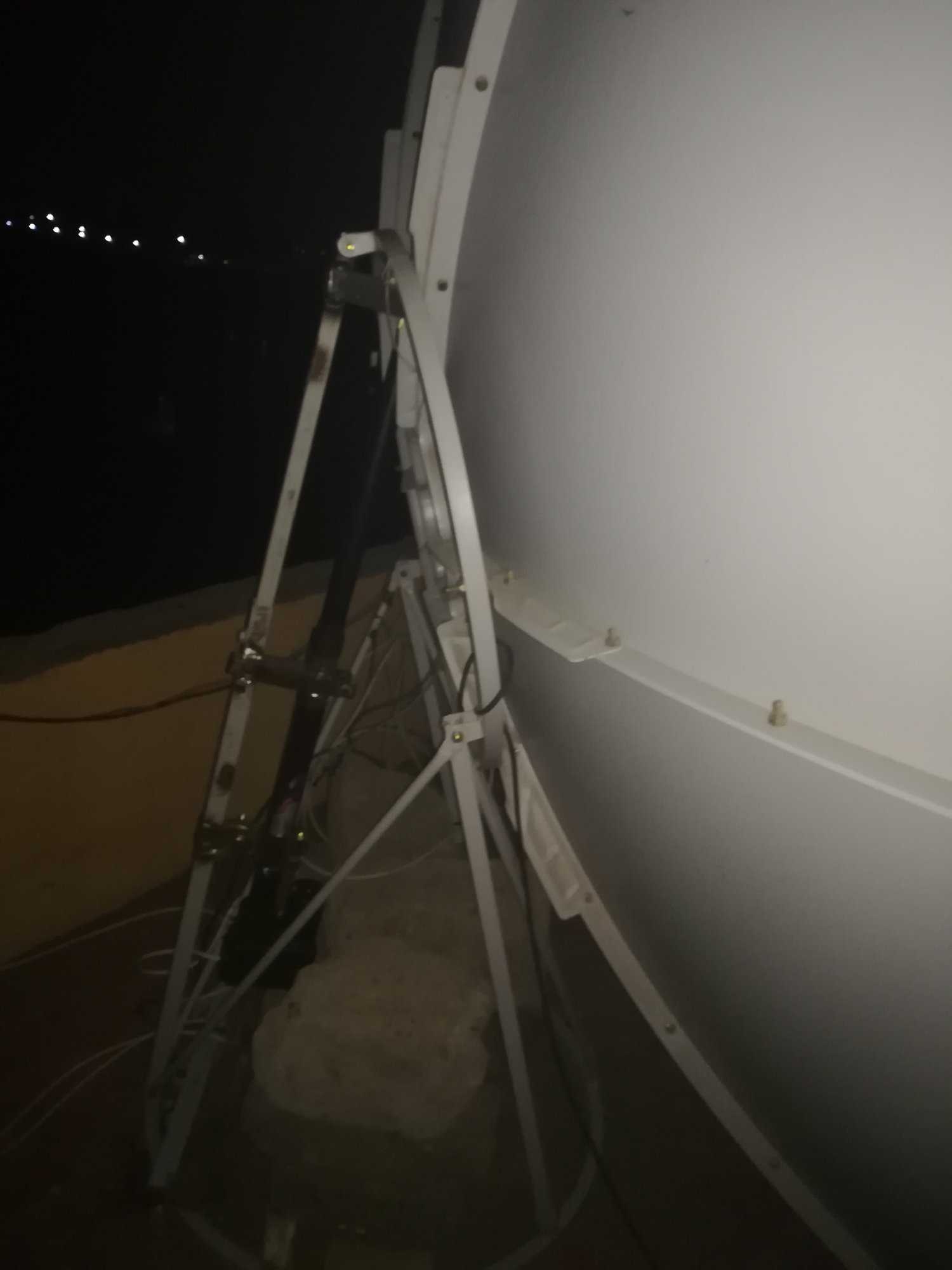

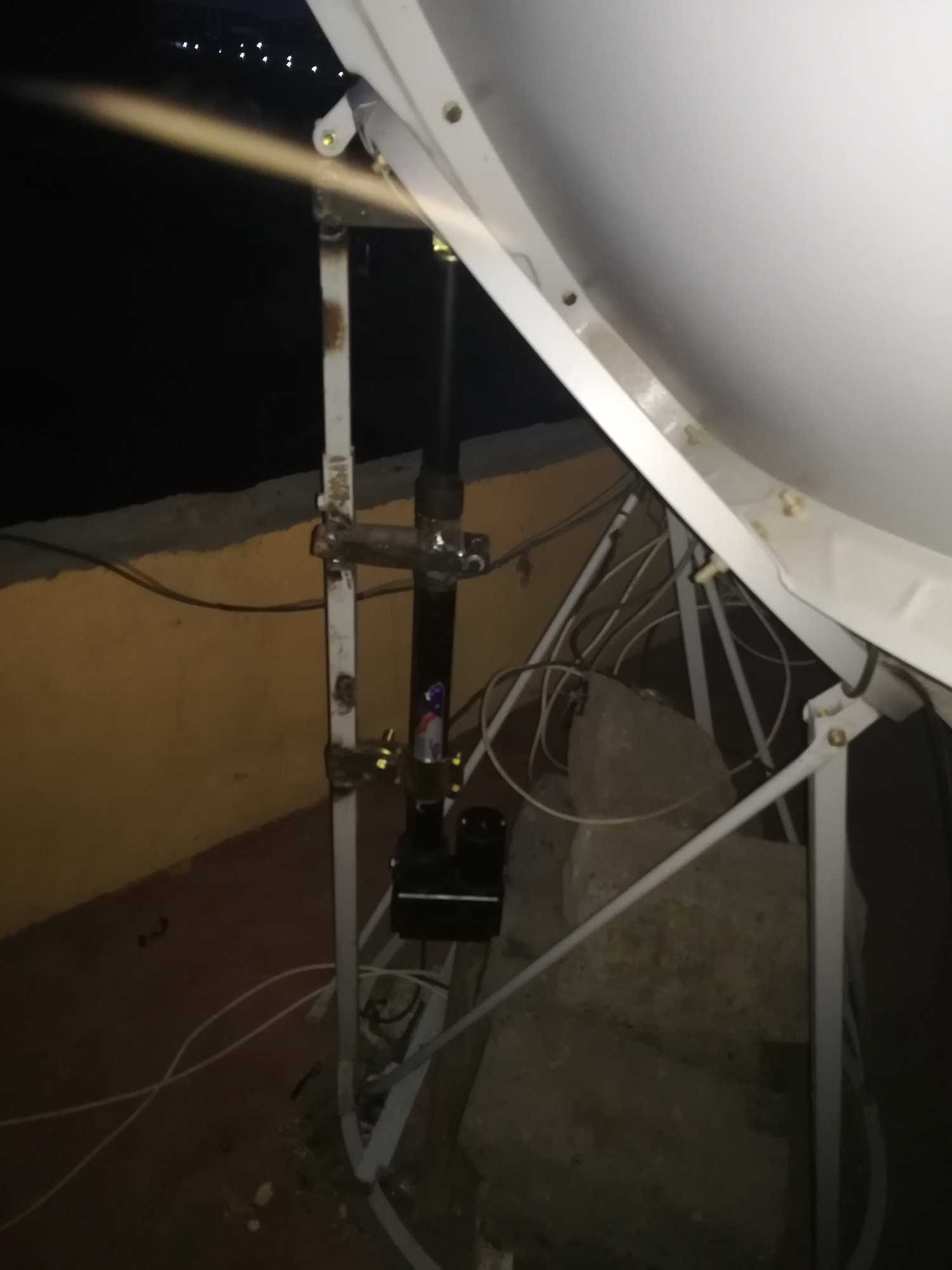

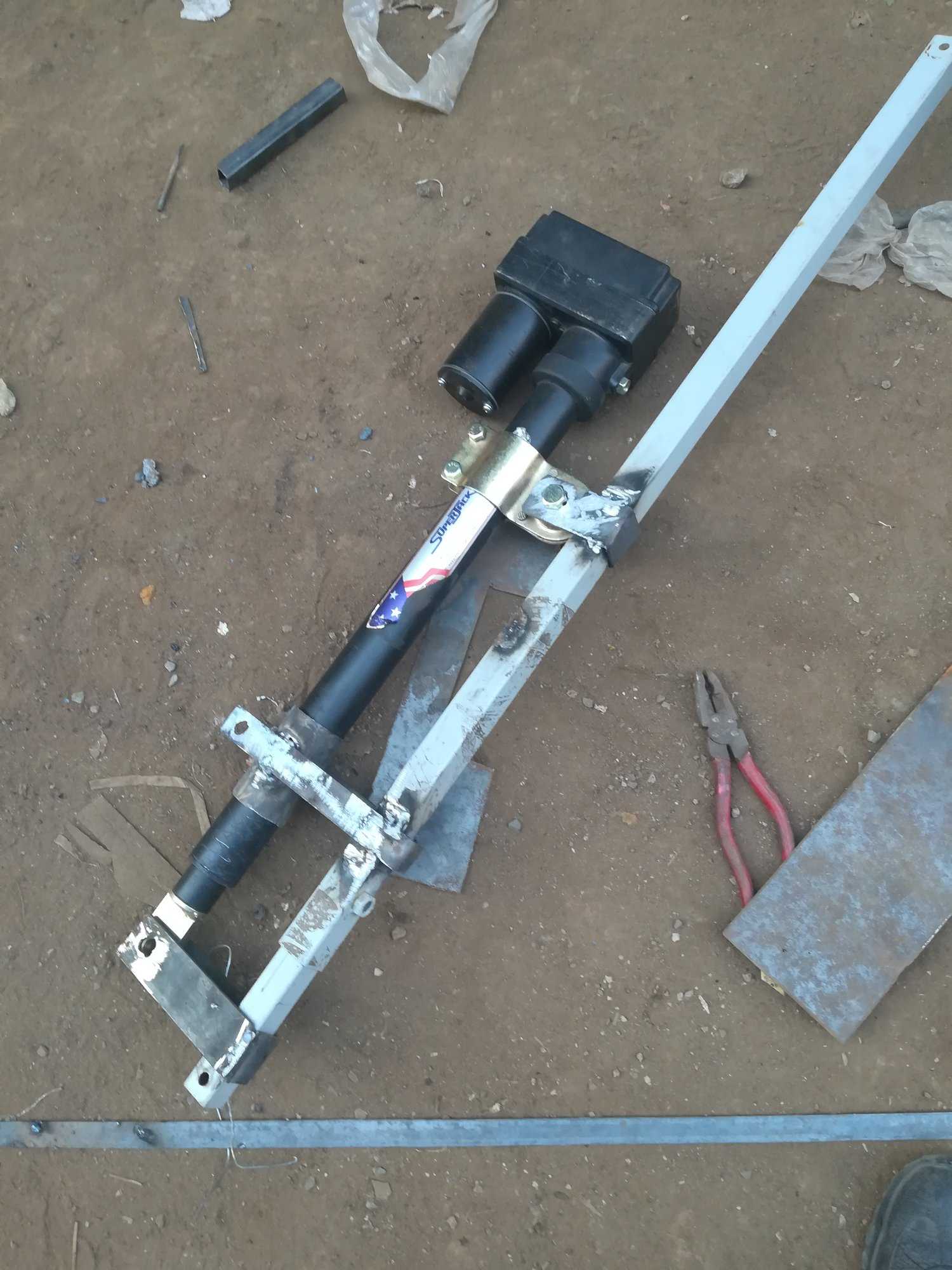

Robotisation of a fixed dish thanks to life on the equator.



[Aexmtk]

ok.though 52.5e isjust abovethe 54.9e where you were watching TPA,Champion and ashgold. what did you get?52.5e is close to 52e(TürkmenÄlem/MonacoSat ) and 51.5e(Belintersat 1/ChinaSat 15).Did you get any of these after raising the dish upwards?I am asking because 52.5e has a strong signal on some tps so i am surprised you didn't get anything.Or maybe it is because you did not use an inverto lnb.

i currently dont posses inverto lnb,using dstv packaged one ,etlsat..i think(no noise indicated only uni.. freq range).i did try elevating gradually to71 and past as 54.9 is at 66,,I did get a tp once after elevating,returning no chnnls even on further tuning,hence tried changing lnb positions then slightly moving sideways both sides.still failed
Did not try 52E or 51.3E



[Aexmtk]

Try 70.5e ku b£mba package. But the good stuff on FTA are on Cband.

will try it .i did see good packages on c bands.
Have heard severally something like a 120cm offset dish is better than a 1.8m pf dish,does it refer to the use of the ku dish for c band?



[freq]

will try it .i did see good packages on c bands.
Have heard severally something like a 120cm offset dish is better than a 1.8m pf dish,does it refer to the use of the ku dish for c band?

The theory is "On Ku, an offset dish will outperform a pf dish of the same size" . The theory largely holds accross various TPs and Sats. A 180cm offset will obviously by far outperform 180cm pf on ku.

From personal experience, a 180cm pf outperformed a 120cm on ku. Note the difference in sizes.



[GITHS]

Robotisation of a fixed dish thanks to life on the equator.

View attachment 860872View attachment 860873View attachment 860874

What's the length of actuator and pliz if you can post the lnb set up
