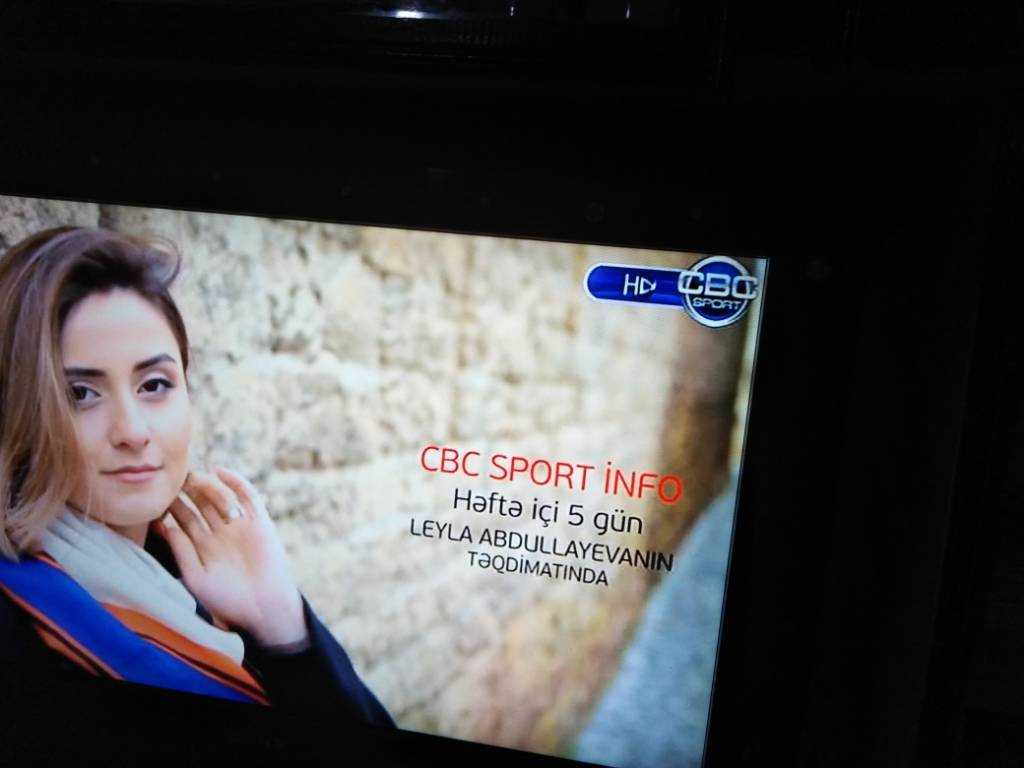

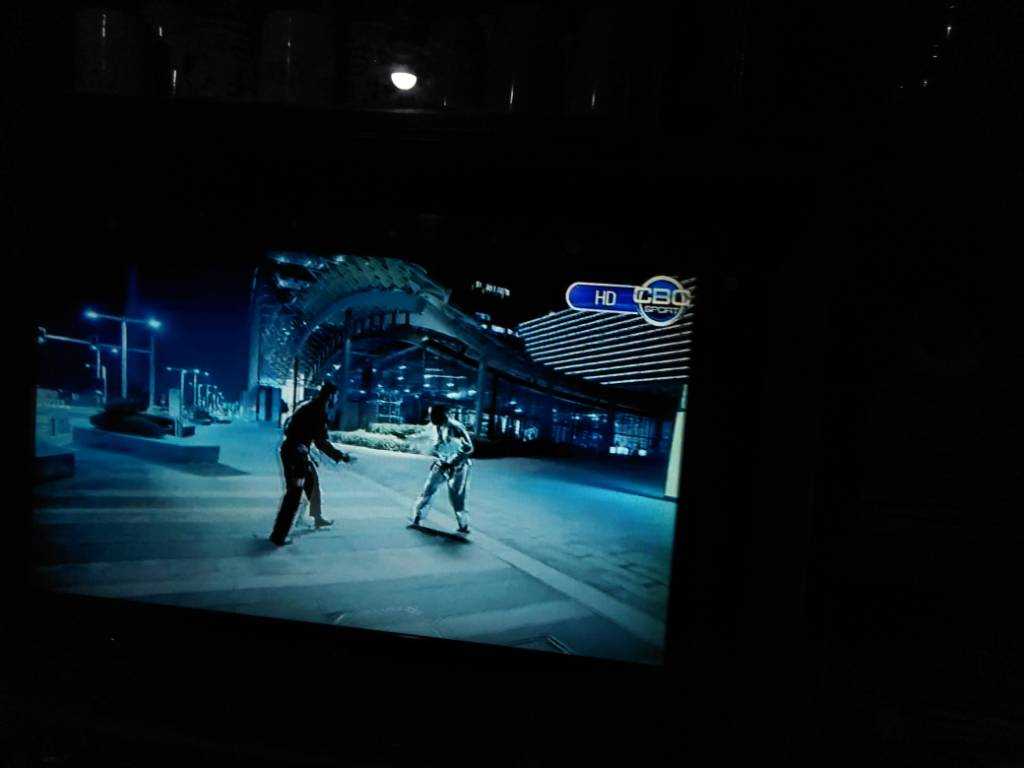

CBC View attachment 1330244View attachment 1330245View attachment 1330246
Sent using Jamii Forums mobile app
Ignore Pic 3,a sleep of the thumb.
This must be 45e, home 4 star package. 90cm in EA. But not english speaking.Competency Based Curriculum? Which sat, need for 'kiss' and dish size?
Which satelite can i track from the same ...aposte 75 !!Yes but most of them are locked.
Who have ever seen or used this decoder
MEELO+ Turbo
Main Features:
Standard: 1080P FULL HD DVB-S2&T2&C
MEPG:H265 / HEVC-Support (1080p @60fps),SD&HD-compatible/MPEG-2/MPEG4 /H.264
H.265/HEVC/AVC;
Supported AVS+
Supported
OSD Language:
Auto Languager seletion:English German French Portuguese Spanish Italian and so on
Linux OS:
TF:Micro SD,You can easily connect an SD device,to record,Pause and playback
USB:Double USB (In Back Panel and Front Panel),High speed USB 2.0
ETHERNET:10/100Mbit Ethernet connection, Support youtube and network media, CCCAM,Wireless Network with connected Miracle WIFI adapter
CAS:1×Smartcard readers
Hard-drive and recording:
2× USB 2.0(1×Front and 1×Rear),You can easily connect an USB device,to record,Pause and playback
display:7 Segment - 4 Digits Display (White)
PIP:PIP(picture in Picture)at the same transponder
HD 1080P:HDMI-connection with Full HD 1080P
EPG:Advanced EPG(Program Guide) Supported EPG recording/playback
Channel Search:Channel search in automatic, manual and network search
Parental Ctrl:Parental control for channels
Easy Menu:Plug and Play installation, with an ease to use Menu System
Ⅳ.Electric Performance
1.Main Chip Sets
Flash Memory:256MB NAND Flash
DDR3 Memory:512MB DDR Memory
CPU;BCM 73625, 2x750 Mhz / 2000 DMIPS
Demodulator IC:Integration in the main control chip
2.DVB-S2 Tuner
Input Frequency Range:950MHZ-2150MHZ
Input Impedance:75Ω
RF input Signal LEVEL:-80/-20dBM
Active Ant Power:13/18V DC @ 400mA MAX,Overload Protection
3.DVB-S2 Channel Decoder
Demod standard:DVB-S2 Standard
1–45 Mbaud for DVB-S mode and 2–45 Mbaud for DVB-S2 mode
MPEG Profile Level:H.265/HEVC/AVC/AVS+ Main and Main10 Profile up to 1080p 60fps,VC-1,MPEG2 , MPEG4 Part2, AVC/H264
Demodulation:QPSK, 8PSK
FFT SIZE:2K、8K
Code Rate:QPSK rates 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10; 8PSK rates 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
4.DVB-T/T2/C Channel Decoder
Demod standard:Fully integrated LNA,Tuner,DVB-T2 & DVB-T & DVB-C demodulators
DVB-T2:EN 302 755, Supports all DVB-T2 modes,including:Single and multiple-PLPs;6\7\8MHZ,QPSK,16QPSK,64QPSK,256QPSK
DVB-T:EN 300 744,6/7/8MHZ,QPSK,16QPSK,64QPSK
DVB-C:EM 302 429,8MHZ,16/32/64/128/256QPSK
5.USB Decode
DVR supporting:Stereo/MONO/Left/Right
Media Supporting:
Dual USB2.0 Port, USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card.
File system:FAT12, FAT16, FAT32, NTFS (only support first partition)
USB2.0 High Speed HOST:DVR with USB HDD, Time shifting with USB HDD
6.Video Decode
Broadcom Video Network with Motion Compensated Video Processing
Video Decoding:MPEG-2,MPEG-4 compatible H.265/HEVC/AVC/AVS+ Main and Main10 Profile up to 1080p 60fps,VC-1,MPEG2 , MPEG4 Part2, AVC/H264
Input data rate:2-45 Msymb/s
Video Resolution:480i, 480p, 576i,576p, 720p, 1080i60, 1080p24, 1080p25, 1080p30, 1080p50, and 1080p60 output formats
7.Audio Decode
Audio Decoding:Dolby Digital,MPEG-4(AAC-HE) MPEG-1/2/3
Sound Mode:LEFT/RIGHT/STEREO/MONO
Sampling Frequency:32/4.1/48kHz
8.AV Output[A/V Out (Phone Jack)]
Video Bandwidth:5.5MHz(-3dB)
Video Impedance:75Ω
Video Voltage Level:1.0 Vp-p
Audio Freq. Range:20~20KHz
Audio Impedance:600Ω
Audio Voltage Level:2V rms(5.6Vp-p)
9.Environment
Input Voltage:AC:110-240V / 50-60Hz ,DC:12V 2A
Consumption:24W Max / 1W Standby (it’s optional by customer’s board)
Temperature:0℃ to +50℃
Humidity:
View attachment 1328872View attachment 1328873
Sent using Jamii Forums mobile app
Hellow
Is it possible to nab nilesat at 7°w from Dar es salaam, Tanzania? What dish size is required?
But decoder which can open it. Forever and Tcam do it
Yes its possible with 6ft and above.
seems like no one is receiving this satellite.ABS-3A @ 3° West, someone share experience of this satellite. especially the south africa beam
Yah same on One HD 4WD.Valencia barca FTA @52e.what a cracking match!
Valencia barca FTA @52e.what a cracking match!
I've tried cbc but bado imelenga.iko on which sat na feq please?CBC View attachment 1330244View attachment 1330245View attachment 1330246
Sent using Jamii Forums mobile app
Ignore Pic 3,a sleep of the thumb.
