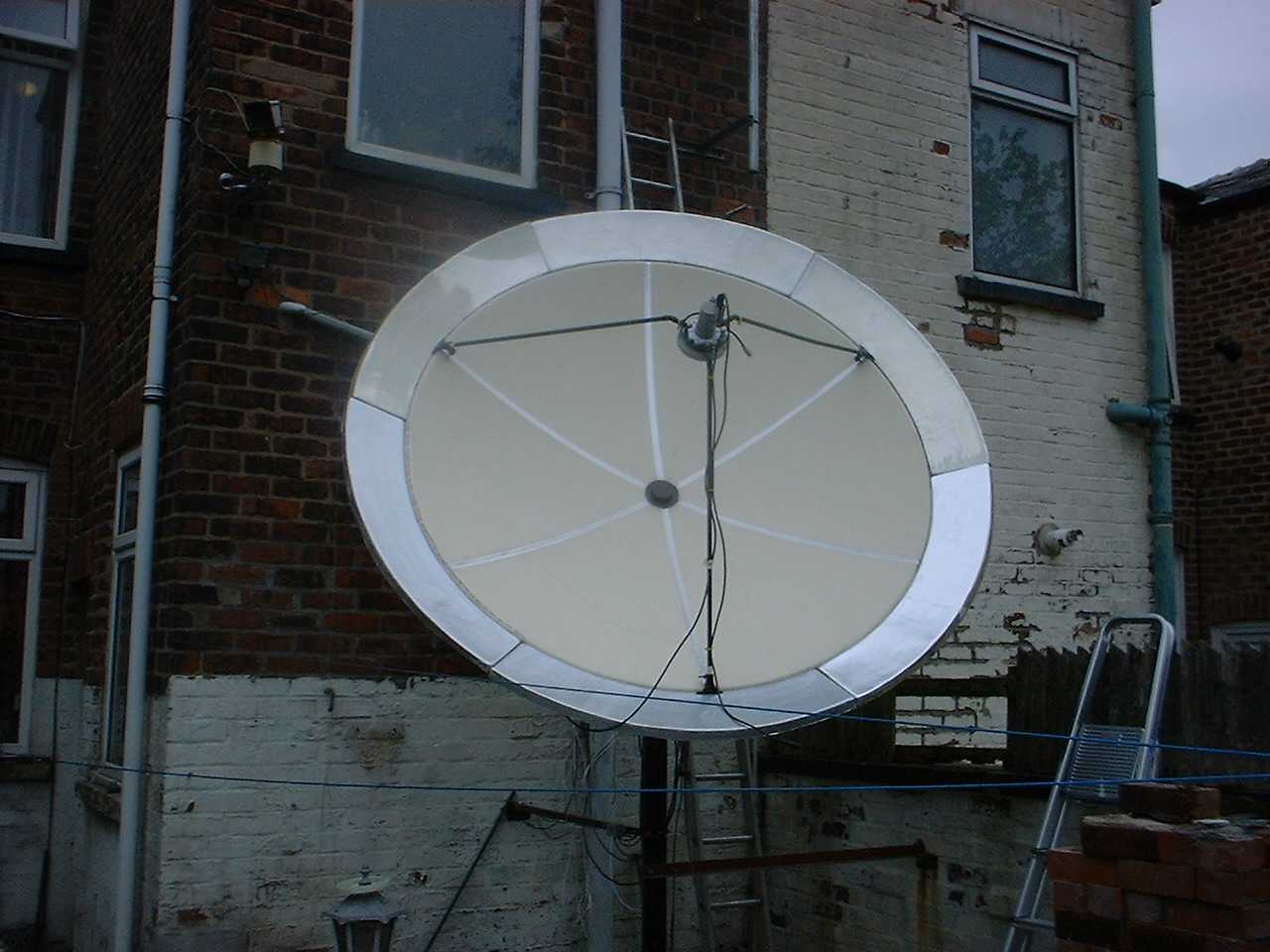

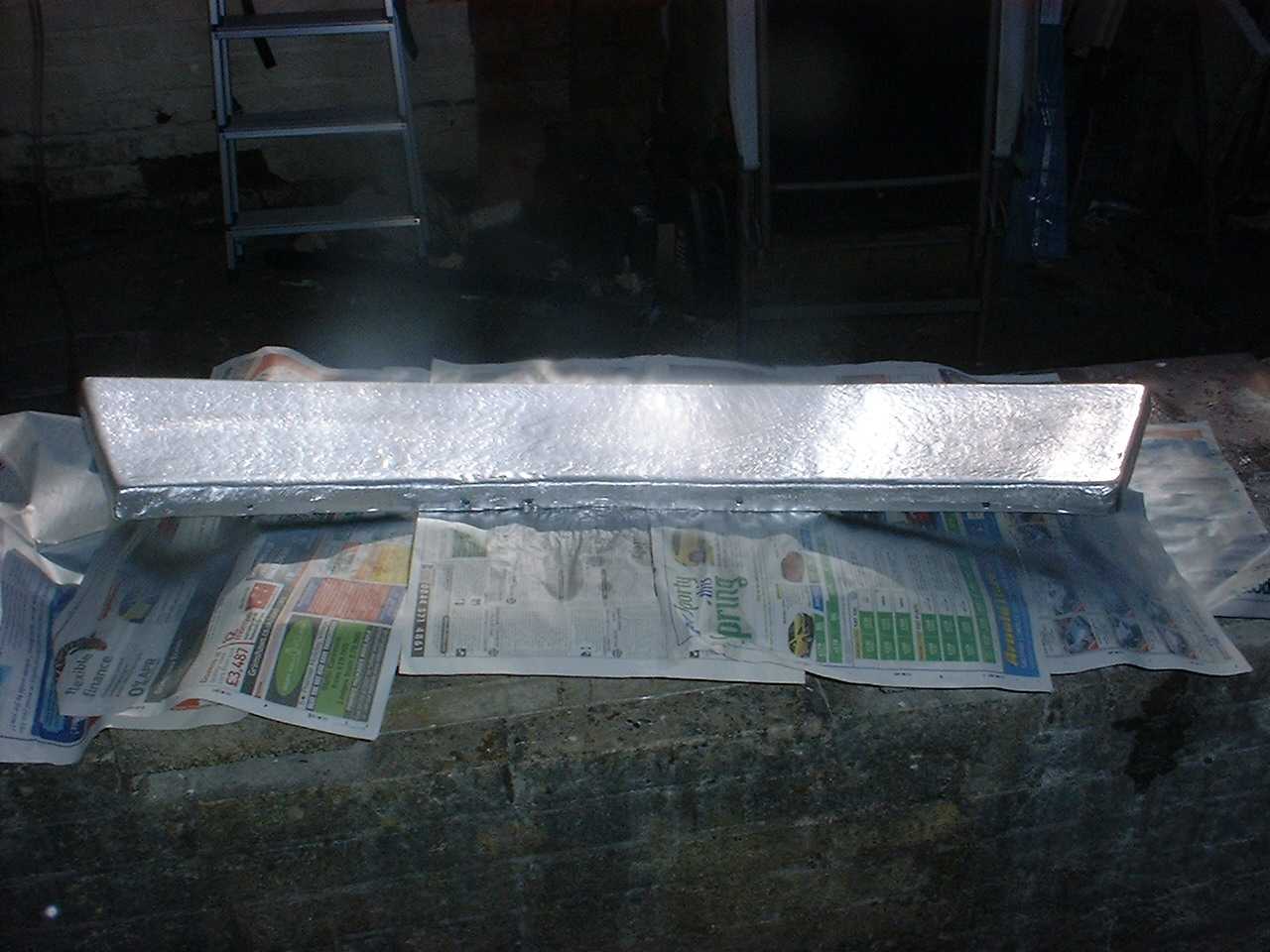

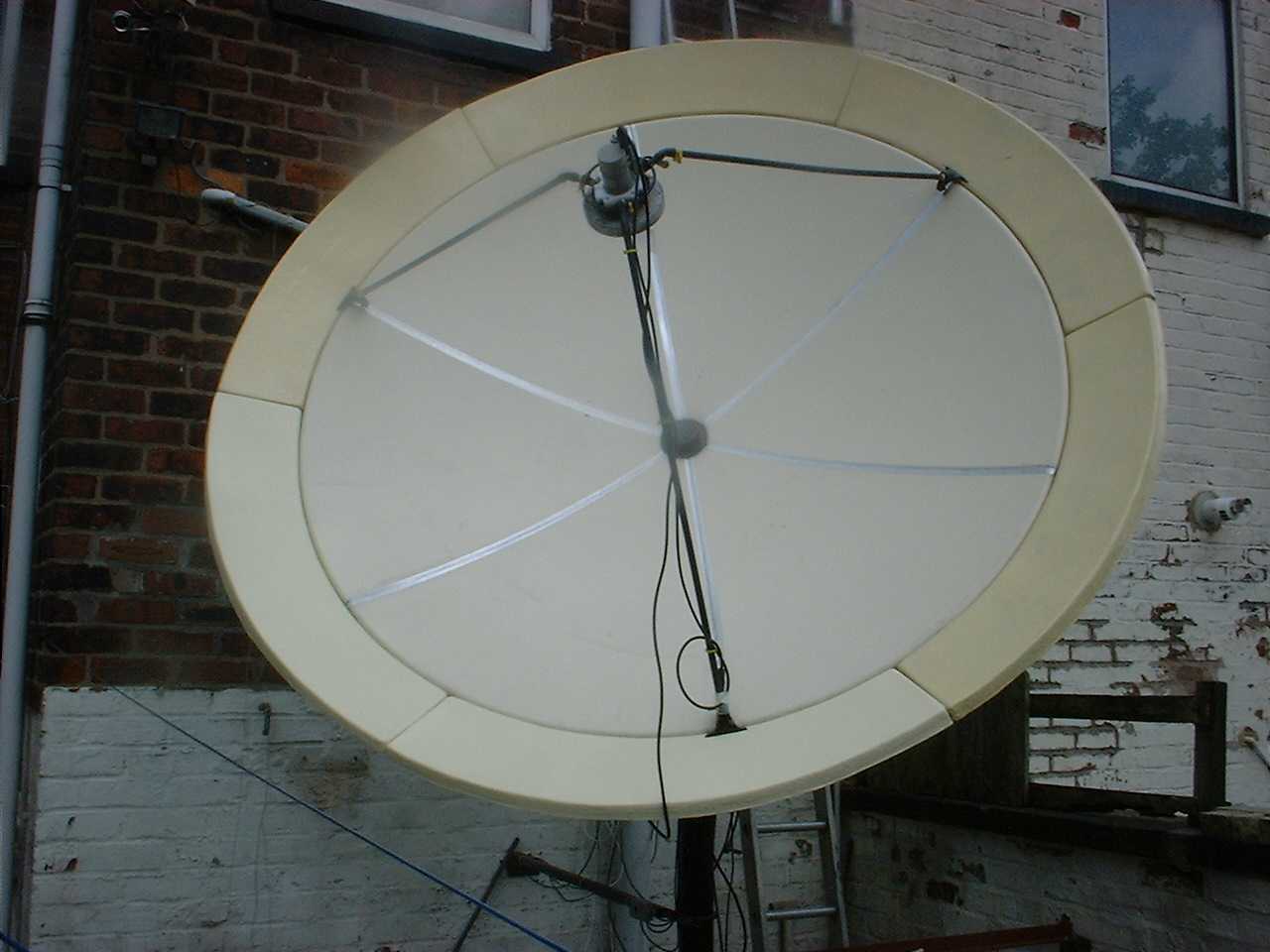

See also fibreglass petal extension

View attachment 1172920View attachment 1172921View attachment 1172922

What about the LNB arms, are their length not extended accordingly to cater for the new focal point?



[freq]

What about the LNB arms, are their length not extended accordingly to cater for the new focal point?

Focal point remains the same.

A pf dish is basically a section of a sphere and the focal point is it's center.. if you complete the absent parts of the sphere which is essentially what is done when building extensions the centre/ focal point doesn't change and the arms remain.



[GITHS]

Focal point remains the same.

A pf dish is basically a section of a sphere and the focal point is it's center.. if you complete the absent parts of the sphere which is essentially what is done when building extensions the centre/ focal point doesn't change and the arms remain.

Thanks again



[Erick90]

My opinion on Star TVView attachment 1152357View attachment 1152358View attachment 1152359View attachment 1152360View attachment 1152361
Pauxis Single solution, V side,
Always nameless

Which receiver are you using



[Mnyash]

Focal point remains the same.

A pf dish is basically a section of a sphere and the focal point is it's center.. if you complete the absent parts of the sphere which is essentially what is done when building extensions the centre/ focal point doesn't change and the arms remain.

Ohhh alright, I now get you. If you continue adding the missing parts you will basically get a ball. Thank you.



[GIDEN]

See also fibreglass petal extension

View attachment 1172920View attachment 1172921View attachment 1172922

The quality of work is on point.



[freq]

Ohhh alright, I now get you. If you continue adding the missing parts you will basically get a ball. Thank you.

Yes a smooth Ball but the centre remains



[GIDEN]

Focal point remains the same.

A pf dish is basically a section of a sphere and the focal point is it's center.. if you complete the absent parts of the sphere which is essentially what is done when building extensions the centre/ focal point doesn't change and the arms remain.

Not true. For the lnb to fully illuminate /"see" the whole reflector you should adjust the focal distance/length.
An unstable tp can stabilize by extending the plate, if the extension is perfectly done you should get/calculate new focal length as even the depth changes.



[freq]

Not true. For the lnb to fully illuminate /"see" the whole reflector you should adjust the focal distance/length.
An unstable tp can stabilize by extending the plate, if all is perfect you should get/calculate new focal length.

Haha... Imagine you get your new focal point and build new arms .

BUT remember radio waves reflected by the original sections of the dish (Which you're extending) will converge at the Original focal point... Where they were meant to converge

AND you build a new focal point for your extended parts..

YOU end up with a dish with TWO focal points.. one below the other the a original Focal point and a new focal point for your extensions.

🤩😀😀 powerful dish.



[GIDEN]

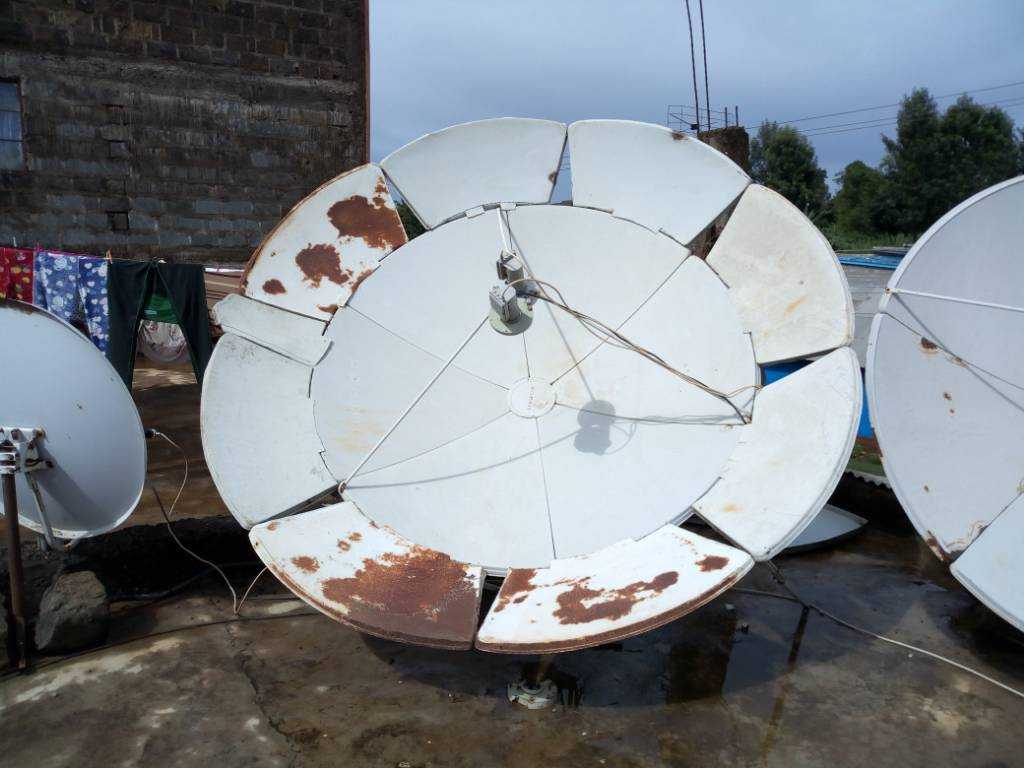

This has been my WIP for sometime. I will adjust the focal length if i get time. The dish performs very slightly better than a 6ft.
1. The additional weight alters the shape.
2. The dish is very deep as the initial curvature shapes the curve of new petals.
3. A very deep dish cannot produce a sharp beam wave so it may have a low efficiency.
4. A deep dish is not good for Ku band.



[GIDEN]

Haha... Imagine you get your new focal point and build new arms .

BUT remember radio waves reflected by the original sections of the dish (Which you're extending) will converge at the Original focal point... Where they were meant to converge

AND you build a new focal point for your extended parts..

YOU end up with a dish with TWO focal points.. one below the other the a original Focal point and a new focal point for your extensions.

powerful dish.

True it has two focuses.



[GIDEN]

Currently the BUD is on 68E and 76E, no Disney while 76 is prime.



[freq]

Currently the BUD is on 68E and 76E, no Disney while 76 is prime.

Ckeck your set up.. 2.4m OK



[freq]

This has been my WIP for sometime. I will adjust the focal length if i get time. The dish performs very slightly better than a 6ft.
1. The additional weight alters the shape.
2. The dish is very deep as the initial curvature shapes the curve of new petals.
3. A very deep dish cannot produce a sharp beam wave so it may have a low efficiency.
4. A deep dish is not good for Ku band.View attachment 1173568

A little problem you have over there is each and every extension seems to have their own curvature profile and thus collecting reflections at their own little Focal points around the main focal point..

You may improve performance by creating a single continuous extension curvature around the original rim albeit in parts



[freq]

"COSAFA" Cup feed at 55e Ku..



[Mnyash]

Yes a smooth Ball but the centre remains

True!



[freq]

If you're at 7W make sure youve got 'Mix Hollywood"
Better movie programming than MBCs



[Aaaaarrghhh]

Nikama Jeshi wameenda ki Arq ...... sad.



[X-PONDER]

Which receiver are you using

Starsat 2000 extreme HD



[freq]

Nikama Jeshi wameenda ki Arq ...... sad.

It said that ARQ never went missing... They just reduced the signal strength to a level you'd need a 12ft to receive it..
