Ras Kush · Dec 12, 2017

Ras Kush said:
Munyaga, I use a very old 6ft. [heavy gauge] dish on the Eastern arc but in order to hit green on NSS12 @57 e, the trick lies in the di-electric plate. LNB is SuperMax vh777 @skew 2O'clock, di-electric is inserted in a Vertical position.

Under normal circumstances, almost all tps will pop-up but to hit green on the stubborn tp 4095h/ 30000 requires a special 35mm on the mark di-electric plate made from at least 7mm thick floor tile. I rarely use the ready made plates.

The SuperMax vh777 is a Secondary LNB, the di-electric plate is pushed all the way inside the throat up to the opening of the LNB on the mark. 4095h/ 30000 pops-up on Strong srt4950h with Signal: 58% & Quality: 32%/39%.

Initially this LNB position also hit green on Fana TV tp 3660h/ 1665 and Walta TV Test Transmission tp 3674h/ 3331.

freq said:
2 O'clock position from behind the dish right? And by 35mm did you mean the inwards length?

Actually 2 O'clock skew while standing in front of the dish, whilst behind the dish the skew is @ 10 O'clock.

Basically the LNB F-Connector should be @ 12 O'clock mark and the di-electric plate should be placed in a Vertical position. The 35mm width is the measurement along the internal grooves of the LNB.

I have attached an LNB BelinterSAT 1 below NSS12 but the di-electric plate now measures about 60mm. Roughly 25mm inside the LNB with 35mm hanging out.

This allows both the Italian package, Challenger TV & KFS TV to pop-up with stability.

Ras Kush · Dec 12, 2017

GIDEN said:
I also use an old 6ft and it flows in smoothly.

Hi Giden, for some strange reason and for the first time my srt4950h keeps booting randomly with the latest patch s\w v.4.21p any pointers.

Msuleimani · Dec 13, 2017

Add me WhatsApp+254712900400

Msuleimani · Dec 13, 2017

Is asiasat 105e receivable in Nairobi please help with strongest tp can someone come to my rescue

freq · Dec 13, 2017

GITHS said:
Please if possible post a photo of the dielectric plate and the home made one

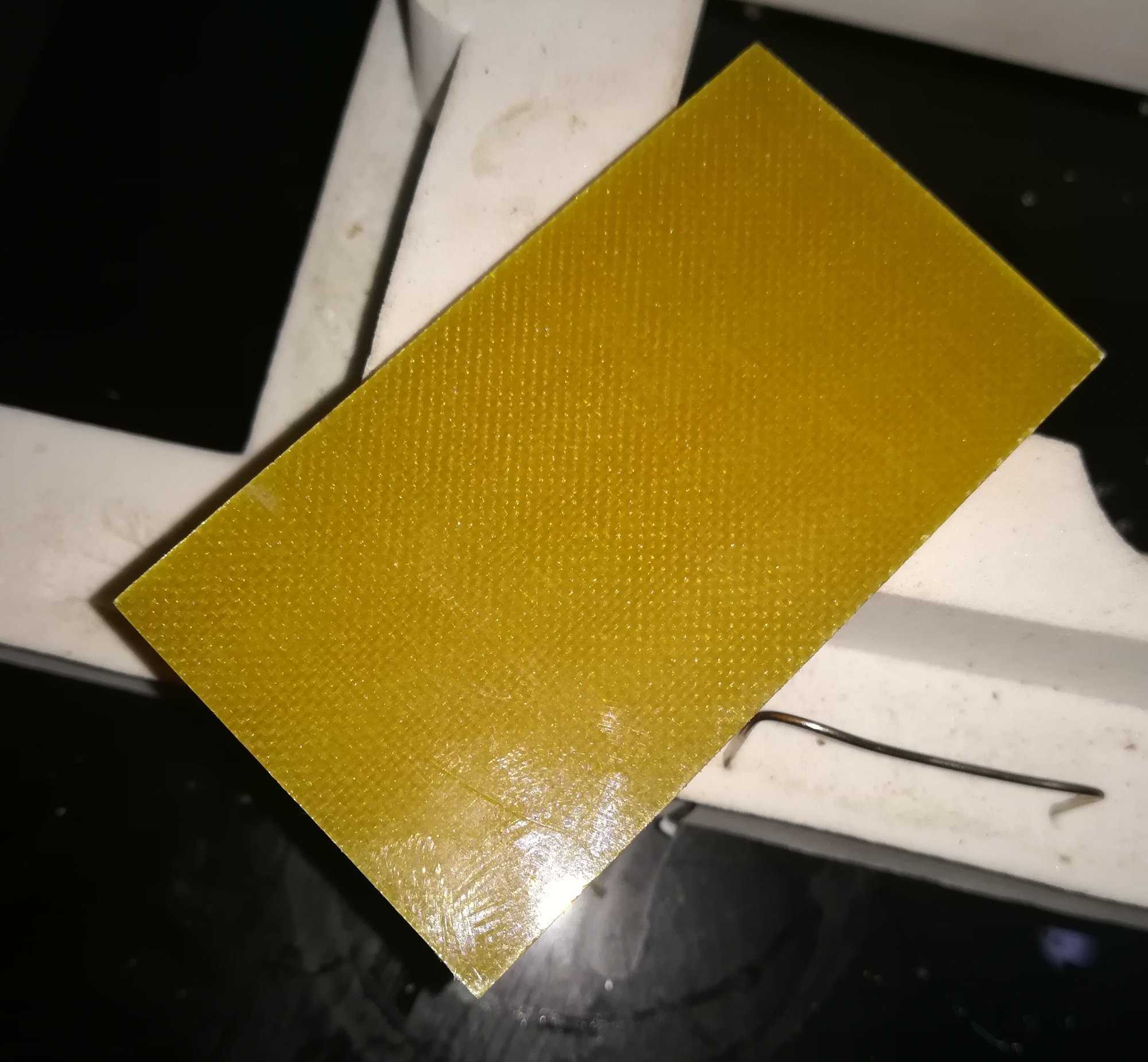

This is a manufactured dielectric plate. The homemade one is cut from a floor tile or a heavy plastic slab. Also read somewhere that glass works

GIDEN · Dec 13, 2017

Ras Kush said:
Hi Giden, for some strange reason and for the first time my srt4950h keeps booting randomly with the latest patch s\w v.4.21p any pointers.

Either use Rs232 to reflash software or hard re-install using flash drive

GIDEN · Dec 13, 2017

Ras Kush said:
Hi Giden, for some strange reason and for the first time my srt4950h keeps booting randomly with the latest patch s\w v.4.21p any pointers.

SATELLITE UPDATE: REVIVING OF ALL SRT4950'S RECEIVERS

Preferably use stock firmware to "revive" then install latest patch.

freq · Dec 13, 2017

Ras Kush said:
Actually 2 O'clock skew while standing in front of the dish, whilst behind the dish the skew is @ 10 O'clock.

Basically the LNB F-Connector should be @ 12 O'clock mark and the di-electric plate should be placed in a Vertical position. The 35mm width is the measurement along the internal grooves of the LNB.

I have attached an LNB BelinterSAT 1 below NSS12 but the di-electric plate now measures about 60mm. Roughly 25mm inside the LNB with 35mm hanging out.

This allows both the Italian package, Challenger TV & KFS TV to pop-up with stability.

Thanks Ras Kush. Would you mind posting a pic I want to see how you have succeeded in combining the two sats

Mnyash · Dec 13, 2017

Ras Kush said:
Munyaga, I use a very old 6ft. [heavy gauge] dish on the Eastern arc but in order to hit green on NSS12 @57 e, the trick lies in the di-electric plate. LNB is SuperMax vh777 @skew 2O'clock, di-electric is inserted in a Vertical position.

Under normal circumstances, almost all tps will pop-up but to hit green on the stubborn tp 4095h/ 30000 requires a special 35mm on the mark di-electric plate made from at least 7mm thick floor tile. I rarely use the ready made plates.

The SuperMax vh777 is a Secondary LNB, the di-electric plate is pushed all the way inside the throat up to the opening of the LNB on the mark. 4095h/ 30000 pops-up on Strong srt4950h with Signal: 58% & Quality: 32%/39%.

Initially this LNB position also hit green on Fana TV tp 3660h/ 1665 and Walta TV Test Transmission tp 3674h/ 3331.

Alright Ras Kush, thanks for the information though I suspect that that Quality may not be watchable on my 4922D, maybe on the V7 Combo cause 4950Hs tuner is a bit sensitive than that of the 4922D.

When I delve into the C world I will surely request for more info on tile biscuits. Is it the ceramic tiles that you're talking of using here?

freq · Dec 13, 2017

Ras Kush said:
Hi Giden, for some strange reason and for the first time my srt4950h keeps booting randomly with the latest patch s\w v.4.21p any pointers.

Sounds like Planned Obsolescence. An artificial life time limitation built into most modern electronics to keep you buying

kingdavidtheone · Dec 13, 2017

Whoever know alphabox x6 please help how to edit keys, its not open Sony + michezo 24

GIDEN · Dec 13, 2017

freq said:
Sounds like Planned Obsolescence. An artificial life time limitation built into most modern electronics to keep you buying

That is a simple problem you will solve with that process. Strong decoders don't die easily.

katiklo · Dec 13, 2017

Ras Kush said:
Hi Giden, for some strange reason and for the first time my srt4950h keeps booting randomly with the latest patch s\w v.4.21p any pointers.

The latest patches for strong 4950H,4955 and 4962I seems to have a bug. Hopefully, cros*t will release new version to counter that problem.

freq · Dec 13, 2017

GITHS said:
Please if possible post a photo of the dielectric plate and the home made one

Photos of homemade and town made dielectric plates just get a piece of tile and trim it down to size using a pliers. You can smoothen the ends using a file or by rubbing it against a rough wall

thr3eee · Dec 13, 2017

katiklo said:
The latest patches for strong 4950H,4955 and 4962I seems to have a bug. Hopefully, cros*t will release new version to counter that problem.

You have all the boxes,,[emoji41]

freq · Dec 13, 2017

Ras Kush said:
Actually 2 O'clock skew while standing in front of the dish, whilst behind the dish the skew is @ 10 O'clock.

Basically the LNB F-Connector should be @ 12 O'clock mark and the di-electric plate should be placed in a Vertical position. The 35mm width is the measurement along the internal grooves of the LNB.

I have attached an LNB BelinterSAT 1 below NSS12 but the di-electric plate now measures about 60mm. Roughly 25mm inside the LNB with 35mm hanging out.

This allows both the Italian package, Challenger TV & KFS TV to pop-up with stability.

Sir Ras Kush I've done exactly that but M&TN is still playing hard to get wonder what could be the other trick an not aware of

katiklo · Dec 14, 2017

thr3eee said:
You have all the boxes,,[emoji41]

I own strong 4962I, but i have colleagues who own 4955 and 4950H experiencing the same problem.

X-PONDER · Dec 14, 2017

katiklo said:
I own strong 4962I, but i have colleagues who own 4955 and 4950H experiencing the same problem.

Try downgrading and upgrade again.My 50 h is tops with the latest patch.No issues booting and rebooting

katiklo · Dec 14, 2017

X-PONDER said:
Try downgrading and upgrade again.My 50 h is tops with the latest patch.No issues booting and rebooting

Sp**ts 24 is not working smoothly after updating stb with the latest patch. Its not about booting issue.

GIDEN · Dec 14, 2017

X-PONDER said:
Try downgrading and upgrade again.My 50 h is tops with the latest patch.No issues booting and rebooting

Mine was rebooting in the morning but i tweaked the setup to a stable signal of Q32 on 4950h. The anomaly stopped but i will confirm after viewing for a long time.
