This is what I have said here, unless a paradigm change takes place, it will be foolhardy to think they will force consumers to partake of their services. There's nothing to write home about, really. Asking Kenyans to spend even a single cent more at this time is to say the least ambitious.The three musketeers have the audacity to tell peeps not to buy gotv and startimes boxes.
am having fun reading all the comments on fb. hhahahahahaha, this guys have lost it.
https://www.facebook.com/NTVKenya/photos/a.80240814057.71846.51790559057/10152306074979058/?type=1#

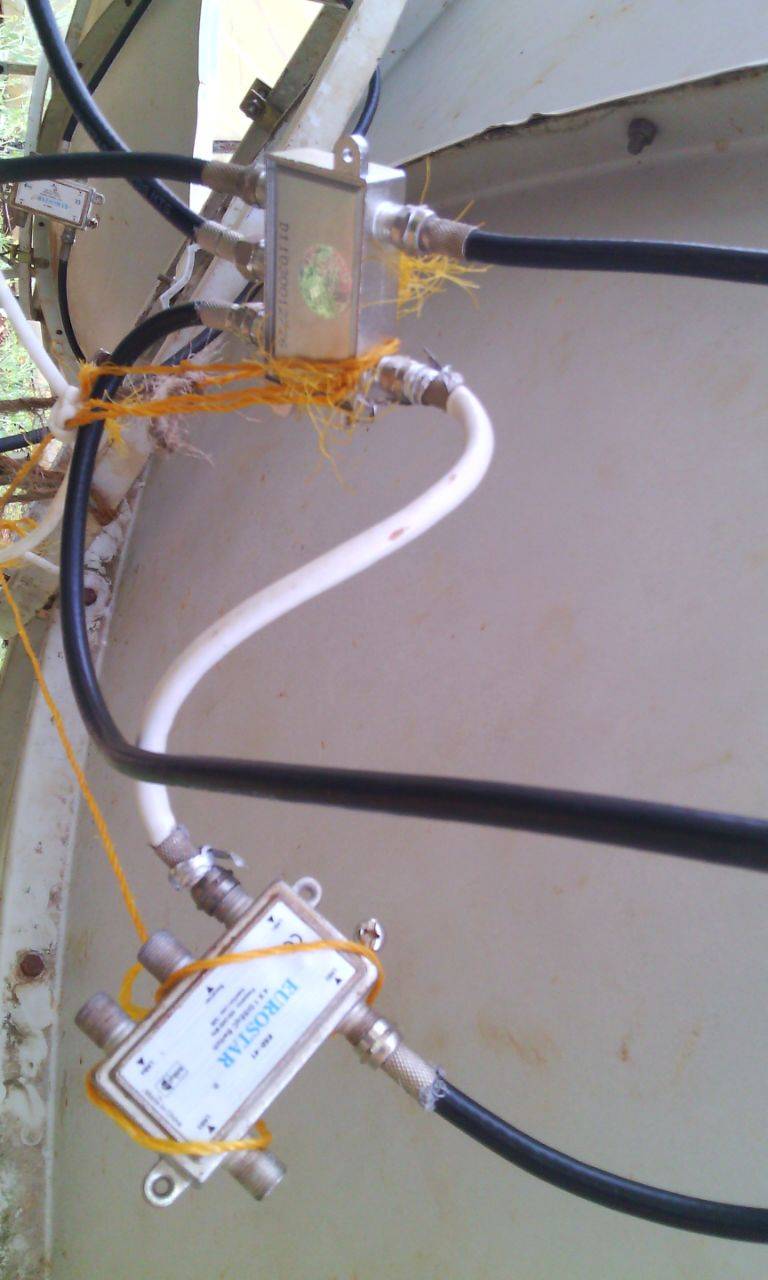

Bubba, in that set-up, please explain the path. How does the connection move from the LNB to the receiver/decoder?
Final Update on Mr. Dongra's 2.4m Offset Dish Fabrication
All,
This is the latest (and final) additional information to the two posts made on (African Satellite World and Sat Gear) on 5[SUP]th[/SUP] January 2015 and ( https://www.jamiiforums.com/tech-gadgets-and-science-forum/388522-african-satellite-world-and-sat-gear-544.html#post11587473 ) on 7[SUP]th[/SUP] January 2015 regarding fabrication of arms and support structure for Mr. Dongra's 2.4m offset Dish.
Two days ago, on Saturday, 3Pm – 9m, Mr. Dongra and I decided to review the arm calculations and follow what ‘mathematics' was giving us. We got pleasant results.
WHAT DOES THEORY SAY?
According to the actual measurements on the dish:
AB = 270 Cm = distance across dish from top to bottom (HEIGHT)
Width = 250Cm
P = 22 Cm= maximum perpendicular distance from the chord to the dish (or DEPTH).
BF = ? = distance of bottom of dish to focal point [i.e., size of LNB arm]
AF = ? = distance of top of dish to focal point
According to our mathematics teacher:
Focal length (LNB arm) = (Width x Width x Width) / (16 x Depth x Height)
In the case of the off-set dish we had:
Focal length = (250 x 250 x 250) / (16 x 22 x 270) = 164.4 Cm
The offset angle ‘theta' is calculated as:
Angle theta = (1/2) x asin(8P/AB) = 0.5 x asin[(8 x 22) / 270] = 20.68 Degrees
Also:
Offset Angle = 20.68 Degrees = asin [(AF - BF) / AB]
We need to calculate the distance AF = distance of top of dish to focal point:
20.68 Degrees = asin [(AF - BF) / AB] = asin [(AF – 165)/270
Making AF the subject of the formula we got: AF = 260.35Cm
PUTTING THE MATHEMATICS TO PRACTICAL USE:
Now it was time to readjust the dish to reflect the above measurements namely:
AF = 260.35 Cm;
BF = 165 Cm = Length of LNB arm
Before today, we had used: AF = 266Cm; BF = 156.5Cm
First we set loose the existing LNB support arms and LNB arm itself.
Next: we adjusted the LNB arm to 165Cm.
Next, to adjust the dish to the top length AF=260Cm correctly, we first measured and marked with masking tape, a 260Cm piece of straight Coaxial cable (you may use a rope too). We then tied one end to the top of the dish, and the other end of 260Cm to the tip of the newly-adjusted LNB arm (165Cm).
With these two lengths (AF and BF) settled, the correct length of LNB support arms to "suspend" the AF and BF lengths correctly as given above was automatic. And this adjusted to 193.5Cm !
This means that although theoretically, mathematics gives us the offset angle to be 20.68 Degrees, there is no need to measure this angle on the dish practically. Just get AF and BF and ensure the LNB arms supporting this are equal in length (193.5Cm)!
FINAL TRACKING ….. ……. And ……….. SCREAMS OF JOY !!
Once this was done at 6Pm, it was time to track again! Need to battle with the wind, fix wind breaks, tweak and tweak until the sun goes down, looking for the torch, and all that …………
…. Then the team made the mighty shout from the roof-top …….. "We can't believe this! Mr. Dongra, are you seeing what I am seeing? History channel at 78% quality! ……….."
Those familiar with tracking this beam from Nairobi will agree that the TP 11617 V 30000 holding History and the two Nat-Geo channels (and a host of music channels) is the weakest on the beam!
After making final touches, we settled for a slightly shorter LNB arm of 162Cm (slightly shorter than what science / formula required). This enabled us to squeeze more gain from the monster dish.
Once this was done, on blind-scanning the SRT4950H, we were lost in excitement! Similar to the frenzy soccer lovers experience on the pitch when their international team wins the European Premier League!!
Believe it all not, the Monster Big-Beautiful-Dish (BBD) together with the Single black Inverto Ultra LNB were downloading all the TPs on the Europe-beam [TPs listed on: Digiturk on Eutelsat 7A at 7.0°E - LyngSat ] at 78% quality and higher!!
Now, persons living further north who use a 90Cm and get all the goodies might say "….. Aaah! …. what's there to celebrate about? ……" But for enthusiasts further south who have been ‘deprived' of some of the 7E goodies (by virtual of them using a 130Cm offset) …….. the rest of the 2015 year is concluded!
Must be the best weekend we ever hand in the year AD2015 !
Finally, between 8 – 9Pm, we concentrated on re-adjusting the other three LNBs (for 7W, 5E and Amos5) since their reception had slightly changed after adjusting the LNB arm and other arms.
Attached below find a photo with new measurements we have used.
Friends, this concludes the story, " Mr. Dongra's 2.4m Offset Dish Fabrication". Thanks for your support in every way.
Regards,
Mr. Dongra and FTA-Nash.
View attachment 219774
Final Update on Mr. Dongras 2.4m Offset Dish Fabrication
All,
This is the latest (and final) additional information to the two posts made on (African Satellite World and Sat Gear) on 5[SUP]th[/SUP] January 2015 and ( https://www.jamiiforums.com/tech-gadgets-and-science-forum/388522-african-satellite-world-and-sat-gear-544.html#post11587473 ) on 7[SUP]th[/SUP] January 2015 regarding fabrication of arms and support structure for Mr. Dongras 2.4m offset Dish.
Two days ago, on Saturday, 3Pm 9m, Mr. Dongra and I decided to review the arm calculations and follow what mathematics was giving us. We got pleasant results.
WHAT DOES THEORY SAY?
According to the actual measurements on the dish:
AB = 270 Cm = distance across dish from top to bottom (HEIGHT)
Width = 250Cm
P = 22 Cm= maximum perpendicular distance from the chord to the dish (or DEPTH).
BF = ? = distance of bottom of dish to focal point [i.e., size of LNB arm]
AF = ? = distance of top of dish to focal point
According to our mathematics teacher:
Focal length (LNB arm) = (Width x Width x Width) / (16 x Depth x Height)
In the case of the off-set dish we had:
Focal length = (250 x 250 x 250) / (16 x 22 x 270) = 164.4 Cm
The offset angle theta is calculated as:
Angle theta = (1/2) x asin(8P/AB) = 0.5 x asin[(8 x 22) / 270] = 20.68 Degrees
Also:
Offset Angle = 20.68 Degrees = asin [(AF - BF) / AB]
We need to calculate the distance AF = distance of top of dish to focal point:
20.68 Degrees = asin [(AF - BF) / AB] = asin [(AF 165)/270
Making AF the subject of the formula we got: AF = 260.35Cm
PUTTING THE MATHEMATICS TO PRACTICAL USE:
Now it was time to readjust the dish to reflect the above measurements namely:
AF = 260.35 Cm;
BF = 165 Cm = Length of LNB arm
Before today, we had used: AF = 266Cm; BF = 156.5Cm
First we set loose the existing LNB support arms and LNB arm itself.
Next: we adjusted the LNB arm to 165Cm.
Next, to adjust the dish to the top length AF=260Cm correctly, we first measured and marked with masking tape, a 260Cm piece of straight Coaxial cable (you may use a rope too). We then tied one end to the top of the dish, and the other end of 260Cm to the tip of the newly-adjusted LNB arm (165Cm).
With these two lengths (AF and BF) settled, the correct length of LNB support arms to suspend the AF and BF lengths correctly as given above was automatic. And this adjusted to 193.5Cm !
This means that although theoretically, mathematics gives us the offset angle to be 20.68 Degrees, there is no need to measure this angle on the dish practically. Just get AF and BF and ensure the LNB arms supporting this are equal in length (193.5Cm)!
FINAL TRACKING .. . And .. SCREAMS OF JOY !!
Once this was done at 6Pm, it was time to track again! Need to battle with the wind, fix wind breaks, tweak and tweak until the sun goes down, looking for the torch, and all that
. Then the team made the mighty shout from the roof-top .. We cant believe this! Mr. Dongra, are you seeing what I am seeing? History channel at 78% quality! ..
Those familiar with tracking this beam from Nairobi will agree that the TP 11617 V 30000 holding History and the two Nat-Geo channels (and a host of music channels) is the weakest on the beam!
After making final touches, we settled for a slightly shorter LNB arm of 162Cm (slightly shorter than what science / formula required). This enabled us to squeeze more gain from the monster dish.
Once this was done, on blind-scanning the SRT4950H, we were lost in excitement! Similar to the frenzy soccer lovers experience on the pitch when their international team wins the European Premier League!!
Believe it all not, the Monster Big-Beautiful-Dish (BBD) together with the Single black Inverto Ultra LNB were downloading all the TPs on the Europe-beam [TPs listed on: Digiturk on Eutelsat 7A at 7.0°E - LyngSat ] at 78% quality and higher!!
Now, persons living further north who use a 90Cm and get all the goodies might say .. Aaah! . whats there to celebrate about? But for enthusiasts further south who have been deprived of some of the 7E goodies (by virtual of them using a 130Cm offset) .. the rest of the 2015 year is concluded!
Must be the best weekend we ever hand in the year AD2015 !
Finally, between 8 9Pm, we concentrated on re-adjusting the other three LNBs (for 7W, 5E and Amos5) since their reception had slightly changed after adjusting the LNB arm and other arms.
Attached below find a photo with new measurements we have used.
Friends, this concludes the story, Mr. Dongras 2.4m Offset Dish Fabrication. Thanks for your support in every way.
Regards,
Mr. Dongra and FTA-Nash.
View attachment 219774
Hey,iam currently testing the box,the only additions on their list so far is france 24,al jazeera,nhk world,justice tv.
The advert of coming soon is car,african movies,blockbuster movies,however no sports channels as advertised may be they will bring them later,as for the picture quality i don't like it may be due to rebroadcasting from pang and signet,loading from start up takes like one minute,but comparing it with other fta dtt decoders of the same price its worth investing in.
Hi Kungu I desperately need some help . I have a 3.6m mesh motorized dish here in Nakuru. I have been trying to get maximum channels but I have failed miserably. I have three lnb two c band and one samsung long neck slim lnb. Which channels can I possibly get from east to west? Where do I place the ku lnb to get the best signal? Please Kungu help me out I would also appreciate some pictures
Congrats, that's true A.S.A.S spiritFinal Update on Mr. Dongra's 2.4m Offset Dish Fabrication All, This is the latest (and final) additional information to the two posts made on (African Satellite World and Sat Gear) on 5[SUP]th[/SUP] January 2015 and ( https://www.jamiiforums.com/tech-gadgets-and-science-forum/388522-african-satellite-world-and-sat-gear-544.html#post11587473 ) on 7[SUP]th[/SUP] January 2015 regarding fabrication of arms and support structure for Mr. Dongra's 2.4m offset Dish. Two days ago, on Saturday, 3Pm – 9m, Mr. Dongra and I decided to review the arm calculations and follow what ‘mathematics' was giving us. We got pleasant results. WHAT DOES THEORY SAY? According to the actual measurements on the dish: AB = 270 Cm = distance across dish from top to bottom (HEIGHT) Width = 250Cm P = 22 Cm= maximum perpendicular distance from the chord to the dish (or DEPTH). BF = ? = distance of bottom of dish to focal point [i.e., size of LNB arm] AF = ? = distance of top of dish to focal point According to our mathematics teacher: Focal length (LNB arm) = (Width x Width x Width) / (16 x Depth x Height) In the case of the off-set dish we had: Focal length = (250 x 250 x 250) / (16 x 22 x 270) = 164.4 Cm The offset angle ‘theta' is calculated as: Angle theta = (1/2) x asin(8P/AB) = 0.5 x asin[(8 x 22) / 270] = 20.68 Degrees Also: Offset Angle = 20.68 Degrees = asin [(AF - BF) / AB] We need to calculate the distance AF = distance of top of dish to focal point: 20.68 Degrees = asin [(AF - BF) / AB] = asin [(AF – 165)/270 Making AF the subject of the formula we got: AF = 260.35Cm PUTTING THE MATHEMATICS TO PRACTICAL USE: Now it was time to readjust the dish to reflect the above measurements namely: AF = 260.35 Cm; BF = 165 Cm = Length of LNB arm Before today, we had used: AF = 266Cm; BF = 156.5Cm First we set loose the existing LNB support arms and LNB arm itself. Next: we adjusted the LNB arm to 165Cm. Next, to adjust the dish to the top length AF=260Cm correctly, we first measured and marked with masking tape, a 260Cm piece of straight Coaxial cable (you may use a rope too). We then tied one end to the top of the dish, and the other end of 260Cm to the tip of the newly-adjusted LNB arm (165Cm). With these two lengths (AF and BF) settled, the correct length of LNB support arms to "suspend" the AF and BF lengths correctly as given above was automatic. And this adjusted to 193.5Cm ! This means that although theoretically, mathematics gives us the offset angle to be 20.68 Degrees, there is no need to measure this angle on the dish practically. Just get AF and BF and ensure the LNB arms supporting this are equal in length (193.5Cm)! FINAL TRACKING ….. ……. And ……….. SCREAMS OF JOY !! Once this was done at 6Pm, it was time to track again! Need to battle with the wind, fix wind breaks, tweak and tweak until the sun goes down, looking for the torch, and all that ………… …. Then the team made the mighty shout from the roof-top …….. "We can't believe this! Mr. Dongra, are you seeing what I am seeing? History channel at 78% quality! ……….." Those familiar with tracking this beam from Nairobi will agree that the TP 11617 V 30000 holding History and the two Nat-Geo channels (and a host of music channels) is the weakest on the beam! After making final touches, we settled for a slightly shorter LNB arm of 162Cm (slightly shorter than what science / formula required). This enabled us to squeeze more gain from the monster dish. Once this was done, on blind-scanning the SRT4950H, we were lost in excitement! Similar to the frenzy soccer lovers experience on the pitch when their international team wins the European Premier League!! Believe it all not, the Monster Big-Beautiful-Dish (BBD) together with the Single black Inverto Ultra LNB were downloading all the TPs on the Europe-beam [TPs listed on: Digiturk on Eutelsat 7A at 7.0°E - LyngSat ] at 78% quality and higher!! Now, persons living further north who use a 90Cm and get all the goodies might say "….. Aaah! …. what's there to celebrate about? ……" But for enthusiasts further south who have been ‘deprived' of some of the 7E goodies (by virtual of them using a 130Cm offset) …….. the rest of the 2015 year is concluded! Must be the best weekend we ever hand in the year AD2015 ! Finally, between 8 – 9Pm, we concentrated on re-adjusting the other three LNBs (for 7W, 5E and Amos5) since their reception had slightly changed after adjusting the LNB arm and other arms. Attached below find a photo with new measurements we have used. Friends, this concludes the story, " Mr. Dongra's 2.4m Offset Dish Fabrication". Thanks for your support in every way. Regards, Mr. Dongra and FTA-Nash. View attachment 219774

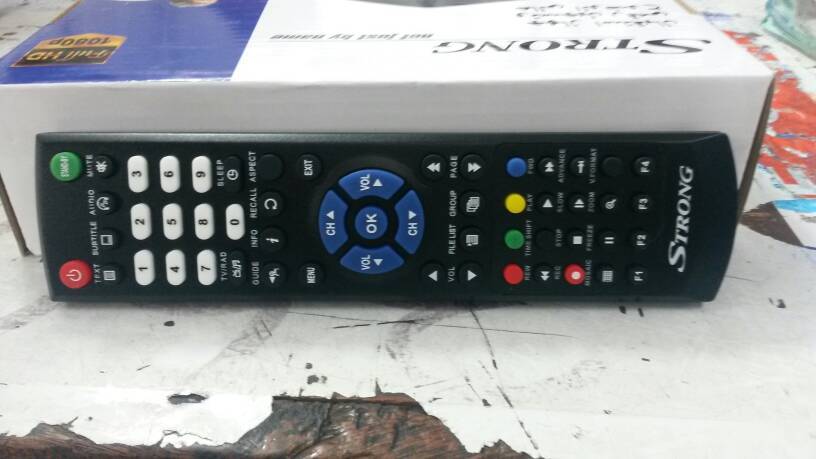

Remote control ya strong 4922 geniune zapatikana Abasheikh Electronic.
Shukran
Bubba,how much?
Hujambo ndugu Mirjangi,
Bei ya strong 4950H.
Shukrani
I was there yesterday and realized you need to go there when you got some time. That way, you will be able to sample a number of them and their prices. Put on your best bargaining foot forward too!Some shops on lithuli are ripping us off. recently I visited a shop and bought strong 4922HD for Ksh 5500. While other seasoned shops are selling at 6500.
Bubba,
Have you sent the photo you promised?
