This is for those docked on 72.1E I need some help, can't seem to lock on any of the two Transponders (3724 L 16073 and 3742 L 13930) even with the Teflon inserted. Mates kindly assist, any special settings to input on the STB .

CC GIDEN and Wessly.



[kogi]

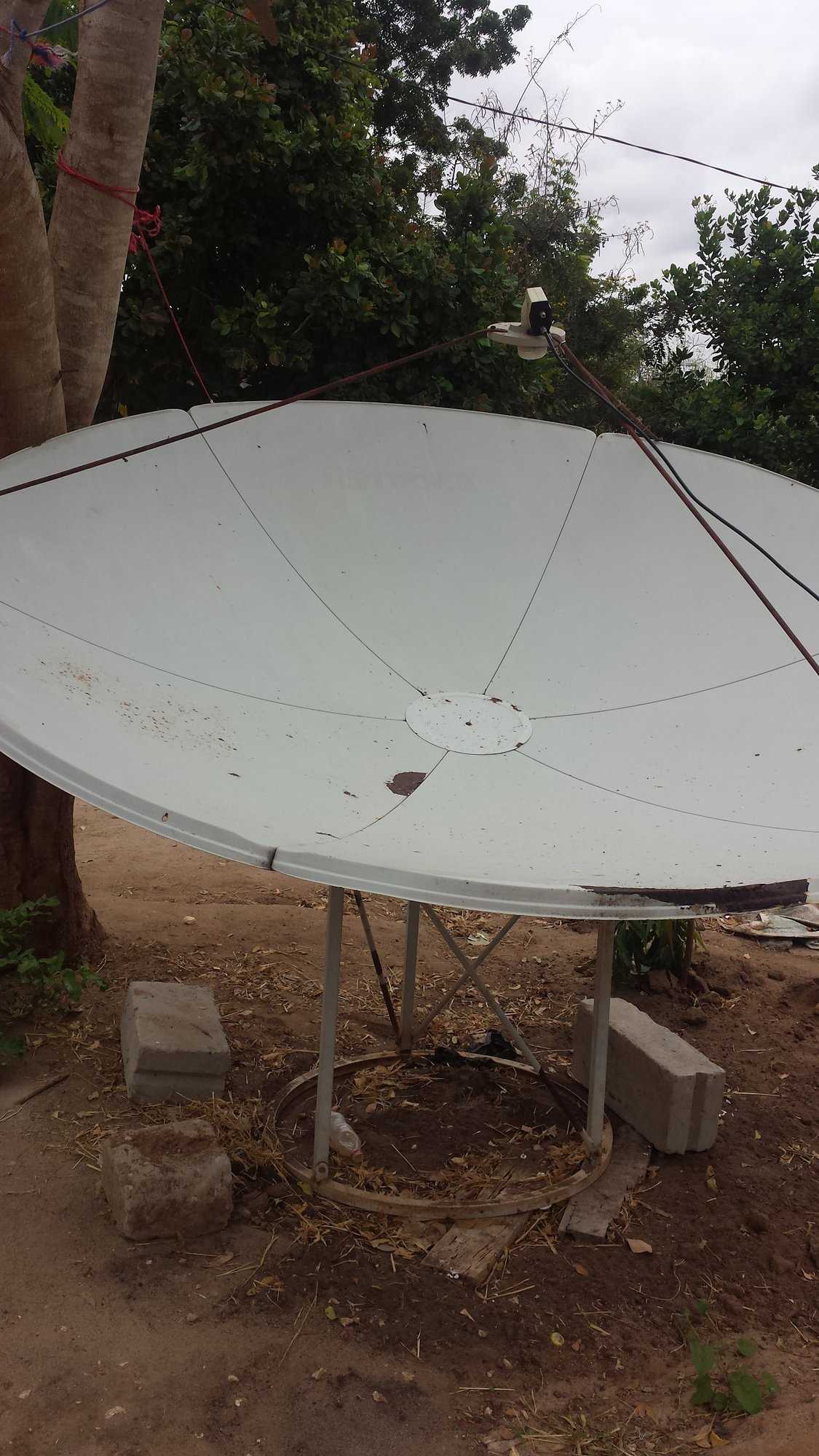

For now I have after I upgraded from 1.8 to 2.4m. Soap opera in English.
Telenovella @69%
GMA @85%
Bwana vicwa do you live in epicentre of ap*. How come you can get this? I have tried a million times with 2.4 pf & can't manage. Yenyewe wewe ni gwiji.



[Vicwa]

Adjust dish stand so that it can be vertical upright (90 degrees) also lnb holder must be almost parallel to the dish.



[Vicwa]

HOW TO FIND LENGTH OF LNB ARM OF A PRIME FOCUS
D = Diametre
F = Focal length (length from centre of dish to the LNB)
d = Depth (of the dish)
D x D = F
16 x d

R = Radius of dish
r = Radius of LNB holder
L = Length of LNB arm
R – r = R1
F – d = H
(R1 x R1) + (H x H) = L squared
L = square root of L squaed

For example, a 6ft(72inches) prime focus dish has a depth of 1ft(12 inches)
The radius of dish = 36 inches , and of lnb holder = 3.25 inches. Calculate :
A. Focal length
B. Length of lnb arm
D = 72
F = ?
d = 12

D x D = F
16 x d
72 x 72 = 27
16 x 12

F = 27
R = 36
r = 3.25
L = ?

R1 = R – r
= 36 – 3.25
= 32.75
H = F – d
= 27 -12
= 15

( R1 x R1) + ( H x H) = L squared
= (32.75 x 32.75) + (15 x 15)
= 1073 + 225
= 1298
L = square root of 1298
L = 36.03 inches



[ndonu]

It seems your skew is wrong please correct it sir.

at last i made it



[bostephen]

Is this site being bombarded with adware/malware ?
... I'm getting alot of interference whenI access JF lately

That's unfortunate! On the mobile app it's okay, no splashes.



[Tolgos]

at last i made it

Enjoy. Viva FTA!



[ndonu]

Hi ASAS mates, after settling @68.5 for this whole period I decided to check 57e to see if all is well;to my surprise I can't nail my favourite s24 with 1.8m. Am worried as August is fast approaching. Any advice?

you can try it, i manage to do it ,from top is 68 then 64.5 then 57 for s24, location dar es salaam qsat 11 and 23



[Kamathig]

Adjust dish stand so that it can be vertical upright (90 degrees) also lnb holder must be almost parallel to the dish.[

Vicwa.

I will appreciate pictures of your 2.4 m when you add Measat as Giden recommends. Which sats r u getting now?



[sebmjomba]

you can try it, i manage to do it ,from top is 68 then 64.5 then 57 for s24, location dar es salaam qsat 11 and 23

Thanks ndonu, indeed all is well. I can't tell where I was going wrong



[ndonu]

Thanks ndonu, indeed all is well. I can't tell where I was going wrong

ok. which other sat do get on your side apart from apst 7, i have 2.4M currently it has only lnb for a7 i want to add others.



[GIDEN]

ok. which other sat do get on your side apart from apst 7, i have 2.4M currently it has only lnb for a7 i want to add others.

Ndonu add Measat as primary then below it add A7



[yako2]

Where can one watch TOUR DE FRANCE cycling on FTA?



[GITAHI]

Where can one watch TOUR DE FRANCE cycling on FTA?

Try TV 5 on Nilesat but the commentary is in French.



[Qyasat]

#Potrayed,
Unless its a tuner sensitivity issue, alphabox x4 was introduced as an alternative Pwr@Vu auto-roll satellite decoder. "alphabox x4" & "alphabox" as a brand name has not been in the market for more than 6 months.

Inverto Black Ultra Single LNB works wonders on 130 cm off-set dish & above. With a simple Stargold Single SG100- I Shape LNB and a 90cm off-set dish you can pull down at least 700 channels on Nilesat 201/ Eutelsat 7West A@7.3°w.

Try by mounting the dish on two inter-crossed planks of wood [6"x1"] and secure dish on ground level if possible as compared to wall mounting.

Software upgrade may not solve your problem above but as a reference point download alphabox x4 software here:
Index of ./Alphabox X4mini & X4 HD/

Would mounting a 90cm offset dish on a very straight Eucalyptus pole compromise signal reception in any way?



[Tolgos]

Would mounting a 90cm offset dish on a very straight Eucalyptus pole compromise signal reception in any way?

That is fine if you are looking for big brother, coz of very strong signal.



[kateka]

#Potrayed,
Unless its a tuner sensitivity issue, alphabox x4 was introduced as an alternative Pwr@Vu auto-roll satellite decoder. "alphabox x4" & "alphabox" as a brand name has not been in the market for more than 6 months.

Inverto Black Ultra Single LNB works wonders on 130 cm off-set dish & above. With a simple Stargold Single SG100- I Shape LNB and a 90cm off-set dish you can pull down at least 700 channels on Nilesat 201/ Eutelsat 7West A@7.3°w.

Try by mounting the dish on two inter-crossed planks of wood [6"x1"] and secure dish on ground level if possible as compared to wall mounting.

Software upgrade may not solve your problem above but as a reference point download alphabox x4 software here:
Index of ./Alphabox X4mini & X4 HD/

Hi Mr Ras Kush, my alphabox x4 hd does not open animal planet channels@ 68.5 even after the new software upgrade, plz help me if this fault is within your control.



[ahmedkaisha]

Hi Mr Ras Kush, my alphabox x4 hd does not open animal planet channels@ 68.5 even after the new software upgrade, plz help me if this fault is within your control.

idd mubarak to everyone.viva fta



[Gich]

at last i made it

It would have been great if you could tell us what you did differently to make it. Remember this is an institution of higher learning with all of us as lecturers and students at the same time.



[Gich]

Try TV 5 on Nilesat but the commentary is in French.

Also on 5e, and yes, le commentaire est en français.
